Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Harmee
-
Dimension(L*W*H):
-
990X310X420MM
-
Weight (KG):
-
35
-
Filling Accuracy:
-
±1%
Quick Details
-
Production Capacity:
-
2000
-
Automatic Grade:
-
semi-automatic
-
Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
Harmee
-
Dimension(L*W*H):
-
990X310X420MM
-
Weight (KG):
-
35
-
Filling Accuracy:
-
±1%
Product Paramenters
|
Name
|
Paste Filling Machine
|
|
Material
|
SS304
|
|
Warranty
|
One Year
|
|
Filling material
|
paste or liquid
|
|
Filling volume
|
5-100ml,30-300ml,100-500ml,100-1000ml,250-2500ml,300-3000ml,500-5000ml
|
|
Keywords
|
filling machine
|
|
Processing
|
Semi Auto Filling
|
|
Machine name
|
YH-500
|
|
Product Keywords
|
cosmetic cream filling machine
|
|
Voltage
|
220v±5v 110v±5v (not include explosion-proof type)
|
|
Power
|
10W (not include explosion-proof type)
|
|
Air pressure
|
0.4-0.6 Mpa
|
|
Filling speed
|
Single Head:10-30 bottles/Min
Double Head:20-60 bottles/Min |
|
filling precision
|
±0.5%-±0.1%
|
PRODUCT SHOW
Details Images
Product Characteristics
Principle:

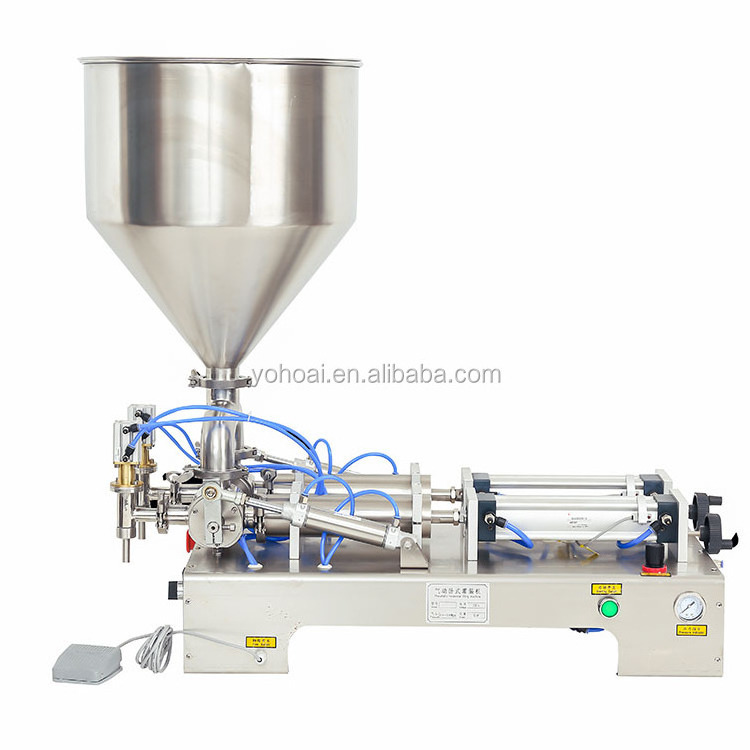

semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.
Characteristic:
1.Reasonable design, compact shape, simple operation, partly adopt the high quality pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the Food grade.
3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.
