Quick Details
-
door qty:
-
two door/four door
-
certification:
-
RoHS,FCC,CE
-
Operation:
-
Via browser/web
-
Security / Encryption:
-
SAM, AES256
-
Enhancement:
-
SD card, USB port, RS485 port
-
support user:
-
100,000, 100,000
-
Storage Temperature:
-
-20℃~+80℃
-
Support Reader Type:
-
Wiegand, RS485, TCP/IP
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
elevator access control system
-
Interface:
-
TCP/IP/WIFI
-
door qty:
-
two door/four door
-
certification:
-
RoHS,FCC,CE
-
Operation:
-
Via browser/web
-
Security / Encryption:
-
SAM, AES256
-
Enhancement:
-
SD card, USB port, RS485 port
-
support user:
-
100,000, 100,000
-
Storage Temperature:
-
-20℃~+80℃
-
Support Reader Type:
-
Wiegand, RS485, TCP/IP
Instruction:
RDM Web Based Access Control System adopting the latest web design technique to develop and is
embedded with web-server engine.
The controller is easy-to-install and its build in browser interface is simple to use so that user do not
required specialize training. It is ideal application for small to large sized commercial buildings.
The intuitive browser based software can perform all access control functions and view the activities.
It can also via the monitor panel direct command the door operation.
Administrator access into the system setting is guided through functional menus, and each menu complete
with all functional items like Door Control Unit, User Management, Access Levels, Weekly Schedules,
Define Holidays, Access Group, etc.
Feature:
User-friendly graphical UI with navigation menu.
2 door base controller.
Stacking module S01 to be a C4 (4-door controller).
Stacking module S02 to be a c2i (2 door integrated IO controller).

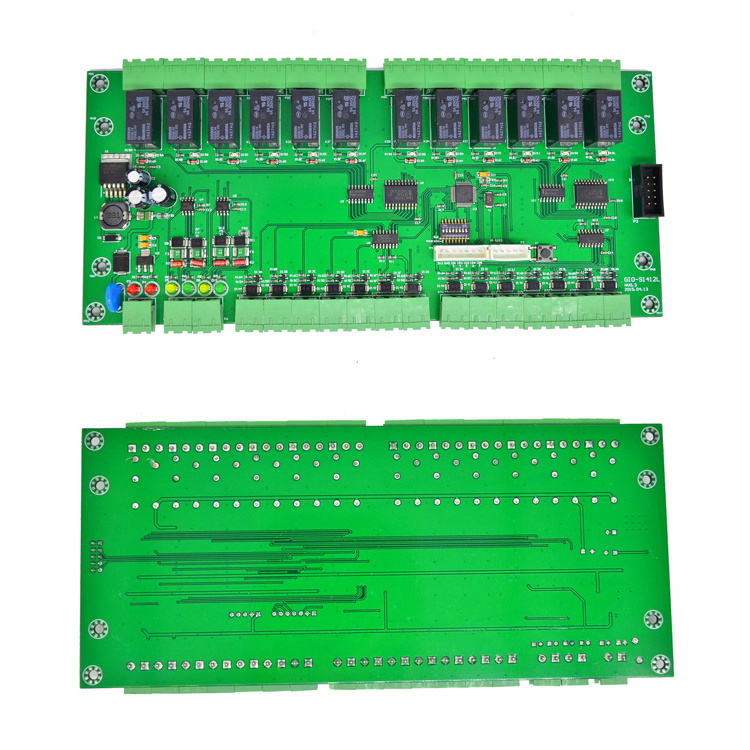

Expandable (via RS485 connection to any controller) to 5 EXP-IO panel to create upto 140 supervised inputs and 120 relay outputs.
Supports 100,000 users each with 2 cards
Supports 100,000 events (expandable)
Support 2000 schedule dedicated to reader, user and device operations.
Support 6 time intervals per day schedule.
Support FTP download and upload.
Support 1000 door access groups & lift access groups
Support 16 Security Access Level.
Support zone counting, antipassback, interlocking.
Enhancing security with build-in SAM slot
Dashboard:
It provides one glance view to the controller setting and its status.
Weekly Schedule:
For setting of weekly schedule, configurable for different device types, for user and for system .
User Access Group:
An easy way to assign User access rights, just drag and
Zone Counting:
An effective way to limit the nos. of users to a room or group of rooms.
Parameter:
|
|
C2 |
C4 |
C2i |
EXP-IO |
|
Function |
2 door |
4 door |
2 door integrated |
Expansion IO board |
|
Operation |
Via browser |
- |
||
|
Connection |
TCP/IP, (RS485 optional) |
RS485 |
||
|
Supported User & Events |
100,000, 100,000 |
|
||
|
Access Level |
16 |
- |
||
|
Antipassback |
Supported |
|
||
|
Interlocking |
Supported |
|
||
|
Zone Counting |
Supported |
|
||
|
Inter-Control Program |
Supported |
|
||
|
Support Reader Type |
Wiegand, RS485, TCP/IP |
- |
||
|
Reader nos. |
2 |
4 |
2 |
- |
|
Door Input points |
8 |
8 |
8 |
- |
|
Door Output points |
2 |
4 |
2 |
- |
|
Aux Input(supervised) |
4 |
4 |
4 |
- |
|
Aux Out |
1 |
1 |
1 |
- |
|
Device Input points |
- |
- |
14 |
28 |
|
Device Output points |
- |
- |
12 |
24 |
|
Security / Encryption |
SAM, AES256 |
- |
||
|
Enhancement |
SD card, USB port, RS485 port |
- |
||
|
Power |
AC90v ~ 230v |
|||
