- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HUAYI
-
Model Number:
-
GKC-Y
-
Product name:
-

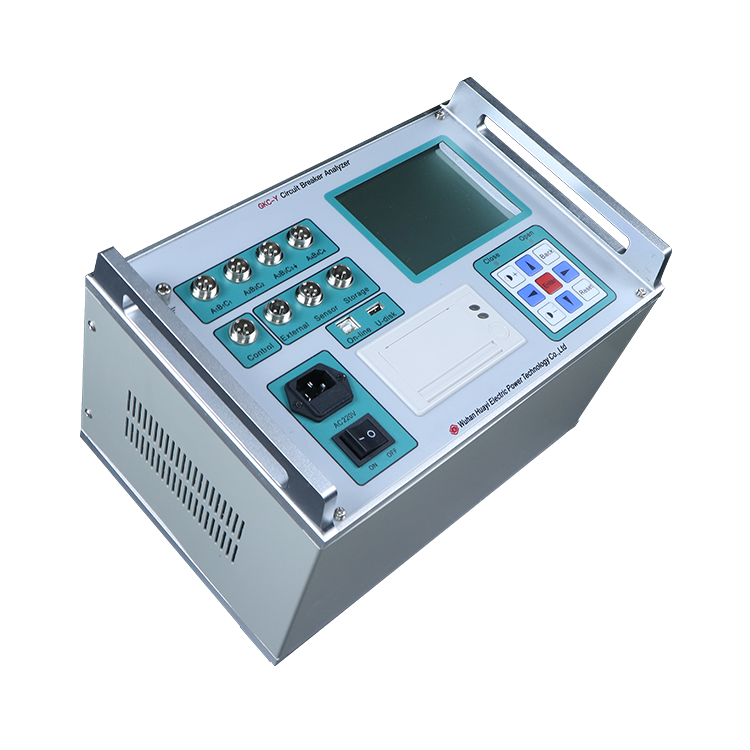

High Voltage Breaker Dynamic Characteristic Tester
-
Application:
-
Electrics
-
Function:
-
Test
-
Support:
-
OEM,wholesales,dropshipping
-
Standard:
-
ISO9001
-
Power supply:
-
220V 50Hz
-
Color:
-
White
-
Type:
-
Digital
-
Temperature range:
-
-10~45℃
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HUAYI
-
Model Number:
-
GKC-Y
-
Product name:
-
High Voltage Breaker Dynamic Characteristic Tester
-
Application:
-
Electrics
-
Function:
-
Test
-
Support:
-
OEM,wholesales,dropshipping
-
Standard:
-
ISO9001
-
Power supply:
-
220V 50Hz
-
Color:
-
White
-
Type:
-
Digital
-
Temperature range:
-
-10~45℃
Product Description
Introduction
Circuit Breaker Tester For Vacuum Closing Resistor Test C-O-C Timing Test Kit
Features
1.Apply to all types of metal contacts of SF6 switch, GIS combination electrical appliance, vacuum switch, oil switch, which produced at home and abroad;
2.With linear travel sensor, rotary sensor, easy to install.
3.With host big screen, transparent, backlight LCD, contrast electric adjustment, display all data and waveform.
4.Host can store the test result of multi groups opening and closing. With internal real-time clock, convenient to record and save test date and time.
5.With internal fast micro printer, print all data and map.
6.Equipped with strong data analyzing function, can analyze each parameter of circuit breaker mechanical characteristics.
2.With linear travel sensor, rotary sensor, easy to install.
3.With host big screen, transparent, backlight LCD, contrast electric adjustment, display all data and waveform.
4.Host can store the test result of multi groups opening and closing. With internal real-time clock, convenient to record and save test date and time.
5.With internal fast micro printer, print all data and map.
6.Equipped with strong data analyzing function, can analyze each parameter of circuit breaker mechanical characteristics.
Technology Parameters
|
Service condition
|
Input power |
220V±10% 50Hz±10%
|
|
|
Atmospheric pressure
|
86～106kpa ℃
|
|
|
Temperature
|
－10～45℃
|
|
|
Humidity
|
≦80%RH
|
|
Safety Performance
|
Insulation resistance |
＞2MΩ
|
|
|
Dielectric strength
|
Power to chassis frequency voltage withstands 1.5KV, 1 min, no flashover and arcing. |
|
Basic parameters
|
Time
|
Range：16000.0ms，resolution：0.1ms
|
|
|
|
Error：①200ms within，0.1ms±1d
|
|
|
|
②200ms above,±2％
|
|
|
|
③synchronous±0.1ms
|
|
|
Speed
|
Range：20.00m/s，resolution0.01m/s
|
|
|
|
Error：①0～2m/s within ±0.1m/s±1d
|
|
|
|
②100ms above,±0.2m/s±1d
|
|
|
range
|
Vacuum Circuit Breaker：range：50.0mm，resolution：0.1mm，error：±0.5mm
|
|
|
|
SF6 Breaker： range：300.0mm，resolution：0.1mm，error：±2mm
|
|
|
|
Oil-minimum breaker：range：600.0mm，resolution：0.1mm，error：±2mm
|
|
|
current
|
range：20.00A ，resolution：0.01A
|
|
|
Fracture type
|
12 way metal fracture,6 way closing resistance fracture
|
|
|
Output power
|
DC30～250V digitally adjustable /20A（Instantaneous）
|
|
|
Dimension
|
host：360×290×280mm3；addition：：370×280×220mm3
|
|
|
Weight
|
Host：6kg；addition：9kg
|
Accessory
|
Serial
|
Name
|
Amount
|
Serial
|
Name
|
Amount
|
|
1
|
Maiframe
|
one
|
15
|
Rotating bracket
|
three
|
|
2
|
Accessories aluminum alloy box
|
one
|
16
|
Rotating rod
|
four
|
|
3
|
Controlling line of switch
|
one
|
17
|
Permanent magnetic base
|
one
|
|
4
|
External triggering detection line
|
one
|
18
|
Screw
|
one
|
|
5
|
Sensor line
|
one
|
19
|
Cross opener 6*38mm
|
one
|
|
6
|
Ground lead (4m)
|
one
|
20
|
Flat opener 3*75mm
|
one
|
|
7
|
Fracture test line
|
ten
|
21
|
Clip
|
sixteen
|
|
8
|
Power line
|
one
|
22
|
Pin
|
three
|
|
9
|
Fracture shorting stub
|
two
|
23
|
Allen wrench
|
two
|
|
10
|
Shorting stub 40cm
|
two
|
24
|
Fuse
|
one
|
|
11
|
Shorting stub 80cm
|
two
|
25
|
Thermal printing paper
|
two
|
|
12
|
Rotary speed sensor
|
one
|
26
|
Specification
|
one
|
|
13
|
Line sensor
|
one
|
27
|
Inspection Report
|
one
|
|
14
|
Rotating speed magnetic base
|
ten
|
28
|
Certification
|
one
|
Products Show
Our Company
Production
office
Warehouse
R&D team
Meeting room
show room
Production Line
We are professional manufacturer in China, have own production line and R&D team, providing best price and quality.
