Quick Details
-
Center Height (mm):
-
740 mm
-
Max.Transformer Capacity(kVA):
-
3 kVA
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Meiheng
-
Motor Power (kw):
-
3
-
Weight (KG):
-
790
-
Dimension(L*W*H):
-
1300(L)x1300(W)x1600(H)
-
Wire Diameter Range (mm):
-
800 - 1500 mm
-
Distance between main box and tail box:
-
800-1500mm
-
Working speed:
-
0-200r/min
-
Speed mode:
-
Frequency conversion stepless speed regulation
-
Motor Power:
-
3kW
-
Maximum set number of laps of counter:
-
9999.99
-
After Warranty Service:
-
Video technical support
-
Technical Service:
-
Online support
-
After Service:
-
Field maintenance and repair service
-
After-sales Service Provided:
-
Free spare parts
-
Local Service Location:
-
None
Quick Details
-
Max. Load (KG):
-
1000 KG
-
Coil Type:
-
toroidal
-
Length of Axis (mm):
-
1200 mm
-
Center Height (mm):
-
740 mm
-
Max.Transformer Capacity(kVA):
-
3 kVA
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Meiheng
-
Motor Power (kw):
-
3
-
Weight (KG):
-
790
-
Dimension(L*W*H):
-
1300(L)x1300(W)x1600(H)
-
Wire Diameter Range (mm):
-
800 - 1500 mm
-
Distance between main box and tail box:
-
800-1500mm
-
Working speed:
-
0-200r/min
-
Speed mode:
-
Frequency conversion stepless speed regulation
-
Motor Power:
-
3kW
-
Maximum set number of laps of counter:
-
9999.99
-
After Warranty Service:
-
Video technical support
-
Technical Service:
-
Online support
-
After Service:
-
Field maintenance and repair service
-
After-sales Service Provided:
-
Free spare parts
-
Local Service Location:
-
None

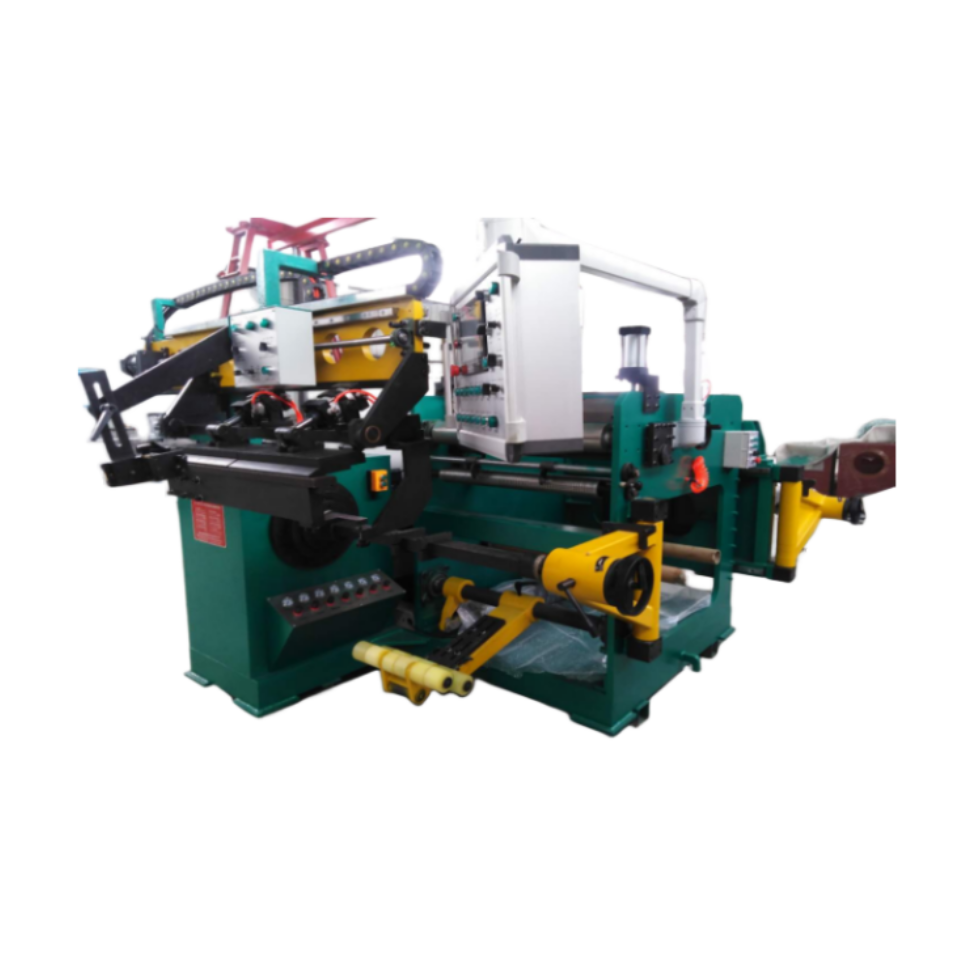

Product Description
Application:
suitable for winding low-voltage coils of various small and medium-sized distribution transformers, mutual inductors, reactors and similar processes. It is composed of winding host, frequency converter and electronic reversible counter. It has the characteristics of a certain degree of automation, complete functions, and strong power.
Technical Parameter:
| 1.1 Spindle center height : 740 mm; Maximum load: 1000KG |
| 1.2 The distance between the main box and the tail box :800-1500mm |
| 1.3 Working speed:0—200r/min |
| 1.4 Speed regulation mode:Frequency conversion stepless speed regulation |
| 1.5 Motor power:3kW |
| 1.6 Maximum set number of laps of the counter:9999.99 |
| 1.7 Counting mode and speed adjustment: The grating counter displays the number of turns, the encoder counter counts, the speed can be adjusted, and the forward/reverse can be realized. |
| 1.8 power supply:380V/50Hz three-phase five-wire or according your choose |
| 1.9 Connection method: A square hole sleeve, a 40X40mm square shaft with a length of 1200mm, and both ends of the square shaft have thimble holes. |
| 1.10 Loosen the screws of the rear tailstock box body, which can be moved by hand to adjust the center distance of the winding machine. The rear tailstock box body has a center point. |
| 1.11 The telescopic range of the tail box thimble : 0-100mm. |
Function:
- This machine adopts a hard fabric gear mechanical speed change system, which has the characteristics of high efficiency and low noise.
- The motor has a braking function, which is sensitive and reliable.
- Electrically adopts frequency conversion speed regulation, and the inverter controls the braking, so the starting and braking slopes can be preset to make it suitable for the best state of winding.
- The frequency conversion speed regulation range is wide, and the speed regulation is accurate and stable. The insulation class of the motor is F class.
- Use high-definition digital display counter operation data display, high-precision counting encoder counting to ensure the accuracy of winding.
- The desktop control box is placed above the chassis, which is easy to use, clear and clear in display.
-
The foot switch is made of high-quality products, and is fixed on the anti-skid plate as a whole, and there are warning signs
in the picture.
Our Services
- One year guarantee for product quality. (People damaged parts are charged).
- Lifelong maintenance and spare parts supply.
- Free design of fixtures as customers required.
- Free training for machines installation and operation of the staffs at factory.
