Quick Details
-
Brand Name:
-
WALTER
-
Model Number:
-
W-1500L
-
Humidity range:
-
20%~98%
-
Test hole:
-
D50mm
-
Fluctuation:
-
±0.5°C ±2.5%RH
-
Application:
-
temperature humidity controller machine
-
Function:
-
temperature humidity equipment
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WALTER
-
Model Number:
-
W-1500L
-
Humidity range:
-
20%~98%
-
Test hole:
-
D50mm
-
Fluctuation:
-
±0.5°C ±2.5%RH
-
Application:
-
temperature humidity controller machine
-
Function:
-
temperature humidity equipment

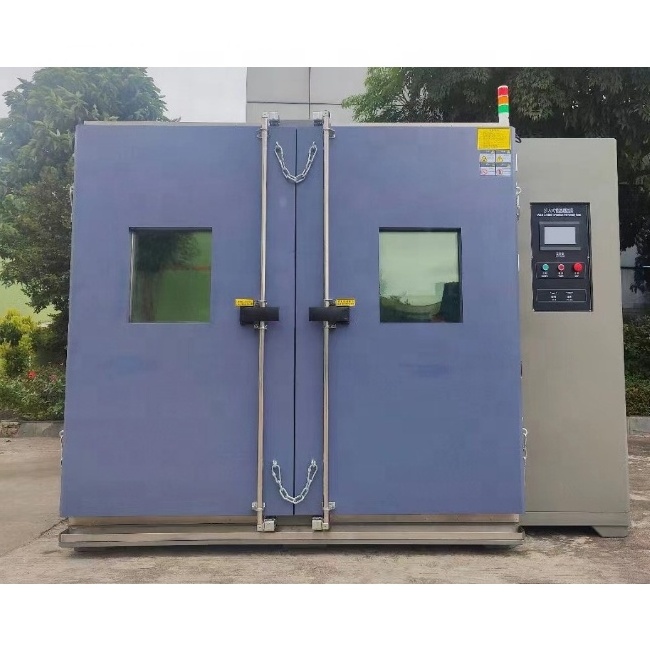

Temperature And Humidity Testing Walk In Climatic Test Chamber
The Programmable Constant temperature humidity environmental test chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Test Standard: GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:
1. Programmable Constant temperature humidity environmental test chamber Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Programmable Constant temperature humidity environmental test chamber control temperature&humidity well-distributed, precisely and steady.
3. Programmable Constant temperature humidity environmental test chamber Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
|
Model |
W - 8 0 /100 |
W -150 |
W -225 |
|
|
Interior Dimension (mm) |
4 00×500×4 0 0 /500 |
500×600×500 |
500×600×750 |
|
|
Overall Dimension (mm) |
880×840×1480 |
1020×1000×1720 |
1010×1100×1940 |
|
|
Model |
W -408 |
W -800 |
W -1000 |
|
|
Interior Dimension (mm) |
600×850×800 |
800×1000×1000 |
1000×1000×1000 |
|
|
Overall Dimension (mm) |
1210×1140×1960 |
1280×1480×2030 |
1480×1480×2030 |
|
|
Parameter |
Temp. range |
Model S: - 6 0°C~+150°C , Model L : - 4 0°C~+1 5 0°C, Model M : -2 0°C~+1 5 0°C |
||
|
|
Humidity Range |
20% ~ 98% R.H |
||
|
|
Accuracy |
± 1.0 ° C, ± 2%RH / ± 0.5 ° C, ± 2%RH |
||
|
|
Resolution |
± 0.1 ° C, ± 0.1%RH / ± 1 ° C, ± 3%RH |
||
|
|
Heating Rate |
≤ 3 ° C/min |
||
|
|
Cooling Rate |
Average 1° C/min |
||
|
Material |
Shell material |
H igh-quality stainless steel plate |
||
|
|
Liner material |
H igh-quality SUS304 stainless steel plate |
||
|
|
Insulation materials |
Ultra-fine glass fiber insulation cotton / rigid polyurethane foam |
||
|
|
Door seal |
Double resistance to high and low temperature aging and hardening of refined silicone seal |
||
|
Cold heat system |
Controller |
TEMI8 8 0 color touch screen Controlle r |
||
|
|
|
Accuracy range: temperature ± 0.1 °C, indicating accuracy: temperature ± 0.1 °C, resolution: ± 0.1 °C |
||
|
|
Circulatory system |
Temperature low-noise motors, cycle s , , stainless steel multi-leaf type centrifugal fan, the test time can set 999999 hours |
||
|
|
Water supply |
Electronic device controller automatic control of liquid, and more than recycled water, with water alarm |
||
|
|
Humidification mode |
External isolated, stainless steel electric steam humidification mode occurs |
||
|
|
Dehumidification mode |
Condensation method using the dew point temperature of the evaporator coil dehumidification mode laminar contacts |
||
|
|
Refrigeration |
Unit cooling mode / Dual (cascade) cooling method (air-cooled) |
||
|
|
Condenser/ Evaporator |
France Tecumseh |
||
|
|
Compressor |
France Tecumseh closed refrigeration compressor |
||
|
Security Devices |
Power overload, leakage, grounding, over-temperature protection (with voice prompts), fast fuse, compressor over-voltage protection |
|||
|
Standard |
Resistant to high and low temperature heat tempered glass hollow glass windows: 300 × 200 (mm), a lighting, two sample holder s , |
|||
|
Power supply |
ACø220V·50HZ/380V·50HZ |
|||
|
Ambient temperature |
15°C~+30°C ≤85%R.H |
|||
