Quick Details
Quick Details
-
Model Number:
-
SW520D
-
Place of Origin:
-
China
-
Brand Name:
-
NA
Product Description

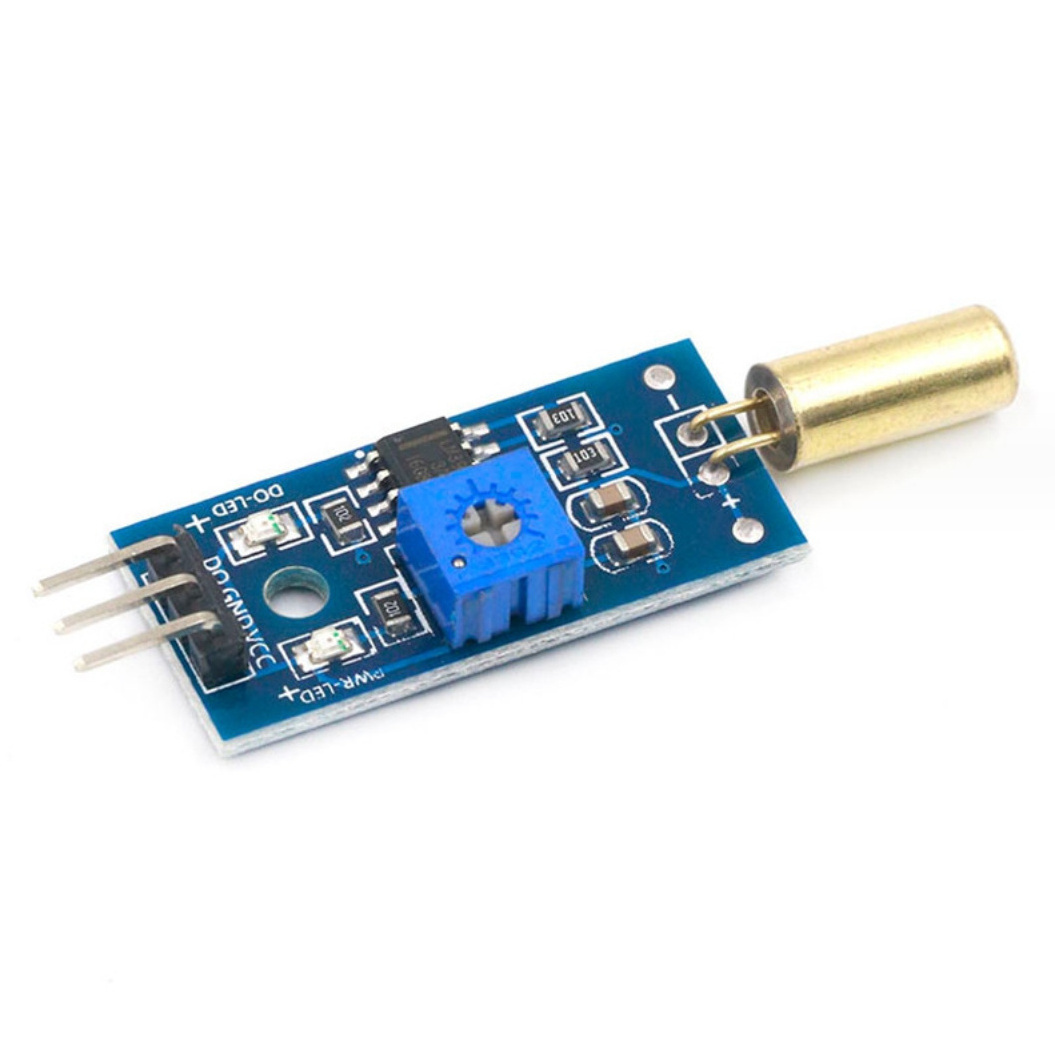

Taidacent Digital Switch Output High-sensitivity Angle Sensor Ball Switch Sensor Electronic Tilt Sensor Module SW520D
1. Please refer to the wiring diagram below for the wiring of this module, with detailed instructions;
2. The switch output of the module depends on the on and off of the angle switch. When the angle switch is open, the DO output is
high, and when the angle switch is turned on, the DO output is low;
3. The output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the
single-chip microcomputer, thereby detecting the angle change;
4. The output terminal can directly drive the relay module, which can form a high-power angle switch to protect the automatic
power-off function when the products such as electrical equipment are dumped.
2. The switch output of the module depends on the on and off of the angle switch. When the angle switch is open, the DO output is
high, and when the angle switch is turned on, the DO output is low;
3. The output terminal can be directly connected to the single-chip microcomputer, and the high-low level is detected by the
single-chip microcomputer, thereby detecting the angle change;
4. The output terminal can directly drive the relay module, which can form a high-power angle switch to protect the automatic
power-off function when the products such as electrical equipment are dumped.
|
|
|
|
|
|
