Quick Details
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FAYGO
-
Year:
-
2021
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
2180*770*1960
-
Hollow part volume:
-
5.5*1.3*2.3
-
Clamping Force (kN):
-
50
-
Power (kW):
-
21
-
Weight (KG):
-
300 KG
-
Product name:
-
Blowing machine
-
Use:
-
Making PET Bottle
-
volume:
-
3-5 gallon
-
Output:
-
60-180pcs/h
-
Rated power:
-
49 kW
-
height:
-
500 mm
-
max mold thickness:
-
400 mm
-
mold openning:
-
380 kg
-
mold openning stroke:
-
318 mm
-
product material:
-
PET
Quick Details
-
Neck Diameter(mm):
-
38 mm
-
Max.Bottle Diameter(mm):
-
105 mm
-
Max.Bottle Height(mm):
-
328 mm
-
Bottle Volume(ml):
-
2000 ml
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FAYGO
-
Year:
-
2021
-
Voltage:
-
220V/380V 50HZ
-
Dimension(L*W*H):
-
2180*770*1960
-
Hollow part volume:
-
5.5*1.3*2.3
-
Clamping Force (kN):
-
50
-
Power (kW):
-
21
-
Weight (KG):
-
300 KG
-
Product name:
-
Blowing machine
-
Use:
-
Making PET Bottle
-
volume:
-
3-5 gallon
-
Output:
-
60-180pcs/h
-
Rated power:
-
49 kW
-
height:
-
500 mm
-
max mold thickness:
-
400 mm
-
mold openning:
-
380 kg
-
mold openning stroke:
-
318 mm
-
product material:
-
PET
Product Description

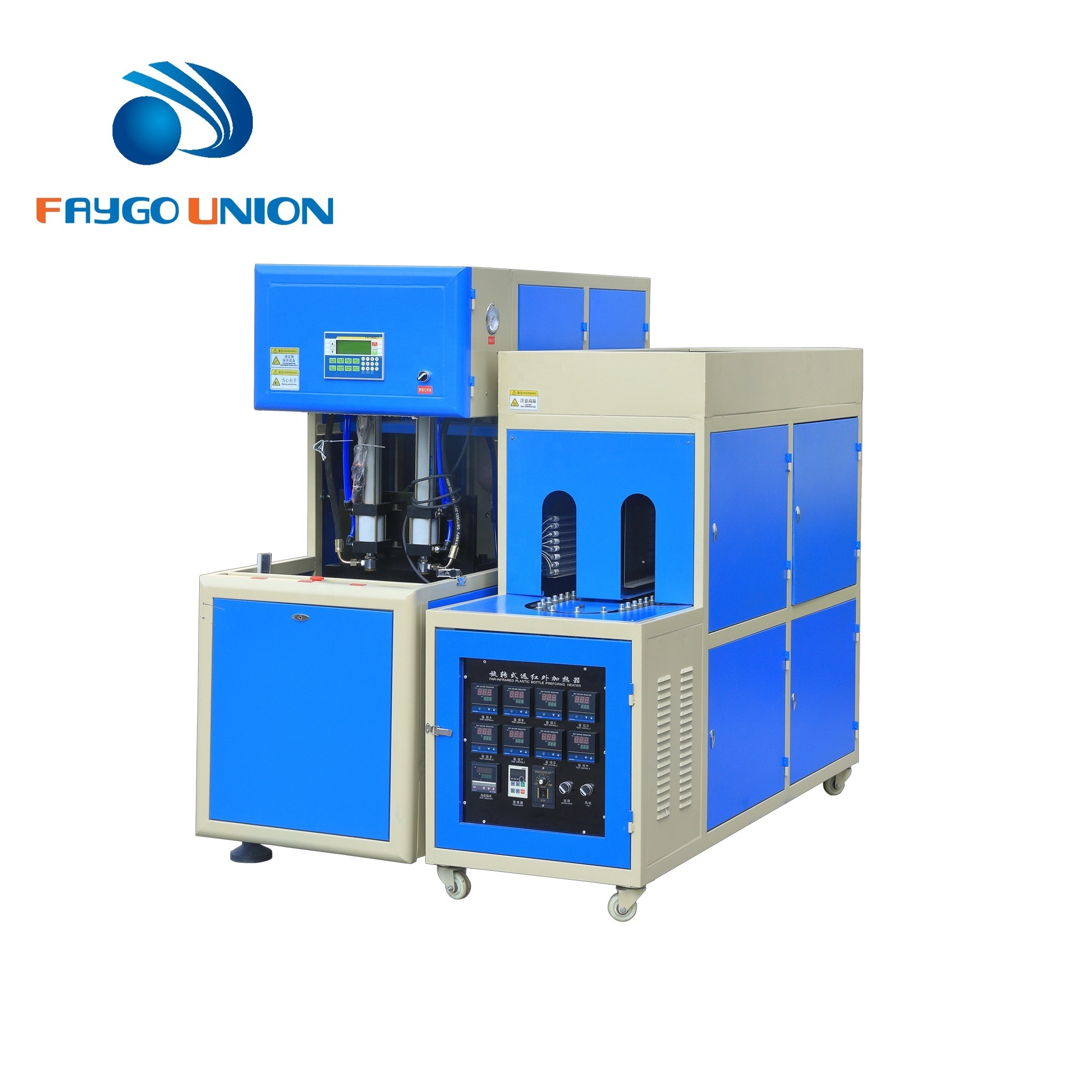

CM series Semi-automatic blow molding machineis
CM series Semi-automatic blow molding machineis especially used to produce from 3 gallon to 5gallon bottles and is widely used to produce any shape of plastic from PET withneck diameter from 15mm to 200mm.
|
MODEL
|
CM-12
|
CM-9B
|
|
Theoretical output
|
60-180pcs/h
|
250-400pcs/h
|
|
Volume
|
10-25L
|
5-10L
|
|
Rated power
|
40kw
|
17.5
|
Products Application
Our extrusion line is widely used for electricity, such as conduit PET bottle.
We also have Full Automatic Blow Molding Machine. Our FG4 Molding Machine is a completely new generation of linear blowing machine, distinguished by its high speed, low power and low compressed air consumption, featured by the excellent structure design, small space occupation, less noise and high stability, meanwhile conforms to national beverage sanitary standards. This machine symbolizes the highest level of national linear blowing machines. It is the ideal bottle making equipment for mediu; and large enterprises.
Other Products
Note
: the parameter above is based on the 17grams of 500mL PET bottles. If the bottle conditions change, the corresponding parameter will change also. With the developmen and innovation of technology, the data above may be changed or improved, so it is for reference only. For precise and detailed data, please consult our technical department.
|
Item
|
Magnetic valve
|
Servo system
|
Frequency inverter PLC
|
Blowing valve
|
One-way valve
|
Reducing valve
|
|
|
Cylinder
|
|
Touch screen
|
|
Throttle valve
|
|
|
Brand
|
FESTO
|
Panasonic
|
MITSUBISHI
|
Parker
|
FESTO
|
DURAY
|
|
Origin
|
Germany
|
Japan
|
Japan
|
USA
|
Germany
|
Germany
|
The unique cam linking system integrates mold-opening， mold-locking and bottom mold-elevating in one movement, equipped with high speed servo driving system which greatly shortens the blowing cycle and accelerates the speed.
By rotary and soft preform loading system, the speed of preform feeding is ensured, meanwhile, the preform neck is well protected.
Heater distance in the heating oven is minimized to 38.1mm, compared with the conventional heating oven, it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature in the heating zone.
The machine adopts modularized design concept to make it convenient and cost-saving for the maintenance and changing changeovers.
Company
IDEA
Making good machine, Being good person.
Faygo
is a new high-tech entreprise covering
26500
㎡, which specializes in reserching and manufacturing blowing blowing machines. Our products have been exported to Middle East, Southeast Asia, South America and Europe etc. We've received universal confirmation and trust from our customers.
Exhibition
Packaging & shipping
SMART series of blowing machine
will be packed in wooden cases. Plastic packing inside and the wooden case outside, also can adapt to other requirements.
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory covering more than 20000㎡.
2.Q:What can you buy from us?
A: Plastic machinery,Pipe production line,Plate production line,Profile production line,Blow Molding Machine and so on.
3. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
4. Q:What can you provide for after-sale service?
A: 12 months Warranty for Mechanical part, main parts is made of high tool steel by special quenching treatment, with high corrosion resistance and wear resistance. We also provide equipment repair services for life. For long-term cooperation, we always provide good quality, good price and good service to customer.
5. Q: How can we visit your company?
A: Our factory is in Feixiang Road, Fenghuang Town, Zhangjiagang City, Jiangsu Province, China. About 2.5hours from Shanghai Pudong International Ariport. Welcome everyone to visit our factory, we will show you our machines.
