Quick Details
-
Span:
-
6-42m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tavol
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Product Name:
-
Overhead crane
-
Crane feature:
-
Single Girder Oveherd Crane
-
Work duty:
-
A3
-
Color:
-
Customized
-
CAD drawing:
-
Avalilable
-
Power Source:
-
Customized
-
Control method:
-
Wireless Remote Control&Pendant Control
-
Lifting mechanism:
-
Eliectric Hoist
-
Sling Type:
-
Steel Wire Rope
-
Certification:
-
ISO,CIQ,CE,BV
Quick Details
-
Max. Lifting Height:
-
100M
-
Rated Lifting Moment:
-
100KN
-
Max. Lifting Load:
-
32T
-
Span:
-
6-42m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Tavol
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Product Name:
-
Overhead crane
-
Crane feature:
-
Single Girder Oveherd Crane
-
Work duty:
-
A3
-
Color:
-
Customized
-
CAD drawing:
-
Avalilable
-
Power Source:
-
Customized
-
Control method:
-
Wireless Remote Control&Pendant Control
-
Lifting mechanism:
-
Eliectric Hoist
-
Sling Type:
-
Steel Wire Rope
-
Certification:
-
ISO,CIQ,CE,BV
|

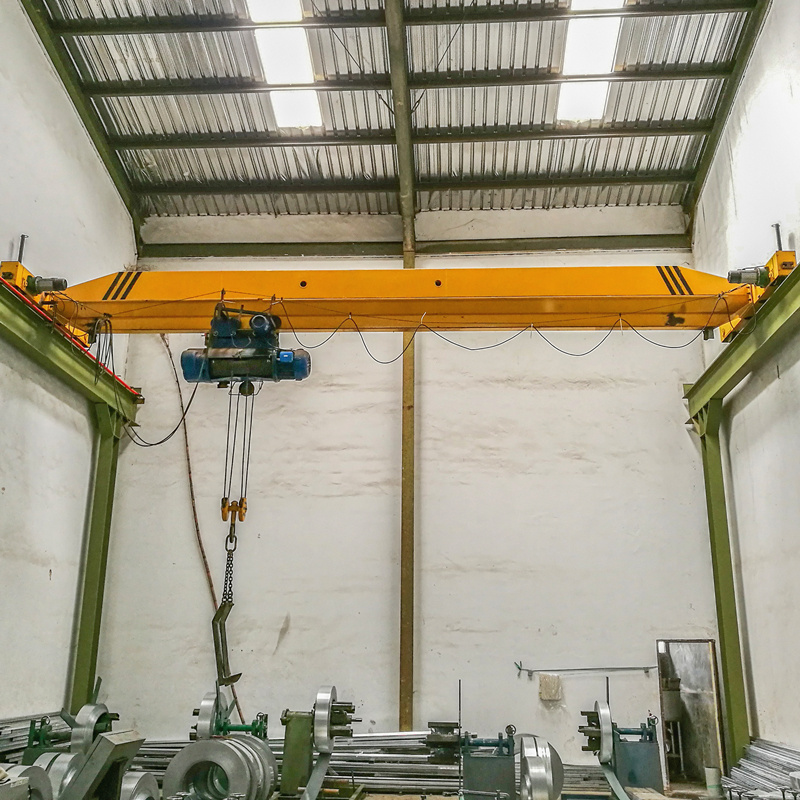

Workshop Equipment electric hoist overhead crane 3 ton 5 ton 10 ton |
It is equipped with electric hoists and widely used in Steel Plant, Cement Plant,Power Plant ,Mine Industry,Food Industry,Chemical Industry,Ship yard,Stone Yard, and W arehouses,ect .
| Main Parameters |
| Type | Single Girder Overhead Crane |
| Lift capacity | 1-32t |
| Span | 6-42m or customized |
| Lift height | customized |
| Lift speed | 3.5/0.35 m/min or customized |
| Cross traverse speed | 20/2 m/min or customized |
| Long travel speed | 20/2 m/min or customized |
| Work duty | A3 |
| Control method | Remote control & pendant line button |
| Working temperature | -25 ~40 degrees |
| Power supply |
380V/50HZ/3P
or
customized
|
| Safety Device |
1. Crane traveling limit switch
2. Weight overload protection system
3. Emergency stop syestem
4. Voltage lower protection function
5. C urrent overload protection system
6.Top quality long time bearing polyurethane materials buff er...
| Crane Componet |
| Crane Structure |
| Crane Manufacture Process |
| Crane Painting |
| Whole Model We Supply |
1. LD Single Girder Overhead Crane
2. LD-E Single Girder Overhead Crane
3.LDC Low Head Room
Overhead Crane
4.LB Explosion Proof
Overhead Crane
5.LX Suspension
Overhead Crane
6. LH Double Girder Overhead Crane
7. QD Double Girder Overhead Crane
8. QDE Double Girder Overhead Crane
9. QZ Grab Bucket Overhead Crane
10. QC Magnet Overhead Crane
11. QDY Foundry Casting Crane
| Capacity | 1 | 2 | 3 | 5 | 10 | 16 | 20 | 25 | 32 | 50 | 72 | ~550 |
| Normal work shop,A3 | LD Single Girder Overhead Crane | |||||||||||
| Normal work shop,A3 |
LD-E Single Girder Overhead Crane
|
|||||||||||
|
Low clearance Workshop,A3
|
LDC Low Head Room Overhead Crane | |||||||||||
| Explosion Proof, A3 | LB Explosion Proof Overhead Crane | |||||||||||
| Normal work shop,A3 |
LX Suspension Overhead Crane
|
|||||||||||
| Normal work shop,A4 | LH Double Girder Overhead Crane | |||||||||||
| Normal Work shop,A5 | QD Double Girder Overhead Crane | |||||||||||
| Normal Work shop,A5 | Euro Style Double Girder Overhead Crane | |||||||||||
| Grab Crane for bulk material, A5~A8 | QZ Grab Bucket Overhead Crane | |||||||||||
| Magnet Crane for steel product, A6 | QC Magnet Overhead Crane | |||||||||||
| Foundry Crane, A7, A8 | QDY Foundry Casting Crane | |||||||||||
| Overhead Cranes Project Reference |
1.Electric parts and electric hoist packed by high quality plywood crate,
2.Other parts packed by bubble paper.
3.Shipped by Conatiners or Bulk Ship
1. Once provide us the requirement, the details technical data and CAD drawing will provide you at
the first time.
2. Strict quality control system, supervision the work to ensure the best crane for you.
3. Strict production line, make sure manufacture the goods on time.
4. Best cooperation forwarder provide the soonest and reliable service for our goods.
5. If needed, senior engineers can be your side do the installation guide and training.
