Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFRO2-011-070-3A
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.08hp
-
Outlet Size:
-
3/8"-18 FNPT
-
Power:
-
60W
-
Max Pressure:
-
70 PSI [4.8 Bar]
-
Self Priming:
-
6.56' [2 m] Suction
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Valve Material:
-
EPDM
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Continuous
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,CE
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Food and Beverage Industry, Irrigation and Agriculture, Marine, Washing and Cleaning, Water Distribution
-
Pressure:
-
High Pressure
-
Voltage:
-
24V DC
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFRO2-011-070-3A
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
0.08hp
-
Outlet Size:
-
3/8"-18 FNPT
-
Power:
-
60W
-
Max Pressure:
-
70 PSI [4.8 Bar]
-
Self Priming:
-
6.56' [2 m] Suction
-
Switch Type:
-
On Demand [Cut-off Switch]
-
Diaphragm Material:
-
Santoprene
-
Valve Material:
-
EPDM
-
Max Fluid Temp.:
-
140 °F [60 °C]
-
Duty Cycle:
-
Continuous
-
Usage:
-
Water, Sprayer, Irrigation
-
Fuel:
-
Battery, Solar Power or Transformer
-
Certification:
-
RoHS,CE
| Features & Benefits |
|
1.Flow rate up to 1.1 GPM [4.1 LPM]
3.Automatically turn on and off 5.Quiet operation 7.Externai carbon brush,easy to replace and maintain |
2.Can run dry without damage 4.Self priming & built-in check valve 6.Long life, up to 5000 hours 8.By Pass Pump |

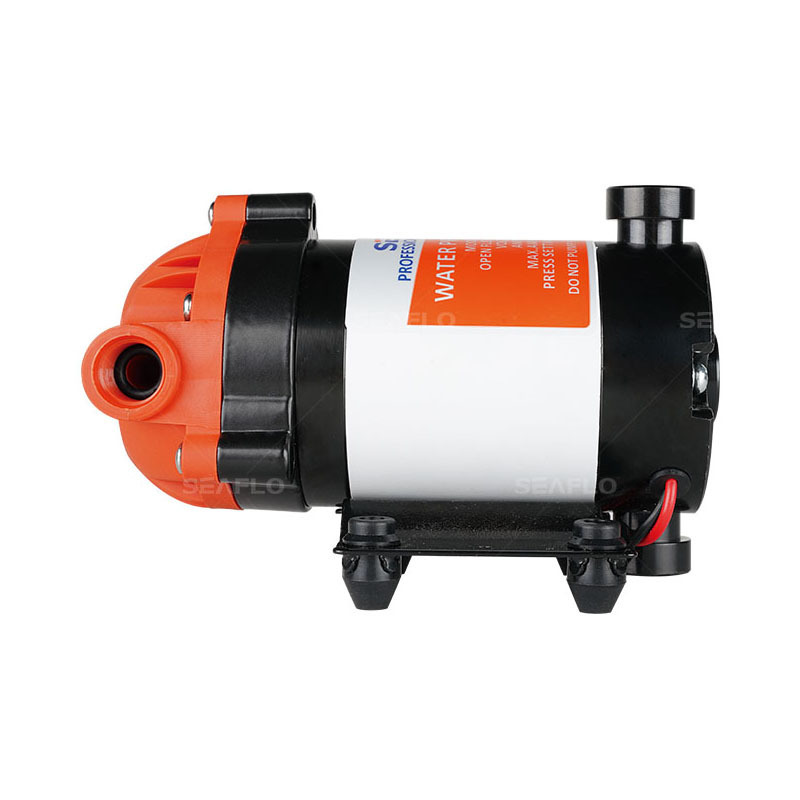

| Product Name | SEAFLO 3A Series long life diaphragm pump |
| Pump Type | 3 Chambers Positive Displacement Diaphragm Pump |
| Max Flow Rate | 4.1 LPM [1.1 GPM] |
| Max Pressure | 70 PSI [4.8 Bar] |
| Voltage | 110V, and 220V, 115V, 230V ,12V, 24V are available |
| Switch Type | On Demand [Cut-off Switch], and none switch is available |
| Diaphragm Material | Santoprene |
| Valve Material | Fluororubber, and EPDM is available |
| Duty Cycle | Continuous |
| Self Priming | 6.56' [2 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Inlet & Outlet Port | 3/8"-18 FNPT, and contact us for more ports |
The SEAFLO ultra-long life cycle booster pump is another innovative product of the SEAFLO team. It has increased the service life of the diaphragm booster pump by 5 times, and the life of the whole machine is up to 5000 hours, which break through the bottleneck of the industry. The application range of the product has been greatly expanded. The modular design can be easily customized. According to different requirements, the pump head with pressure switch and the pump head with bypass function can be configured. The external carbon brush can be easily replaced, and the after-sales problem can be easily solved.
| Product Show |
| Dimensions |
| Performance |
| Product Details |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow GPM [LPM] |
Cut off Pressure PSI [BAR] |
Valves | Diaphragm | Ports |
| SFRO2-011-070-3A | 24 V | 1.1 [4.1] | 70 [4.8] | Fluororubber | Santoprene | 3/8"FNPT |
Consult factory for other available models.
