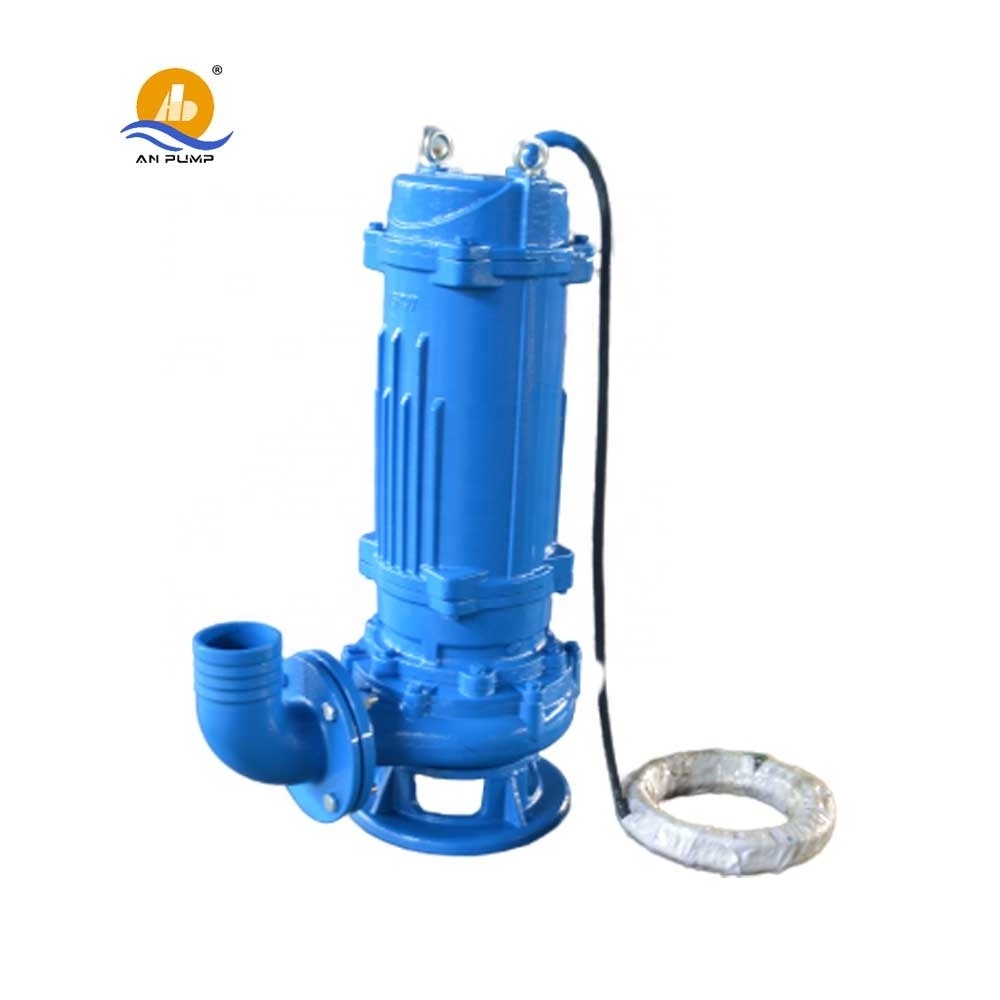

sewage pumping station portable sewage lift pump

sewage pumping station portable sewage lift pump

FOB Reference Price: Get Latest Price

≥1 Sets

US $260

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 years sewage grinder pump

Brand Name:: An Pump Machinery

Model Number:: ASW hydraulic dirty water pump

Place of Origin:: China three phase submersible sewage pump

Horsepower:: 20hp sewage sludge pump

Power Source:: electric water pump sewage

Structure:: sewage pump 15 hp submersible sump pump, Sewage pump with float

Outlet Size:: 4 inch trashdirty water pump

Power:: pump dirty water 90kw

motor:: submers motor sewag pump

Theory:: Dirty pump water

More Feature:: Raw sewage lift pump

Material:: Sewage pump stainless

Feature:: Sewage water pump

Work:: Sewage pumping stations solid sepration

Medium:: pump for dirty water

Other Application:: Sewage pump station

Usage:: Sewage pump for air conditioner

Quick Details

Application:: Marine, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions

Pressure:: sewage pump price philippines high pressure

Voltage:: pump sewage 220 volt

Warranty:: 1 years sewage grinder pump

Brand Name:: An Pump Machinery

Model Number:: ASW hydraulic dirty water pump

Place of Origin:: China three phase submersible sewage pump

Horsepower:: 20hp sewage sludge pump

Power Source:: electric water pump sewage

Structure:: sewage pump 15 hp submersible sump pump, Sewage pump with float

Outlet Size:: 4 inch trashdirty water pump

Power:: pump dirty water 90kw

motor:: submers motor sewag pump

Theory:: Dirty pump water

More Feature:: Raw sewage lift pump

Material:: Sewage pump stainless

Feature:: Sewage water pump

Work:: Sewage pumping stations solid sepration

Medium:: pump for dirty water

Other Application:: Sewage pump station

Usage:: Sewage pump for air conditioner

sewage pumping station portable sewage lift pump

Pump Description

ASW series submers motor sewag pumpis absorbed in the QW on the basis of similar products at home and abroad advanced technology and features, using the most excellent hydraulic model, special structures and materials, combined with sewage effluent characteristics and the actual needs of the most developed at home and abroad advanced, most feature-complete "third generation" of new sewage pump, its efficiency and performance are superior to similar products at home and abroad.

The pump has a high efficiency energy-saving, non-blocking, anti-winding, long life and other notable features can be installed with an automatic coupling device. And a common type, auto-mixing type, auto-shredding type, auto-mixing chopped-and anti-flushing-type five kinds of models.

According to market needs, the pump is divided into common type (excluding the ultra-mild leakage
protection device) and full insurance-type two kinds. Full insurance-type submersible sewage pump must
an pump supporting the use of dedicated control cabinet to achieve the perfect results.

Pump Performance

Pump Model	Outlet Dia (mm)	Flow Rate (m3/hr)	Head (m)	Power (kw)
50ASW	50	5-40	7-38	0.75-7.5
65ASW	65	10-45	8-37	2.2-7.5
80ASW	80	40-75	6-28	2.2-7.5
100ASW	100	65-120	4-45	3-22
150ASW	150	80-200	5-62	5.5-55
200ASW	200	250-500	6-50	11-75
250ASW	250	300-800	5-53	15-132
300ASW	300	500-1400	5-38	18.5-132
350ASW	350	900-2600	5-50	30-355
400ASW	400	1200-2800	3-47	30-355
500ASW	500	1500-4000	4-32	55-250
600ASW	600	2500-6000	6-25	110-315

Pump Application

water

sewage, waste water

harbour construction
ash transfer
silt removal
sand and gravel pumping
barge and tank clean out
lime slurry
coal runoff sumps
food waste

Pump Structure

Bearing:
Imported SKF of NTN bearing, which, with a reasonable configuration, can oxtend the duration of the pump.
Cooling:
The buit-in cooling system can have the pump normally work whether the motor is on or under the liquid surface. A part of the liquid is extracted to bring out the beat produced by the motor from the pump circulation to the cooling barrel and to the pump casing and, when external cooling is required, the cooling sleeve may be separated from the pump casing and individually connected to the cooling system.
Motor:

Of F class insulation, max. working temperatures 155 C, and of a protective grade IPX8 with the effective seal.
Mechanical seal:
Use high quality mechanic seal , two ways of the seal are in series with each other and individually work to separate the motor from the pump seal to provide the motor with a dual protection.
Impeller:
With the optimized design, the impeller wil not be blocked up when to transport liquid with its optimum flow and rate and the maximum efficiency. There are suitable impellers at choice for every point of working condition.
Shaft:
The pump is coaxial with the motor and the sealing device on the end of the shaft preven ts against contacting with the medium to protect is from corrosion.
