Name: Auto-feeding
Spindle speed step-changed cyclically and spindle auto-feeding and cyclic changed of feeding speed.
Adjustable gibs on table precision
- Product Details
- {{item.text}}
Quick Details
-
Drilling Speed:
-
95-1500r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
White Eagle
-
Model Number:
-
ZAY7020G, ZAY7032G, ZAY7040G, ZAY7045G
-
Voltage:
-
Customed
-
Dimension(L*W*H):
-
720*830*1110
-
Power (kW):
-
1.5
-
Weight (KG):
-
318 KG
-
Product name:
-
Gear head bench type hobby small milling drilling machine
-
Driving capacity:
-
Diameter=40mm
-
Face milling capacity:
-
Diameter=80mm
-
Distance from spindle nose to table:
-
440mm(optional:670mm)
-
Spindle travel:
-
130mm
-
Forward and backward travel of table:
-
140mm
-
Left and right travel of table:
-
175mm
-
Table size:
-
800*240mm
-
Spindle taper:
-
MT4orR8
-
Weight:
-
318kg
-
Certification:
-
ISO9001,CE,TUV
Quick Details
-
type:
-
CLASSIC
-
Max. Drilling Dia. (mm):
-
45 mm
-
Range of Spindle Speed(r.p.m):
-
95 - 1500 r.p.m
-
Drilling Speed:
-
95-1500r.p.m
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
White Eagle
-
Model Number:
-
ZAY7020G, ZAY7032G, ZAY7040G, ZAY7045G
-
Voltage:
-
Customed
-
Dimension(L*W*H):
-
720*830*1110
-
Power (kW):
-
1.5
-
Weight (KG):
-
318 KG
-
Product name:
-
Gear head bench type hobby small milling drilling machine
-
Driving capacity:
-
Diameter=40mm
-
Face milling capacity:
-
Diameter=80mm
-
Distance from spindle nose to table:
-
440mm(optional:670mm)
-
Spindle travel:
-
130mm
-
Forward and backward travel of table:
-
140mm
-
Left and right travel of table:
-
175mm
-
Table size:
-
800*240mm
-
Spindle taper:
-
MT4orR8
-
Weight:
-
318kg
-
Certification:
-
ISO9001,CE,TUV
Product Description

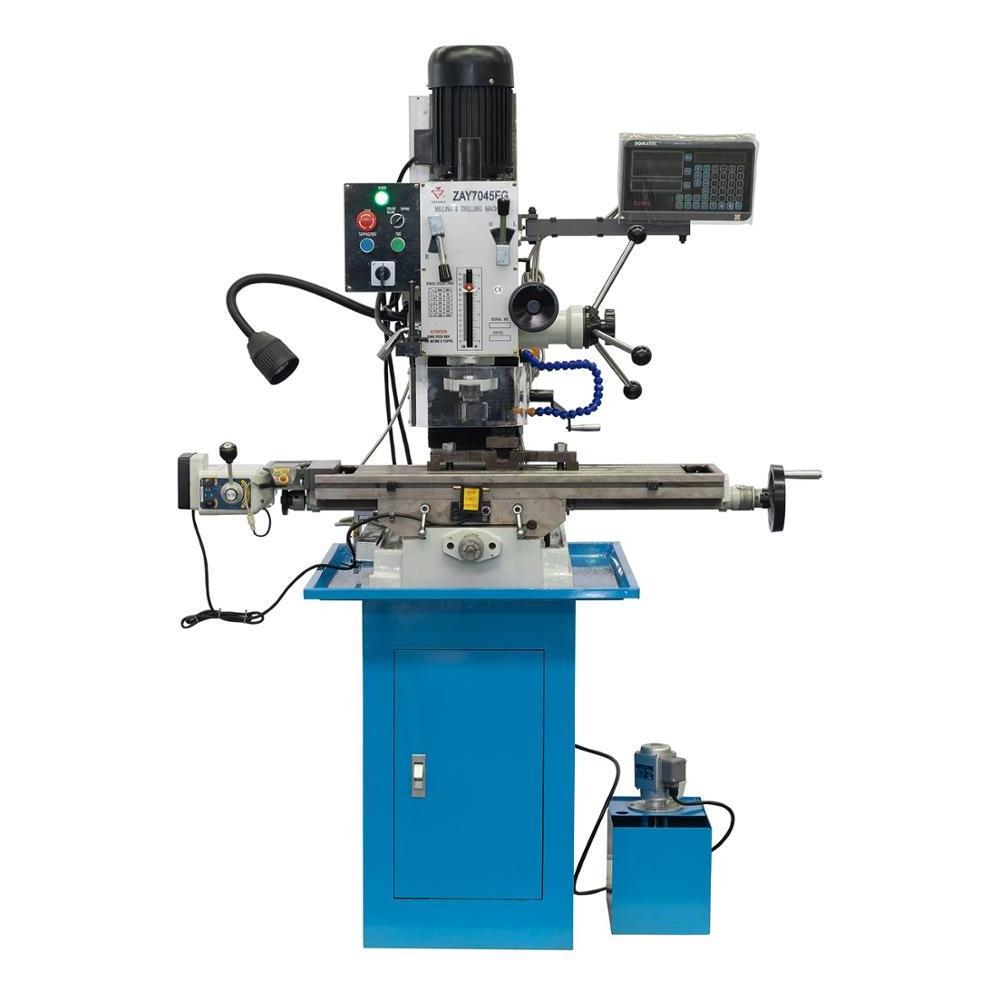

Gear head bench type hobby small milling drilling machine
Features:
1. Gear-driven and round column
2. Milling,drilling,tapping,boring and reaming
3. Headstock swivels ±360° Vertically
4. Mirco feed precision
5. Adjusable gibs on table precision
6 .Strong rigidity ,powerful cutting and precisely positioning
|
SPECIFICATION
|
|
|
|
|
||||
|
ITEM
|
ZAY7020G
|
ZAY7032G
|
ZAY7040G
|
ZAY7045G
|
||||
|
Drilling capacity
|
20mm
|
32mm
|
40mm
|
45mm
|
||||
|
Face milling capacity
|
63mm
|
63mm
|
80mm
|
80mm
|
||||
|
End milling capacity
|
20mm
|
20mm
|
32mm
|
32mm
|
||||
|
Distance from spindle nose to table
|
439mm
|
440mm
|
440mm
|
440mm
|
||||
|
Min.distance from spindle axis to column
|
197.5mm
|
272.5mm
|
272.5mm
|
272.5mm
|
||||
|
Spindle travel
|
85mm
|
130mm
|
130mm
|
130mm
|
||||
|
Spindle taper
|
M.T.3 or R8
|
M.T.3 or R8
|
M.T.4 or R8
|
M.T.4 or R8
|
||||
|
Step of spindle speed
|
6
|
6
|
6
|
6
|
||||
|
Range of spindle speed 50Hz
|
95-1420 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
80-1250 r.p.m
|
||||
|
60Hz
|
115-1700 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
95-1500 r.p.m
|
||||
|
Swivel angle of headstock(horizontally/perpendicularly)
|
360°/±90°
|
360°/±90°
|
360°/±90°
|
360°/±90°
|
||||
|
Table size
|
520×160mm
|
800×240mm
|
800×240mm
|
800×240mm
|
||||
|
Forward and backward travel of table
|
140mm
|
175mm
|
175mm
|
175mm
|
||||
|
Left and right travel of table
|
290mm
|
500mm
|
500mm
|
500mm
|
||||
|
Motor power
|
0.37KW
|
0.75KW(1HP)
|
1.1KW(1.5HP)
|
1.5KW(2HP)
|
||||
|
Voltage/frequency
|
As customer's requirement
|
As customer's requirement
|
As customer's requirement
|
As customer's requirement
|
||||
|
Net weight/gross weight
|
130kg/190kg
|
315kg/365kg
|
318kg/368kg
|
320kg/370kg
|
||||
|
Packing size(mm)
|
680×750×1000
|
770×880×1160
|
770×880×1160
|
770×880×1160
|
||||
|
Loading amount
|
48pcs/20＇container
|
36pcs/20＇container
|
36pcs/20＇container
|
36pcs/20＇container
|
||||
Detailed Images
Machine Parts
Main Part
Name: Motor
Motor power:0.37KW
We also can provide you SIEMENS brand motor for special request.
Machine Parts
Name:
Worktable
Adjustable gibs on table precision.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
680(L) *750(W) * 1000 (D) (MM)
|
|
|
Weight
|
N.W.130KGS / G.W. 190KGS
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
