Quick Details
-
Brand Name:
-
Unique
-
Dimension(L*W*H):
-
2805*2300*2980mm
-
Weight:
-
24.7t
-
Warranty:
-
15 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-

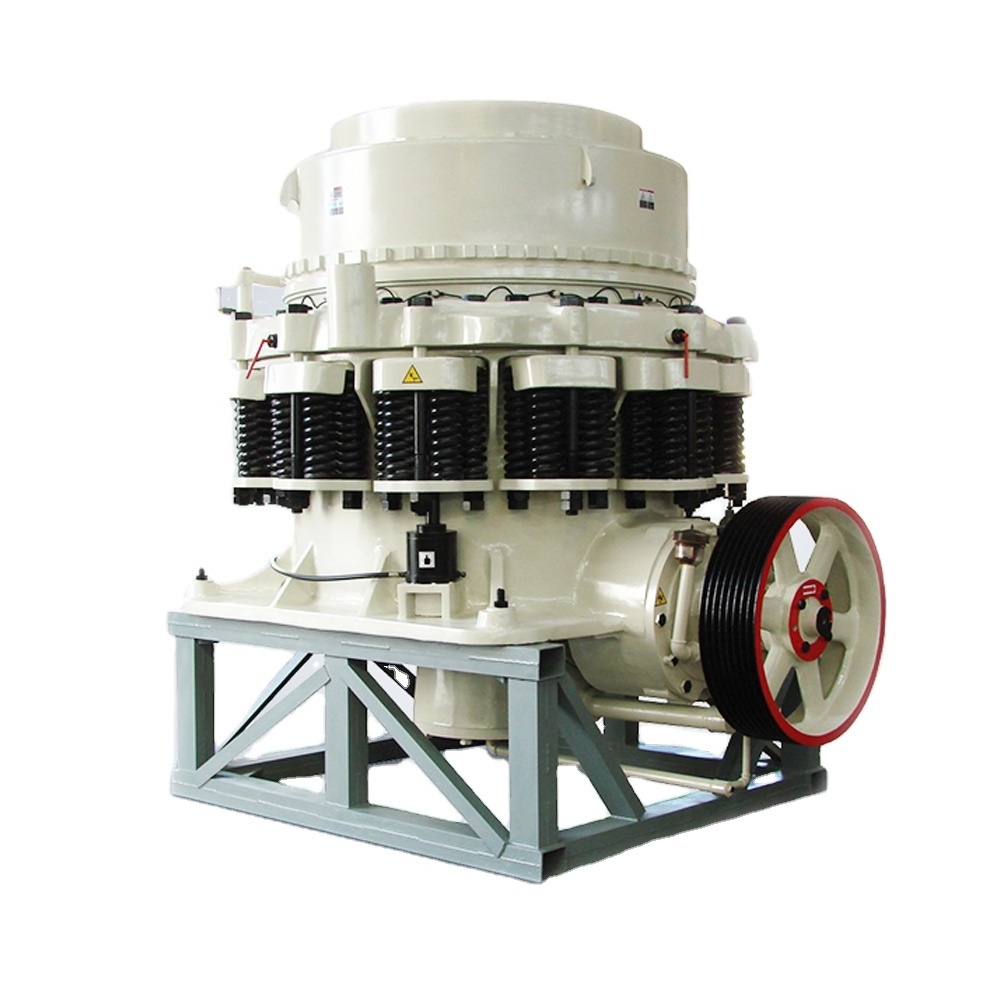

Product name:
-
Cone Crusher
-
Color:
-
Iron Grey/Yellow/Orange/As request
-
Installation:
-
Foundation Drawing/Engineer Guide
-
Max feeding size:
-
36-215mm
-
After sale Service:
-
Overseas
-
Spare parts supply:
-
Anytime
-
The Machines classification:
-
Crushing Line
-
Certification:
-
ISO/CE
Quick Details
-
Application:
-
Mining
-
Capacity(t/h):
-
110-200t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Unique
-
Dimension(L*W*H):
-
2805*2300*2980mm
-
Weight:
-
24.7t
-
Warranty:
-
15 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Cone Crusher
-
Color:
-
Iron Grey/Yellow/Orange/As request
-
Installation:
-
Foundation Drawing/Engineer Guide
-
Max feeding size:
-
36-215mm
-
After sale Service:
-
Overseas
-
Spare parts supply:
-
Anytime
-
The Machines classification:
-
Crushing Line
-
Certification:
-
ISO/CE
Application of Cone crushe
Cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level. it is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries.
Working Principle of Cone Crusher
When the Cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Advantages of Cone Crusher
1. Reasonable structure advanced crushing principle and technical specification, reliable work and
low cost.
2. Strong crushing ability; High efficient productivity; High capacity.
3. Reliable Hydraulic system providing safe and effective overload protection.
4. Two type of crushing chamber are for wide range of product size requirement.
5. High automation adopting hydraulic adjustment and hydraulic clean cavity setting.
6. Discharging size of the final product: 3-60mm
Cone Crusher Specification
| Type |
Dia. of cone
(mm) |
Discharge
setting (mm) |
Max Feed
Size (mm) |
Capacity
(t/h) |
Motor
Power (kw) |
Weight
(t) |
Overall
Dimension (mm) |
| PYB-600 | 600 | 12-25 | 62 | 15-25 | 30 | 5.5 | 2800×1300×1700 |
| PYD-600 | 3-13 | 36 | 5-23 | 30 | 5.5 | 2800×1300×1700 | |
| PYB-900 | 900 | 15-50 | 115 | 50-90 | 55 | 10.18 | 3020×1640×2350 |
| PYZ-900 | 5-20 | 60 | 20-65 | 55 | 10.19 | 3020×1640×2350 | |
| PYD-900 | 3-13 | 40 | 15-50 | 55 | 10.27 | 3020×1640×2350 | |
| PYB-1200 | 1200 | 20-50 | 145 | 110-200 | 110 | 24.7 | 4152×2300×1980 |
| PYZ-1200 | 8-26 | 100 | 50-150 | 110 | 25 | 4152×2300×1980 | |
| PYD-1200 | 3-15 | 50 | 18-105 | 110 | 25.6 | 4152×2300×1980 | |
| PYB-1750 | 1750 | 25-60 | 215 | 280-480 | 155-160 | 50.6 | 6020×2948×4192 |
| PYZ-1750 | 10-30 | 185 | 115-320 | 155-160 | 51 | 6020×2948×4192 | |
| PYD-1750 | 5-15 | 85 | 75-230 | 155-160 | 50.5 | 6020×2948×4192 | |
| PYB-2200 | 2200 | 30-60 | 300 | 590-1000 | 260-280 | 84 | 7705×3432×5057 |
| PYZ-2200 | 10-30 | 235 | 200-580 | 260-280 | 85 | 7705×3432×5057 | |
| PYD-2200 | 5-16 | 110 | 120-370 | 260-280 | 85 | 7705×3432×5057 |
