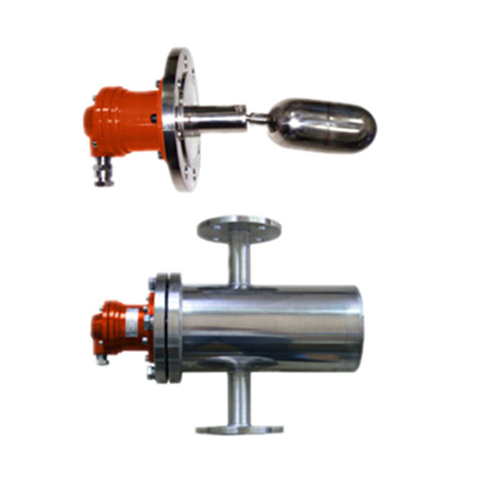

Quick Details
-
Brand Name:
-
Dongrun
-
Model Number:
-
UQK-01/02/03/04
-
Operating Pressure:
-
Standard type ≤ 1.0 MPa Explosion-proof type ≤ 4.0 MPa
-
Operating Temperature:
-
0 ~ 100℃, 0 ~ 150℃
-
Contact Capacity:
-
220VAC, 150W, 1A/3A
-
Medium Density:
-
≥ 0.65g/cm³
-
Materials:
-
Liquid contact parts - H62 or 1Cr18Ni9Ti
-
Electrical Interface:
-
M20*1.5 internal thread
-
Explosion-proof type:
-
dIIBT4 explosion-proof type, ibIICT4 intrinsically safe type
-
Flange Connection:
-
HG20592-97, DN80 PN4.0MPa / DN40 PN6.4MPa
-
Action Limits:
-
8 ~1000mm
-
Installation Method:
-
Horizontal or top-mounted
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dongrun
-
Model Number:
-
UQK-01/02/03/04
-
Operating Pressure:
-
Standard type ≤ 1.0 MPa Explosion-proof type ≤ 4.0 MPa
-
Operating Temperature:
-
0 ~ 100℃, 0 ~ 150℃
-
Contact Capacity:
-
220VAC, 150W, 1A/3A
-
Medium Density:
-
≥ 0.65g/cm³
-
Materials:
-
Liquid contact parts - H62 or 1Cr18Ni9Ti
-
Electrical Interface:
-
M20*1.5 internal thread
-
Explosion-proof type:
-
dIIBT4 explosion-proof type, ibIICT4 intrinsically safe type
-
Flange Connection:
-
HG20592-97, DN80 PN4.0MPa / DN40 PN6.4MPa
-
Action Limits:
-
8 ~1000mm
-
Installation Method:
-
Horizontal or top-mounted
Product Description
Specification
|
item
|
value
|
|
Grade
|
Industrial
|
|
Warranty
|
1 year
|
|
Customized support
|
OEM, ODM, OBM, Software reengineering
|
|
Place of Origin
|
China
|
|
|
Shandong
|
|
Brand Name
|
Dongrun
|
|
Model Number
|
UQK-01/02/03/04
|
|
Operating Pressure
|
Standard type ≤ 1.0 MPa
Explosion-proof type ≤ 4.0 MPa |
|
Operating Temperature
|
0 ~ 100℃, 0 ~ 150℃
|
|
Contact Capacity
|
220VAC, 150W, 1A/3A
|
|
Medium Density
|
≥ 0.65g/cm³
|
|
Materials
|
Liquid contact parts - H62 or 1Cr18Ni9Ti; Explosion-proof housing - ZL102, painted Electrical Interface: M20*1.5 internal thread
|
|
Explosion-proof type
|
dIIBT4 explosion-proof type, ibIICT4 intrinsically safe type
|
|
Electrical Interface
|
M20*1.5 internal thread
|
|
Flange Connection
|
Non-explosion-proof level switches use non-standard convex flanges; Standard flange for explosion-proof control connection:
HG20592-97, DN80 PN4.0MPa convex flange (see controller flange dimensions for details); UQK-(04) type flange is DN40 PN6.4MPa (user-made concave flange). |
|
Action Limits
|
8 ~1000mm
|
|
Installation Method
|
Horizontal or top-mounted
|
Packing & Delivery
liquid level switch is Standard export packing, carton packing, water proof, shock resistance
