Quick Details
-
Material:
-
copper or CCA
-
lock size:
-
250Lx42Wx25H(mm)
-
plate:
-
180Lx38Wx11H(mm)
-
Finishes for Magnetic:
-
Zinc
-
Finishes for Armature:
-
Zinc
-
Holding Force:
-
280kg (600Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Finishes for Shell:
-
Anodized aluminum surface texture processing
-
Weight:
-
2kg
-
Standard Packing:
-
12pcs
-
Certification:
-
CE FCC ROHS
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
S4A
-
Model Number:
-
EL-600
-
Material:
-
copper or CCA
-
lock size:
-
250Lx42Wx25H(mm)
-
plate:
-
180Lx38Wx11H(mm)
-
Finishes for Magnetic:
-
Zinc
-
Finishes for Armature:
-
Zinc
-
Holding Force:
-
280kg (600Lbs)
-
Voltage:
-
DC12V or DC24V (adjustable)
-
Finishes for Shell:
-
Anodized aluminum surface texture processing
-
Weight:
-
2kg
-
Standard Packing:
-
12pcs
-
Certification:
-
CE FCC ROHS

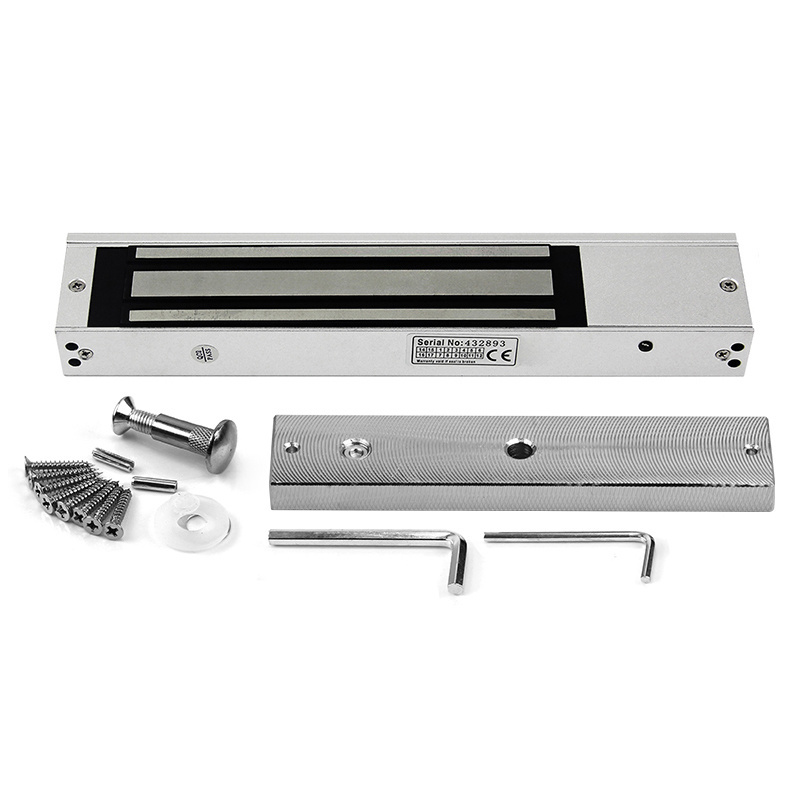

280kg 600lbs single door electromagnetic lock fail safe magnetic lock
> LED, door sensor and time delay
> Holding Force: 280KG (600Lbs)
> Voltage: DC12V and DC24V
> Lock Size: 250Lx48.5Wx25H(mm)
> Current Draw: 12V/500mA 24V/250mA
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
|
EL-600 |
Without indicator lights |
|
EL-600S |
With LED (Red only) |
|
EL-600SD |
LED, door sensor |
|
EL-600ST |
LED, door sensor, Time delay |
|
EL-600SZ |
LED, door sensor, Buzzer |
|
Lock size |
250Lx48.5Wx25H(mm) |
|
Plate |
180Lx38Wx11H(mm) |
|
Holding Force |
280kg (600Lbs) |
|
Voltage |
DC12V or DC24V (adjustable) |
|
Current Draw |
12V/500mA 24V/250mA |
|
Signal Output |
Dry Contact, Max Rating of Contact Current 3A |
|
Surface Temp |
≤20°C |
|
Operating Temp |
-10℃ ~ 55℃ (14°F~131°F) |
|
Suitable Humidity |
0~90%(non-condensing) |
|
Finishes for Shell |
Anodized aluminum surface texture processing |
|
Finishes for Magnetic |
Zinc |
|
Finishes for Armature |
Zinc |
|
Weight |
2kg |
|
Standard Packing |
10pcs |
