Quick Details
-
Brand Name:
-
HBYB
-
Model Number:
-
HBEUF
-
Medium:
-
Water, sea water, sewage, alcohol
-
Power supply:
-
AC220V or DC24V
-
Measuring range:
-
0~±10m/s
-
Accuracy:
-
±1.0%
-
Output:
-
4-20mA
-
display:
-
LCD
-
Medium turbidity:
-
≤20000ppmand the bubble content is small
-
Applicable pipe:
-
Carbon steel, stainless steel, cast iron, copper, PVC, aluminum
-
Flow direction:
-
Positive and negative two-way metering
-
Certification:
-
CE,ISO
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Ultrasonic flowmeter
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HBYB
-
Model Number:
-
HBEUF
-
Medium:
-
Water, sea water, sewage, alcohol
-
Power supply:
-
AC220V or DC24V
-
Measuring range:
-
0~±10m/s
-
Accuracy:
-
±1.0%
-
Output:
-
4-20mA
-
display:
-
LCD
-
Medium turbidity:
-
≤20000ppmand the bubble content is small
-
Applicable pipe:
-
Carbon steel, stainless steel, cast iron, copper, PVC, aluminum
-
Flow direction:
-
Positive and negative two-way metering
-
Certification:
-
CE,ISO
product information
Product Type
Due to different liquid,pipeline condition installation circumstance,choose different transducer

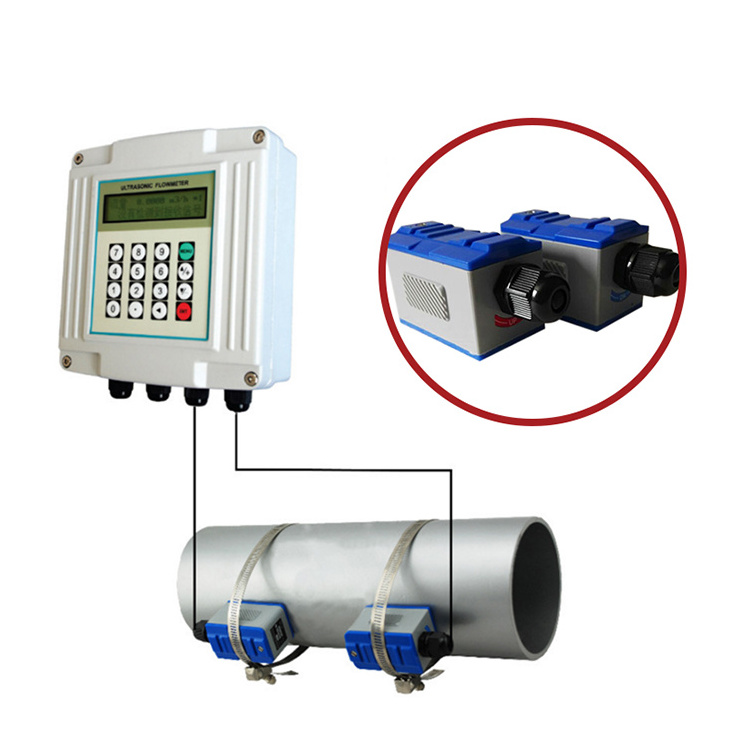

Products Show
|
Type
|
Performance,specification
|
|
|
|
Transmitter
|
Principle
|
Ultrasonic transit-time principle,Four-byte IEEE754 floating-point arithmetic
|
|
|
|
Accuracy
|
Better than ±1%
|
|
|
|
Display
|
LCD display with Chinese,English Display
|
|
|
|
Output
|
One 4-20mA Current output,Impedance0-1K,Accuracy 0.1%
|
|
|
|
|
One OCT Pulse output(Width 6-1000ms,Default200ms)
|
|
|
|
|
One Relays output
|
|
|
|
Input
|
Three 4-20mA Current input,accuracy 0.1%,can collect temperature,
pressure,level signals etc. |
|
|
|
|
Can connect with three-wire PT100 Plastnium resistance to measure heat flow
|
|
|
|
Data Interface
|
Isolated RS485 interface, can upgrade flowmeter through PC,support modbus
|
|
|
Cable
|
Normal below 50m;Select RS485 Communication,Transmission distance can over thousand meters.
|
|
|
|
Pipe
Condition |
material
|
Steel,Stainless steel,Cast iron,copper,PVC,aluminium,FRP etc.(liner allowed)
|
|
|
|
Diameter
|
15~6000mm
|
|
|
|
Installation
|
Upstream 10D,downstream 5D,30D away from the pump outlet(D for
diameter) |
|
|
Medium
|
Fluid
|
Water,sea water,acid liquid,beer,alcohol,oil and
any other liquid that can spread sonic |
|
|
|
Temperature
|
—30~160 ℃
|
|
|
|
Turbidity
|
10000ppm and with little bubbles
|
|
|
|
Velocity
|
0 ~± 10m/s
|
|
|
Operating
Environment |
Temperature
|
Transmitter:-20~60 ℃;Transducer:-30~160 ℃
|
|
|
|
Humidity
|
Transmitter:85%RH;transmitter protection grade:IP68;Water Depth<2m
|
|
|
Power Supply
|
DC8-36V or AC85-264V
|
|
|
|
Consumption
|
1.5W
|
|
|
Product details
Physical Map
FAQ：
Can I buy the sample separately?
A: Of course, many customers will choose to buy a sample to check the quality before placing a large order.
Can you customize the products according to the customer's needs?
A: Yes, dear, we can customize the specifications you want according to your requirements.
Is there a discount for purchasing products?
A: Yes, if you buy a large number of products, we will give you a partial discount.You can follow our store, if there is an
event,you can receive the notice in the first time.
A: Of course, many customers will choose to buy a sample to check the quality before placing a large order.
Can you customize the products according to the customer's needs?
A: Yes, dear, we can customize the specifications you want according to your requirements.
Is there a discount for purchasing products?
A: Yes, if you buy a large number of products, we will give you a partial discount.You can follow our store, if there is an
event,you can receive the notice in the first time.
