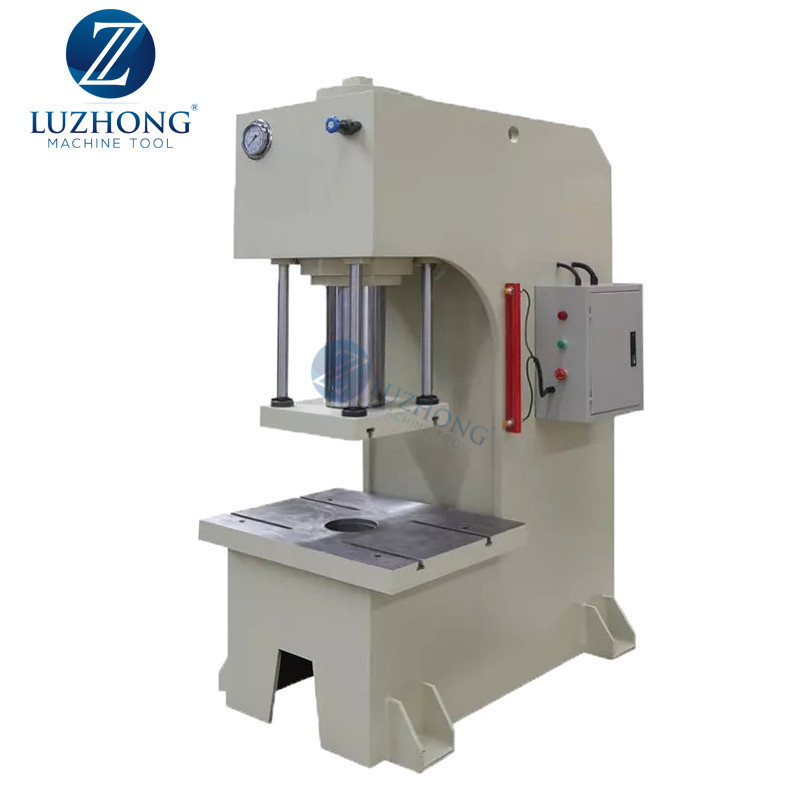

hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine
hydraulic power press YQ41series small hydraulic press forging machine

hydraulic power press YQ41series small hydraulic press forging machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $6000
≥10 Sets
US $5450
≥20 Sets
US $5000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Brand Name:
LUZHONG
Voltage:
customried
Dimension(L*W*H):
1300x950x2400mm
Weight (T):
2.45 T
Model Number:
YQ41-100T
Motor Power (kw):
5.5 kw
Warranty of core components:
13 months
Name:
hydraulic power press YQ41series small hydraulic press forging machine
Nominal pressure:
1000KN
Max.hydraulic pressure:
28MPA
Head trip:
500mm
Opening height:
800mm
Throat depth:
350mm

Quick Details

Machine Type:
Single Column Hydraulic Press
Ejector Force (kN):
600
Return Force (kN):
600 kN
Place of Origin:
Shandong, China
Brand Name:
LUZHONG
Voltage:
customried
Dimension(L*W*H):
1300x950x2400mm
Weight (T):
2.45 T
Model Number:
YQ41-100T
Motor Power (kw):
5.5 kw
Warranty of core components:
13 months
Name:
hydraulic power press YQ41series small hydraulic press forging machine
Nominal pressure:
1000KN
Max.hydraulic pressure:
28MPA
Head trip:
500mm
Opening height:
800mm
Throat depth:
350mm
Product Description
The main performance characteristics:
The HP-S series mandrel presses have the advantages of small volume ,simple structure, and little cost.
Application:
The machine is suitable for operating in the open airor the other special situation.
Product main technical parameters:
Specification
Unit
YQ41-100T
Nominal pressure
kN
1000
Max.hydraulic pressure
MPA
28
Head trip
mm
500
Opening height
mm
800
Throat depth
mm
350
Table size
mm
700x600
Upper head size
mm
400x400
Table height
mm
700
Piston rod diameter
mm
Ø160
Hydraulic cylinder diameter
mm
Ø215
Drop opening size
mm
Ø150
Fast forward speed
Mm/s
15
Work speed
Mm/s
8-15
Return speed
Mm/s
37
The motor
kw
5.5
Machine size
mm
950x1300x2400
Weight
mm
2450
