Quick Details
-
Brand Name:
-
Yezon
-
Model Number:
-
YZ2219
-
Material:
-
ABS, Plastic
-
Product name:
-

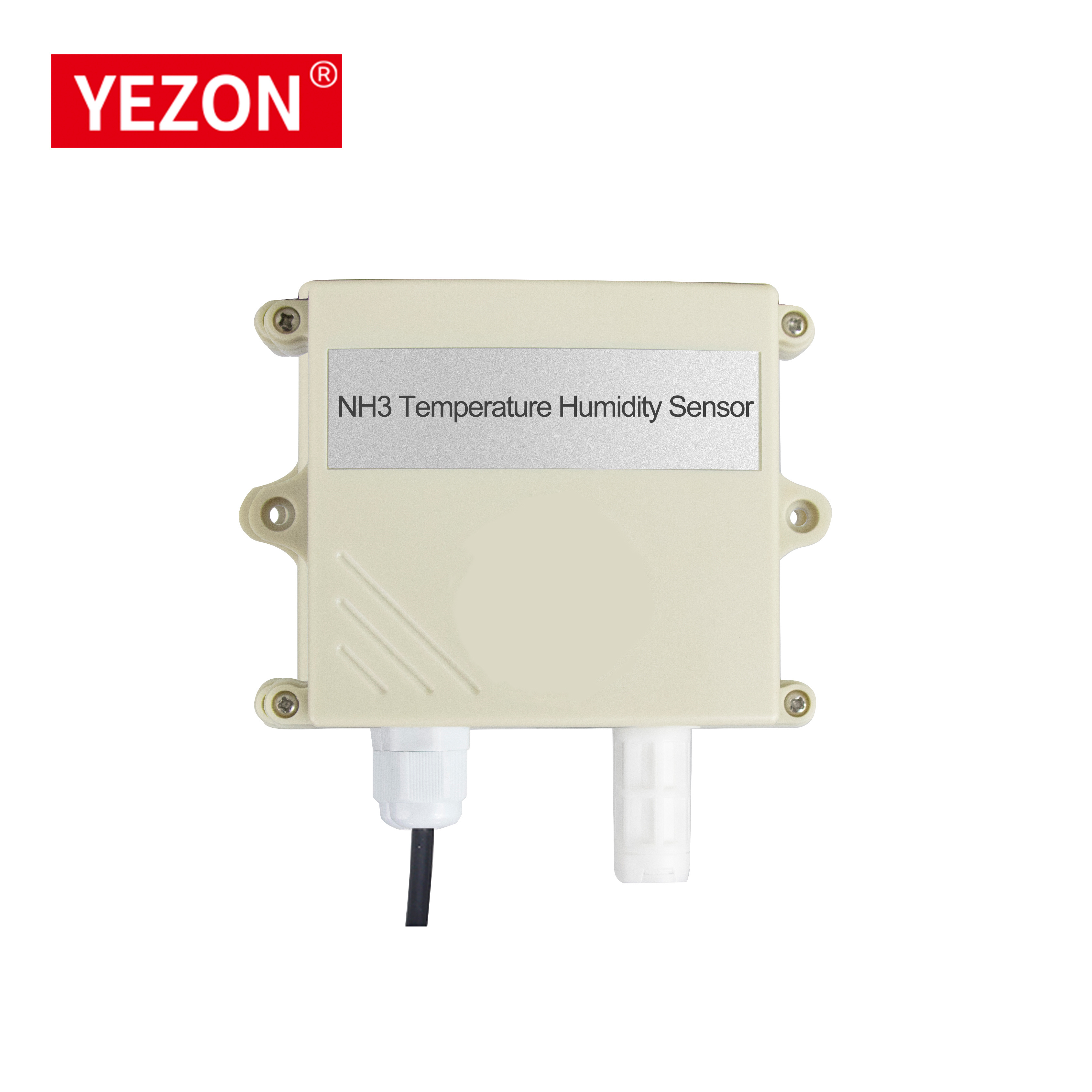

NH3 Humidity And Temperature Sensor
-
Power supply:
-
10-30VDC
-
Application:
-
Industrial Temperature Measuring
-
Feature:
-
Temperature Measurement
-
Temperature range:
-
(-40) ~80℃
-
Output signal:
-
RS485 Output
-
Sensor:
-
Built-in Sensor
-
MOQ:
-
2pcs
-
Keywords:
-
NH3 Temperature Humidity Transmitter
Quick Details
-
Type:
-
infrared
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Yezon
-
Model Number:
-
YZ2219
-
Material:
-
ABS, Plastic
-
Product name:
-
NH3 Humidity And Temperature Sensor
-
Power supply:
-
10-30VDC
-
Application:
-
Industrial Temperature Measuring
-
Feature:
-
Temperature Measurement
-
Temperature range:
-
(-40) ~80℃
-
Output signal:
-
RS485 Output
-
Sensor:
-
Built-in Sensor
-
MOQ:
-
2pcs
-
Keywords:
-
NH3 Temperature Humidity Transmitter
|
Power supply
|
10~30VDC
|
|
Output signal
|
RS485/4-20mA/0-5V/0-10V
|
|
Temperature range
|
-40℃~+80℃
|
|
Humidity range
|
0~100%RH
|
|
Temperature accuracy
|
±0.5℃
|
|
Humidity accuracy
|
±3%RH
|
|
Working temperature
|
-20℃~+50℃
|
|
Working humidity
|
15~90%RH non-condensing
|
|
Pressure resistance
|
90~110Kpa
|
|
Stability
|
≤2% value/month
|
|
Working life
|
≥24 month
|
|
Response time
|
50,100ppm≤90s; 500ppm≤25s
|
|
Power consumption
|
0.12W(0~50ppm); 0.12W(0~100ppm); 0.9W(0~500ppm)
|
|
Warm-up time
|
≥5min(0~50ppm); ≥5min(0~100ppm); ≥4min(0~500ppm);
|
|
Ammonia zero drift
|
≤±2ppm(0~50ppm); ≤±2ppm(0~100ppm); ≤±15ppm(0~500ppm);
|
|
Ammonia accuracy
|
±8%FS(0~50ppm); ±8%FS(0~100ppm); ±5%FS(0~500ppm);
Oxygen content ≥ 18% VOL
|
|
Ammonia resolution
|
0.1ppm(0~50ppm); 1ppm(0~100ppm); 1ppm(0~500ppm);
|
|
|
|
Characteristic
A.
High precision sensor imported by Switzerland，High measurement accuracy.
B.
Use RS485 communication,the scope of application is wide.10-30 widely power supply.
C.
Complete specifications, easy to install.
|
Power supply
|
DC 10-30V
|
|
|
|
Max power
|
0.1W（DC24V）
|
|
|
|
NH3 Accuracy
|
0~50ppm, 0~100ppm
|
±8%(50%RH,25℃)
|
|
|
|
0~500ppm
|
±5℃（25℃）
|
|
|
Temperaure Humidity Accuracy
|
humidity
|
±3%RH(60%RH,25℃)
|
|
|
|
temperature
|
±0.5℃（25℃）
|
|
|
Environmental Temp
|
-40℃~+60℃，0%RH~95%RH（The condensation）
|
|
|
|
Environmental Temp. for probe
|
-40℃~+120℃ default：-40℃~+80℃
|
|
|
|
Environmental humidity for probe
|
0%RH-100%RH
|
|
|
|
Resolution of temperature display
|
0.1℃
|
|
|
|
Resolution of humidity display
|
0.1%RH
|
|
|
|
Refresh rate
|
1s
|
|
|
|
Long-term stability
|
humidity
|
≤1%RH/y
|
|
|
|
temperature
|
≤0.1℃/y
|
|
|
Response time
|
humidity
|
≤8s(1m/s wind speed)
|
|
|
|
temperature
|
≤25s(1m/s wind speed)
|
|
|
Output signal
|
4-20mA/0-5V/0-10V/RS485(Modbus)
|
|
|
|
installation
|
wall-mounted
|
|
|
