China Supplier Precision Electroplating Double-tower Copper Filter Chemical Water Activated Carbon Filter

China Supplier Precision Electroplating Double-tower RTS2008-2018 Series Chemical Liquid Medicine Filter Electroplating Liquid Filter

Features:

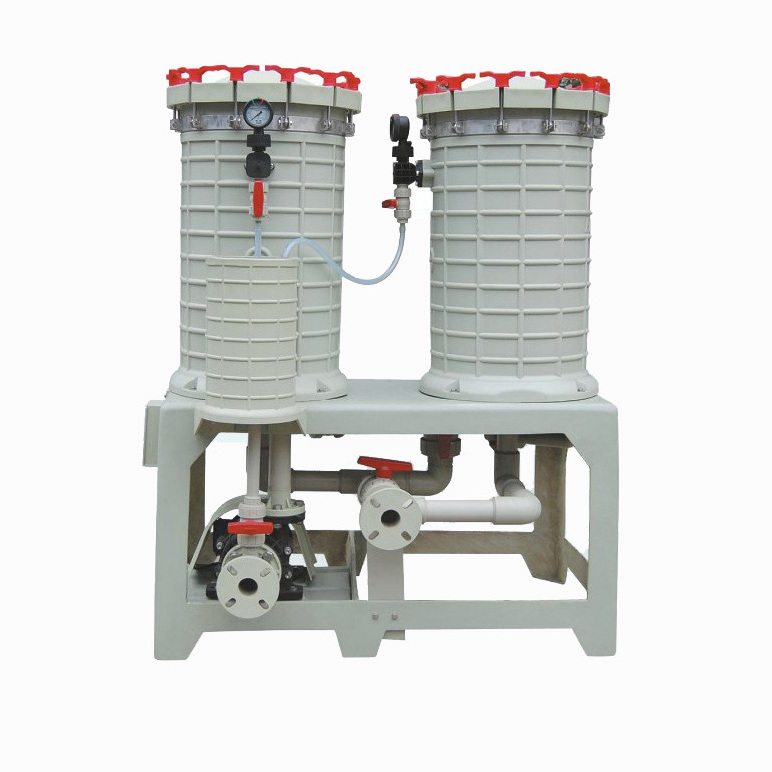

1.This filter is designed with double-tower filter vat. the first tower is mainly used to filter granular impurities

in the liquid medicine; the second tower removes organic compounds in the liquid medicine through            active carbon filtration; and then the third step is to filter the liquid medicine through the filter element in      the lower part of active carbon vat, making the liquid medicine cleaner.

2. The filter medium in the first tower is optional for filter element, filter paper, carambola and filter tube,           which are interchangeable.

3. ONE PIECE INJECTED WITHOUT WELDING OF FILTER BODY and stand are adopted the integrative              mould and increase the intensity of the filter body with the projection rib.

4. According to the chemical density and temperature feature to inject the filter body, the material of filter                 body can be made of PP,CPVC, or PVDF, w hich has the characteristics of high temperature resistance,               acid and alkali resistance.

5. The least welding of filter in the filter field, it greatly decrease the leakage.

6. Assemble with self-priming pump or magnetic drive pump is depend on customer. If with magnetic drive              pump, it can avoid the problem of dry running leakage and environment pollution.

7. The same machine can be used for different filter element materials: lock core filter, paper filter and

bag filter and so on.

8. Safety switch device, when the motor is overloaded or single load, the safety switch automatically cuts off            the power supply.

9. Humanized component design, production of all parts by mold opening,100% easy to exchange                parts, and can be changed at any time according to different filter materials.

10. The motor protective cover ensures that the motor is not easy to be corroded in acid gas.

11. it is equipped with a bottom valve and a check valve , also equipped with a group of PVC or PP flange at             the inlet and outlet.

12. Standard accessories: union or flange (with gasket and PVC screws).

13. Purchase accessories: switch (include guard),foot valve, check valve, flow-seeing tube, in/outlet flexible,             or filter bag, etc.

Technical Parameters :

Structural Feature :

Application fields and cases
