Quick Details
-
Model Number:
-
HBSS-19
-
Wire Gauge:
-
1.8-2.8mm
-
Name:
-
Galvanized Wire
-
Common wire diameter:
-
2.2mm, 2.5mm 2.6mm
-
Coil weight:
-
50kg/coil
-
Tensil:
-
550-800MPA
Quick Details
-
Function:
-
making hangers
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SHENGSEN
-
Model Number:
-
HBSS-19
-
Wire Gauge:
-
1.8-2.8mm
-
Name:
-
Galvanized Wire
-
Common wire diameter:
-
2.2mm, 2.5mm 2.6mm
-
Coil weight:
-
50kg/coil
-
Tensil:
-
550-800MPA

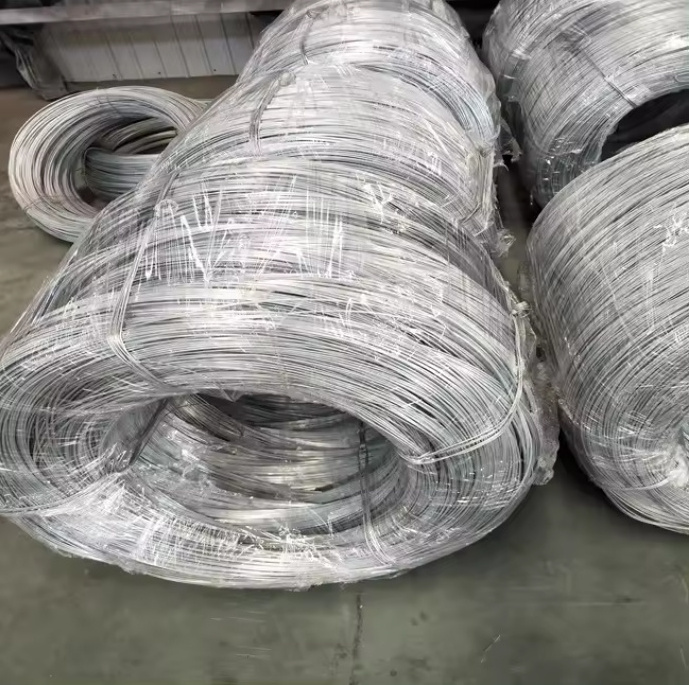

Galvanized Redrawn Wire for making wire handles
Galvanized wire is also called galvanized iron wire, zinc coated iron wire, low carbon galvanized steel wire, soft bright iron wire. We are the real factory and sell the galvanized wire and redrawn steel wire directly by our factory.
Use:
galvanized redrawn steel wire is mainly used for making of wire handles, wire hangers and form wire etc.
Materials: (a). Mild steel wire (b). bullet wire (c). high-carbon steel wire.
Wire gauge size: BWG8# 14# 16# 18# 20# 21# 22#
Processing :
First draw (the material of wire rod to the right wire diameter0---Wire Annealing---Rust Removing--- Acid Washing--- Boiling--- Drying--- Zinc Feeding--- Wire Coiling.
Zinc coating: 8-15g/mm2 electro galvanized, 30-70g/mm2 hot dip galvanized, 100-500g/mm2 heavy duty galvanized zinc coat.
Elongation: 10-15% for low carbon steel wire
Tensile strength: 350-550n/mm2 soft, 550-950n/mm2 hard drawn, 1000-2600n/mm2 high tensile strength.
|
Gauge |
SWG
|
BWG
|
Gauge |
SWG
|
BWG
|
|
0 |
8.230 |
8.636 |
26 |
0.457 |
0.457 |
|
1 |
7.620 |
7.620 |
27 |
0.417 |
0.406 |
|
2 |
7.010 |
7.214 |
28 |
0.376 |
0.356 |
|
3 |
6.401 |
6.579 |
29 |
0.345 |
0.330 |
|
4 |
5.893 |
6.045 |
30 |
0.315 |
0.305 |
|
5 |
5.385 |
5.588 |
31 |
0.295 |
0.254 |
|
6 |
4.877 |
5.156 |
32 |
0.274 |
0.229 |
|
7 |
4.470 |
4.572 |
33 |
0.254 |
0.203 |
|
8 |
4.064 |
4.191 |
34 |
0.234 |
0.178 |
|
9 |
3.658 |
3.759 |
35 |
0.213 |
0.127 |
|
10 |
3.251 |
3.404 |
36 |
0.193 |
0.102 |
|
11 |
2.946 |
3.048 |
37 |
0.173 |
* |
|
12 |
2.642 |
2.769 |
38 |
0.152 |
* |
|
13 |
2.337 |
2.413 |
39 |
0.132 |
* |
|
14 |
2.032 |
2.108 |
40 |
0.122 |
* |
|
15 |
1.829 |
1.829 |
41 |
0.112 |
* |
|
16 |
1.626 |
1.651 |
42 |
0.102 |
* |
|
17 |
1.422 |
1.473 |
43 |
0.091 |
* |
|
18 |
1.219 |
1.245 |
44 |
0.081 |
* |
|
19 |
1.016 |
1.067 |
45 |
0.071 |
* |
|
20 |
0.914 |
0.889 |
46 |
0.061 |
* |
|
21 |
0.813 |
0.813 |
47 |
0.051 |
* |
|
22 |
0.711 |
0.711 |
48 |
0.041 |
* |
|
23 |
0.610 |
0.635 |
49 |
0.031 |
* |
|
24 |
0.559 |
0.559 |
50 |
0.025 |
* |
|
25 |
0.508 |
0.508 |
|
|
