Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB16T1-P10F-ERGB/A
-
Mounting hole diameter:
-
16mm
-
Head Shape:
-
Flat Round Head
-
Switch combination:
-
1NO
-
Operation type:
-
Momentary
-
Terminal type:
-
4 Pin terminals
-
Material:
-
Black housing
-
Illuminated type:
-
Ring Led
-
Led color:
-
Blue(or Red/Orange/White/Green/Yellow)
-
Led voltage:
-
12V
-
Product name:
-
Switch push button
-
Certification:
-
CE/ROHS
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
2A
-
Max. Voltage:
-
250V AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB16T1-P10F-ERGB/A
-
Mounting hole diameter:
-
16mm
-
Head Shape:
-
Flat Round Head
-
Switch combination:
-
1NO
-
Operation type:
-
Momentary
-
Terminal type:
-
4 Pin terminals
-
Material:
-
Black housing
-
Illuminated type:
-
Ring Led
-
Led color:
-
Blue(or Red/Orange/White/Green/Yellow)
-
Led voltage:
-
12V
-
Product name:
-
Switch push button
-
Certification:
-
CE/ROHS
Products Description

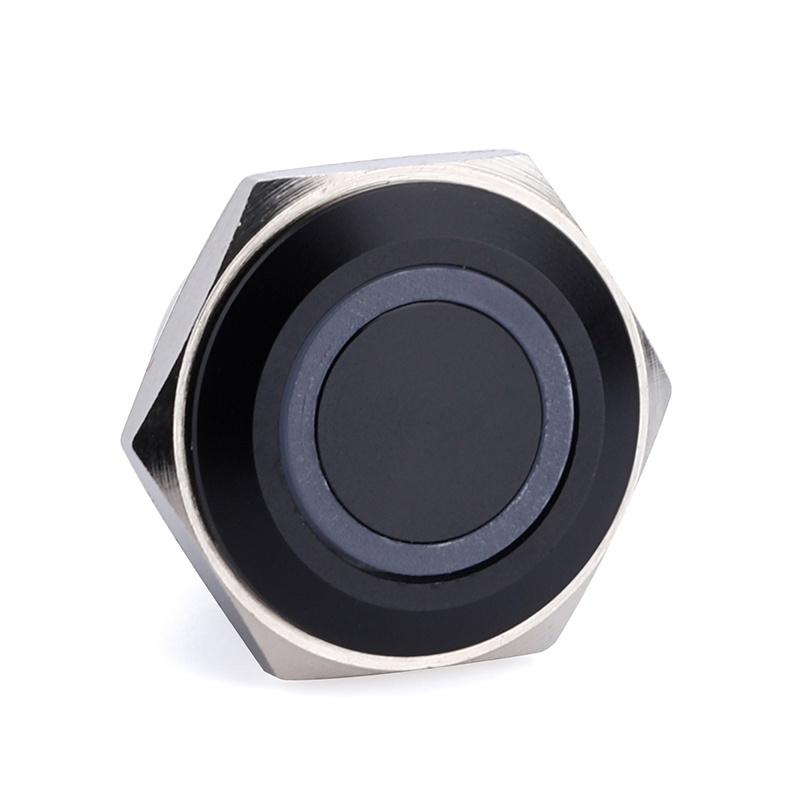

ON/OFF ILLUMINATED PUSH BUTTON SWITCH:
2/4 pin metal momentary auto reset push-button switch, push it, remain on, release the finger, get off.
Mounting Hole: 12mm/16mm/19mm/22mm/25mm/30mm is optional
EASY TO CONNECT & DURABLE:
Momentary pushbutton switch with pre-soldered cable, convenient for wire connection, no need connector socket.
Lifetime can up to 500,000 cycles, durable and antirust.
LIGHTED Slef reset PUSHBUTTON SWITCH:
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
WATERPROOF MARINE SWITCH:
This momentary push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION：
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
|
Product Name
|
Push button switch
|
|
Model
|
IB16T1-P10F-ERGB/A
|
|
Mounting Hole
|
16mm
|
|
Operation Type
|
Momentary
|
|
Switch Combination
|
1NO
|
|
Head Type
|
Flat head
|
|
Terminal type
|
Solder Terminal
|
|
Enclosure Material
|
Black housing
|
|
Delivery Days
|
3-7 days after payment received
|
|
Contact Resistance
|
50 mΩ max
|
|
Insulation Resistance
|
1000MΩ Min
|
|
Dielectric Intensity
|
2000VAC
|
|
Operating Temperature
|
-20°C ~+55°C
|
|
Wire Connector / Wire soldering
|
Acceptable and with fast shipping
|
|
Accessories
|
Nut, Rubber ,Waterproof O-ring
|
