Magnetic Door Contact Reed Switch Z-Wave Smart Home Alarm Security System

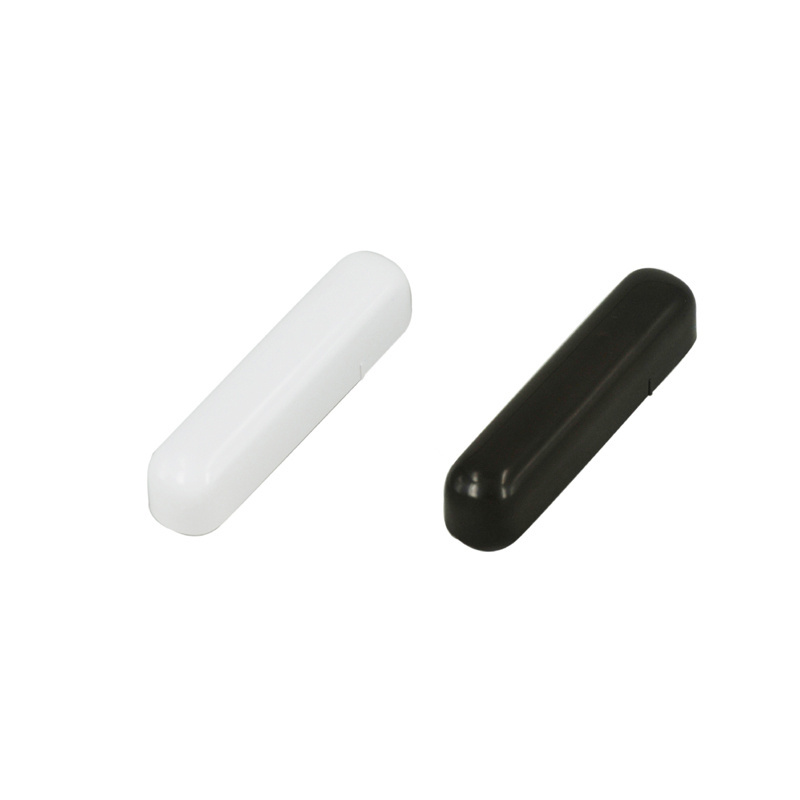

Sentek’s ZC-100 surface mount sensor is a battery-powered Z-wave magnetic door/window contact sensor for surface mounting. ZC-100 send radio signals when the Switch and actuate-magnet separate. By take advantage of Z-wave mesh network, commands can be routed to their destination via intermediary “listening” Z-Wave products. Products that are Z-Wave certified can be used and communicate with other Z-wave certified devices
The Sentek Door / Window Sensor is designed for use with scenes in home automation systems, alarm and surveillance systems and everywhere else where information related to opening / closing of doors, windows, garage gates, etc. is needed. suitable for smart home system.

Specification:

Magnetic Door Contact Reed Switch Z-Wave Smart Home Alarm Security System

Product Features:

. Surface mount for door/window etc.

. Use Z-wave Plus Protocol

. Two Tamper switches built: one for case removing, one for mounting removing

. The tamper switch on the back used for programing also

. Internal built with four terminals for external input

. Remote LED enable for detection indication from CIE

. Optional two installation ways: adhesive tape or screws

. Powered battery, for 3 year lite time (50 cycle/day)

. Meet EN50131-2-6 Grade 2, Class II

. Meet UL634

Order Information:

. Power Supply: Single ER14335 (2/3AA)  3.6V battery

. Input: single, potential-free/ single, DS18B20

. Operating Temp.: 0 – 40 °C

. Radio Protocol: Z-Wave Plus

. Radio Frequency: 8,4 MHz EU; 908,4 MHz US; 921,4 MHz AU/NZ; 869,2 MHz RU;

. Range: up to 30 meters indoors, depending on building materials used and the building structure

. Dimensions (LxWxH): 84* 23 *20 mm
