Quick Details
-
Brand Name:
-
/
-
Model Number:
-
S1730S-S24T4X-A1, S1730S-S24T4X-A1
-
Place of Origin:
-
Beijing, China, Beijing, China
-
Description:
-
24*10/100/1000BASE-T ports, 4*XGE SFP+ ports, AC power
-
First supported version:
-
V200R020C10
-
Chassis height:
-
1 U
-
Dimensions (W x D x H):
-
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
-
Maximum power consumption:
-
47.6 W
-
Rated input voltage:
-
AC input: 100 V AC to 240 V AC, 50/60 Hz
-
Warranty:
-
1 Year
Quick Details
-
Transmission Rate:
-
96 Mpps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
336Gbps
-
Brand Name:
-
/
-
Model Number:
-
S1730S-S24T4X-A1, S1730S-S24T4X-A1
-
Place of Origin:
-
Beijing, China, Beijing, China
-
Description:
-
24*10/100/1000BASE-T ports, 4*XGE SFP+ ports, AC power
-
First supported version:
-
V200R020C10
-
Chassis height:
-
1 U
-
Dimensions (W x D x H):
-
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
-
Maximum power consumption:
-
47.6 W
-
Rated input voltage:
-
AC input: 100 V AC to 240 V AC, 50/60 Hz
-
Warranty:
-
1 Year
Details Images
Installation Instructions
We will test all the switches before shipping. All the switches are new and original
|
|

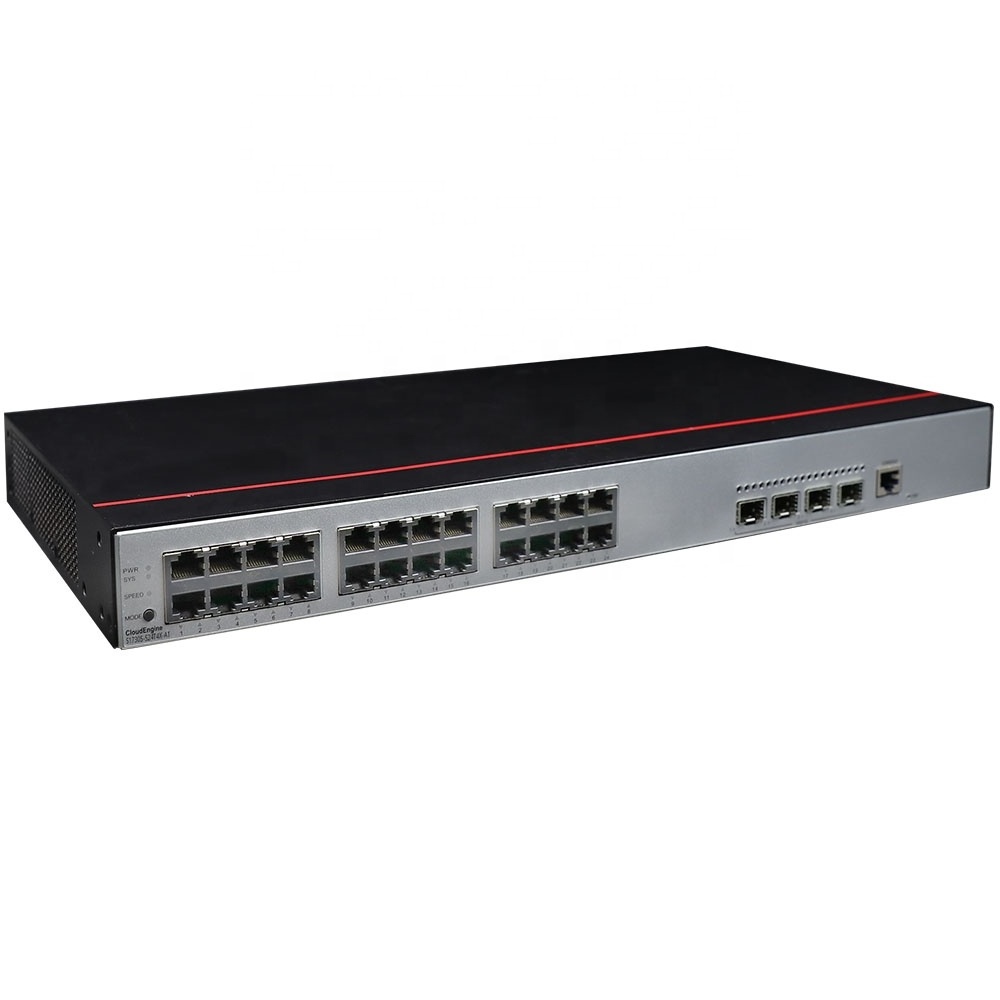

Managed Network Switch S1730S-S24T4X-A1 Ethernet Access Switch
|
|
Description
|
S1730S-S24T4X-A1 (24*10/100/1000BASE-T ports, 4*XGE SFP+ ports, AC power)
|
|
Part Number
|
98011311
|
|
First supported version
|
V200R020C10
|
|
Dimensions(H x W x D)
|
43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
|
|
Chassis height
|
1 U
|
|
Maximum power consumption
|
47.6 W
|
|
Maximum heat dissipation
|
162.42 BTU/hour
|
|
Rated input voltage
|
AC input: 100 V AC to 240 V AC, 50/60 Hz
|
|
Input voltage range
|
AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
|
|
Maximum input current
|
2 A
|
|
Memory
|
512 MB
|
|
Flash memory
|
512 MB
|
Managed Network Switch S1730S-S24T4X-A1 Ethernet Access Switch
CloudEngine S1730S series switches are designed for small to medium-sized businesses, including Internet cafes, hotels, schools, and others. With feature-rich services and a silent energy-saving design that’s easy to install and maintain, CloudEngine S1730S helps customers build secure, reliable, and high-performance networks.
Product Selling Points
Wide-Ranging Applications
An extensive range of switches that provides web-managed and fully-managed functions, meeting customer needs in different
scenarios.
scenarios.
Silent Energy-Saving Design
Ports idle at low power, pushing power consumption down. A fan-free design minimizes noise levels and further reduces power
consumption.
consumption.
Security and Non-Blocking Forwarding
Comprehensive security features, with multiple authentication modes such as 802.1x, Portal, and MAC address. Line-rate forwarding
capabilities ensure non-blocking packet forwarding on all ports.
capabilities ensure non-blocking packet forwarding on all ports.
