Quick Details
-
Filling Accuracy:
-
Acuracy99.9%
-
Voltage:
-
208-415V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPSPACK
-
Dimension(L*W*H):
-
970mm * 230mm * 2000mm
-
Weight:
-
300 KG
-
Material:
-
Stainless Steel 304 /316
-
Filling Speed:
-
15-40 bottles per min
-
Filling material:
-
powder, granular, grain
-
Packing Weight:
-
10 - 5000g
-
Usage:
-
powder fillling
-
Filling volume:
-
100ml-500ml
-
Production capacity:
-
20-50bottles/min
-
Control:
-
PLC+ Touch Screen
-
Feature:
-
High Effective
-
Product name:
-
automatic small auger filler loose powder tin can filling machine
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 16000BPH
-
Packaging Material:
-
Plastic, Paper, Metal, Glass
-
Filling Material:
-
Beer, Other, Milk, Water, Juice, Powder
-
Filling Accuracy:
-
Acuracy99.9%
-
Voltage:
-
208-415V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TOPSPACK
-
Dimension(L*W*H):
-
970mm * 230mm * 2000mm
-
Weight:
-
300 KG
-
Material:
-
Stainless Steel 304 /316
-
Filling Speed:
-
15-40 bottles per min
-
Filling material:
-
powder, granular, grain
-
Packing Weight:
-
10 - 5000g
-
Usage:
-
powder fillling
-
Filling volume:
-
100ml-500ml
-
Production capacity:
-
20-50bottles/min
-
Control:
-
PLC+ Touch Screen
-
Feature:
-
High Effective
-
Product name:
-
automatic small auger filler loose powder tin can filling machine

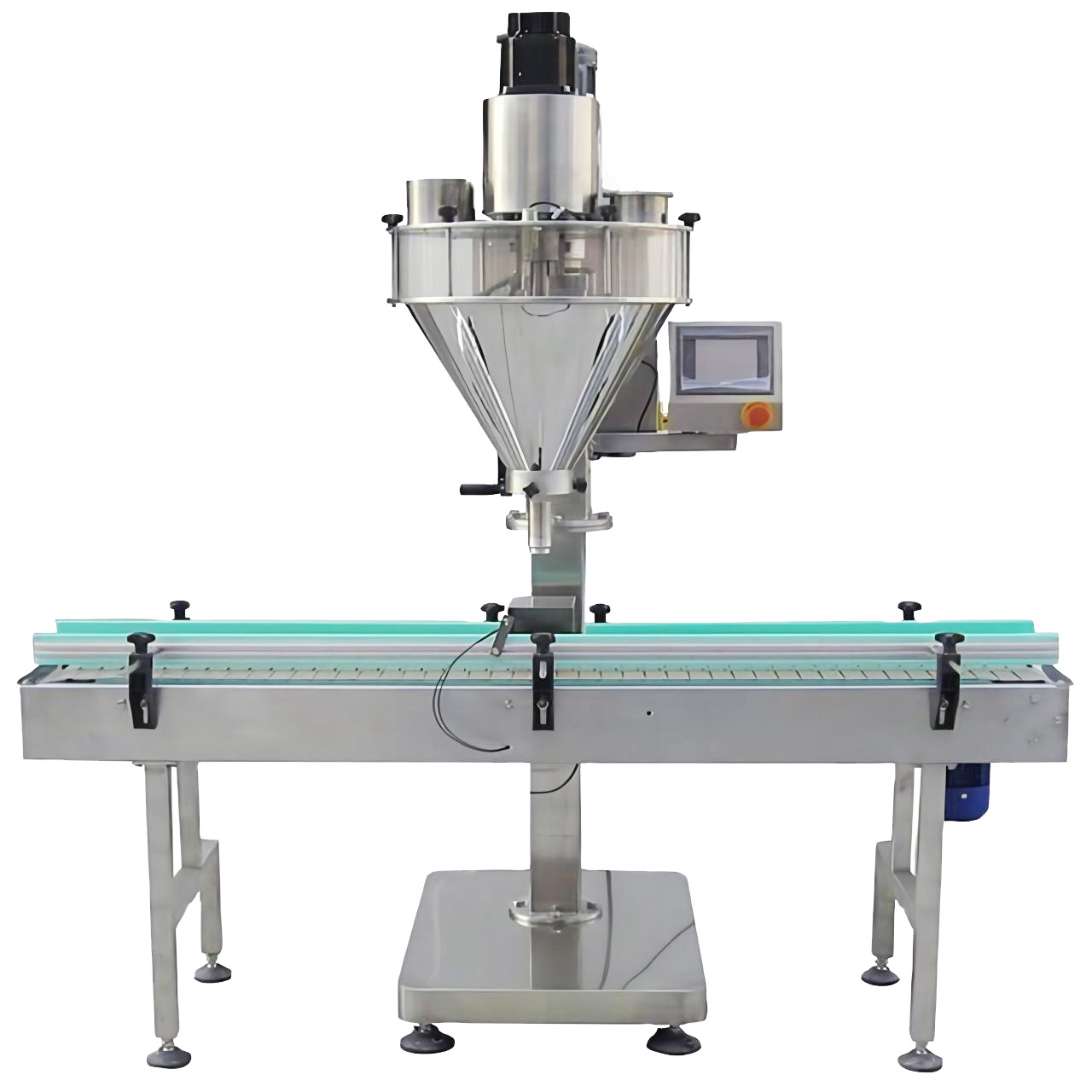

Automatic Auger Filler
TDPM Series
This type of machine can perform a dosing and filling process. With regards to the special professional design, it is more suitable on the fluidic or low- fluidity materials such as coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Level split hopper
It is very easy to open
hopper and it is alsoeasy for cleaning.
It is very easy to open
hopper and it is alsoeasy for cleaning.
Screw type
The material will not be
stock and easy for cleaning.
The material will not be
stock and easy for cleaning.
Fully welded materials, even Hopper's sides and it'easy to clean.
Stainless steel typeIt's easy to clean and presentable.
It gives signal to loader when material lever is low, it does feeding automatically.
6. HAND WHEEL
It is suitable for filling into bottles/bags with different height.
It is suitable for filling products with very good fluidity, such as, salt, white sugar etc.
For automatic
moving bottles.
|
Model
|
TP-PF-A21N
|
|
TP-PF-A22N
|
|
||
|
Control system
|
PLC & Touch Screen
|
|
PLC & Touch Screen
|
|
||
|
Hopper
|
25L
|
|
50L
|
|
||
|
Packing Weight
|
1 - 500g
|
|
10 - 5000g
|
|
||
|
Weight dosing
|
By auger
|
|
By auger
|
|
||
|
Packing Accuracy
|
≤ 100g, ≤±2%; 100 – 500g,
≤±1% |
|
≤ 100g, ≤±2%; 100 – 500g,
≤±1%; ≥500g,≤±0.5% |
|
||
|
Filling Speed
|
40 – 120 times per min
|
|
40 – 120 times per min
|
|
||
|
Power Supply
|
3P AC208-415V 50/60Hz
|
|
3P AC208-415V 50/60Hz
|
|
||
|
Total Power
|
1.2 KW
|
|
1.6 KW
|
|
||
|
Total Weight
|
160kg
|
|
300kg
|
|
||
|
Overall Dimensions
|
1500×760×1850mm
|
|
2000×970×2300mm
|
|
||
|
No.
|
Name
|
Pro.
|
Autonics
|
|
1
|
PLC
|
Taiwan
|
DELTA
|
|
2
|
Touch Screen
|
Taiwan
|
DELTA
|
|
3
|
Servo Motor
|
Taiwan
|
DELTA
|
|
4
|
Servo Driver
|
Taiwan
|
DELTA
|
|
5
|
Switching Powder Supply
|
|
Schneider
|
|
6
|
Emergency Switch
|
|
Schneider
|
|
7
|
Contactor
|
|
Schneider
|
|
8
|
Relay
|
|
Omron
|
|
9
|
Proximity Switch
|
Korea
|
Autonics
|
|
10
|
Level Sensor
|
Korea
|
Autonics
|
AUGER SCREW AND TUBE
In order to make sure filling accuracy, one size screw is suitable for one weight range, for example, dia.
38mm screw is suitable for filling 100g-250g.
|
Order
|
Cup
|
Inner Diameter
|
Outer Diameter
|
Filling Range
|
|
1
|
8#
|
8
|
12
|
|
|
2
|
13#
|
13
|
17
|
|
|
3
|
19#
|
19
|
23
|
5-20g
|
|
4
|
24#
|
24
|
28
|
10-40g
|
|
5
|
28#
|
28
|
32
|
25-70g
|
|
6
|
34#
|
34
|
38
|
50-120g
|
|
7
|
38#
|
38
|
42
|
100-250g
|
|
8
|
41#
|
41
|
45
|
230-350g
|
|
9
|
47#
|
47
|
51
|
330-550g
|
|
10
|
53#
|
53
|
57
|
500-800g
|
|
11
|
59#
|
59
|
65
|
700-1100g
|
|
12
|
64#
|
64
|
70
|
1000-1500g
|
|
13
|
70#
|
70
|
76
|
1500-2500g
|
|
14
|
77#
|
77
|
83
|
2500-3500g
|
|
15
|
83#
|
83
|
89
|
3500-5000g
|
