Quick Details
-
Model Number:
-
MDA-8004/ MDA13004
-
Dimension:
-
483 x 377 x 88.9mm
-
Power Supply Mode:
-
other
-
Storage:
-
N/A
-
SNR:
-
110dB@20Hz-20KHz
-
Output Power:
-
3200W / 5200W
-
Shell Material:
-
Metal
-
Format:
-
N/A
-
The body material:
-
Metal
-
Product Name:
-
Multi-Channel Professional power amplifier
-
Frequency response:
-
5Hz - 60kHz@0/-0.3dB 1W, 8Ω
-
Distortion:
-
<0.1%@1kHz ,-10dB, 4Ω
-
Input sensitivity:
-
23/2629/32/35/38/41dB
-
Damping coefficient:
-
500 @50-100,8Ω
-
Output stage:
-
Class-TD
-
Number of channel:
-
4CH
-
Power source:
-
AC 110V-120V or AC 170V - 260V
-
Finish:
-
2U iron box design
-
Applications:
-
Loundspeaker, Subwoofer
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Thinuna
-
Model Number:
-
MDA-8004/ MDA13004
-
Dimension:
-
483 x 377 x 88.9mm
-
Power Supply Mode:
-
other
-
Storage:
-
N/A
-
SNR:
-
110dB@20Hz-20KHz
-
Output Power:
-
3200W / 5200W
-
Shell Material:
-
Metal
-
Format:
-
N/A
-
The body material:
-
Metal
-
Product Name:
-
Multi-Channel Professional power amplifier
-
Frequency response:
-
5Hz - 60kHz@0/-0.3dB 1W, 8Ω
-
Distortion:
-
<0.1%@1kHz ,-10dB, 4Ω
-
Input sensitivity:
-
23/2629/32/35/38/41dB
-
Damping coefficient:
-
500 @50-100,8Ω
-
Output stage:
-
Class-TD
-
Number of channel:
-
4CH
-
Power source:
-
AC 110V-120V or AC 170V - 260V
-
Finish:
-
2U iron box design
-
Applications:
-
Loundspeaker, Subwoofer

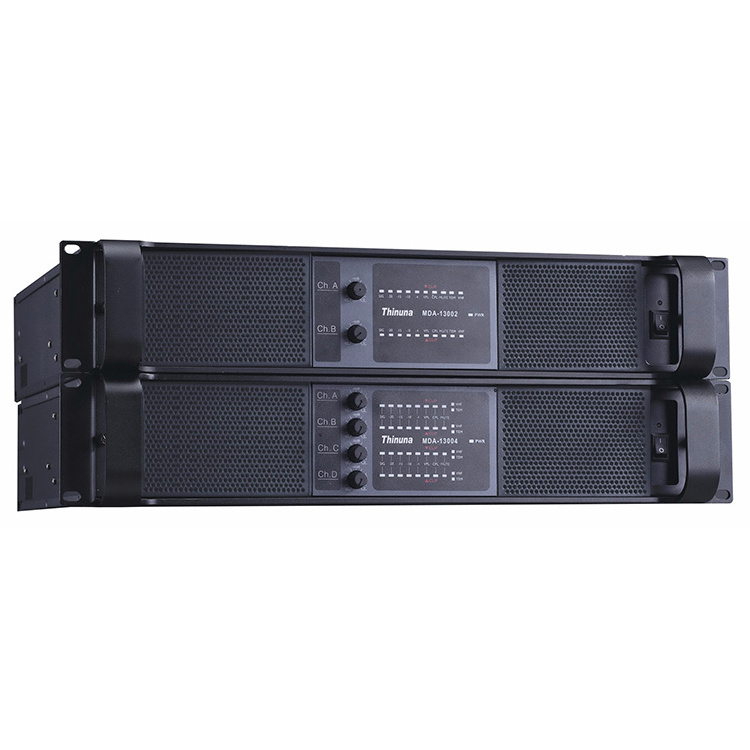

Thinuma MDA series 2U Metal Chassis Design 4 Channel Power Amp Class TD Multi-channel Professional Amplifier For Large Concerts
Products Description

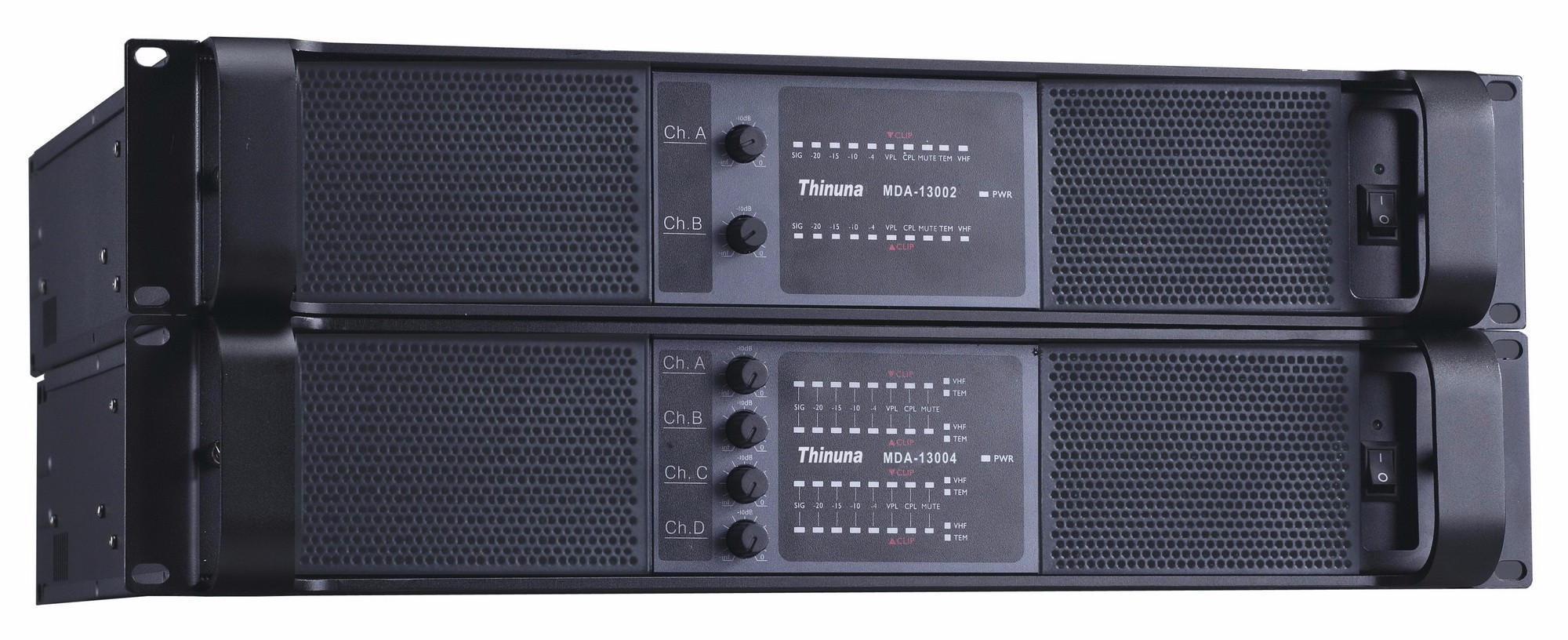

MDA Series 4-Channel 2U Class TD Multi-Channel Amplifier For Tour Equipment
Features:
* VPL technology allows the amplifier to work within the safe range of its hardware. It still can make sure with a
well-controlled output even in the case of clipping. One amplifier can work under different occasions by VPL power management. For example: Use 1 or 2 output (isolated or bridge) to drive the bass cabinet. 1 or 2 output working for the main extend speaker, and then the Fourth output work to the distribution PA system.
* VHF technology from the VHF detection circuit with intelligent resolute music signal and abnormal signal, Normal signals can full power through. When the dangerous VHF signals happen and the output will be muted, If the dangerous signals did not continuous, the output will automatically unmute. Meanwhile, the VHF error indicator at the front panel of amplifier turns on.
* Perfect protection system: The entire device with a full-function protection which includes the power soft-start, current
overload and short circuit, overheating, UHF, clipping limiter functions. Especially the no-relay output function, its fast
response and accurate is much better than the relays.
* Perfect designed cooling system: The amplifier can minimize the heat dissipation requirements while outputting high power. The radiator use a short duct of copper strip fin in order to make sure the output transistor keep in the same temperature. Also its thermal performance much better than aluminum radiator.
* All input and output used in all Neutrik genuine original, The full range power output transistors from Onsemi, Improved the reliability of the devices for a long time demanding environments.
|
Description :
|
MDA series 4-Channel 2U Class TD multi-channel amplifier for tour equipment
|
|
|
|
Model Number :
|
MDA-8004
|
MDA-13004
|
|
|
Stereo 8Ω Power
|
4 x 800W
|
4 x 1300W
|
|
|
Stereo 4Ω Power
|
4 x 1600W
|
4 x 2200W
|
|
|
Stereo 2Ω Power
|
4 x 2000w
|
4 x 3000W
|
|
|
Bridge 8Ω
|
3200W + 3200W
|
4200W + 4200W
|
|
|
Bridge 4Ω
|
4000W + 4000W
|
6000W + 6000W
|
|
|
Distortion :
|
<0.1%@1kHz, -10dB, 4 Ω
|
|
|
|
Frequency response：
|
50Hz - 60kHz @ 0/-3dB 1W@8Ω
|
|
|
|
Input sensitivity：
|
23 / 26 /29 /32 /35 /38 / 41 dB
|
|
|
|
S/N ratio：
|
110dB@20Hz-20KHz
|
|
|
|
Damping coefficient：
|
500@10-100Hz,8Ω
|
|
|
|
Max output voltage：
|
80V
|
102V
|
|
|
Voltage gain
|
+42dB
|
+45dB
|
|
|
Outer stage
|
Class TD
|
|
|
|
Protection circuit：
|
Power soft-start, current overload, short circuit, overheating, UHF, clip limiter, no relay output protection
|
|
|
|
LED indicator：
|
Power source / Signal / Distortion / Clipping
|
|
|
|
Power switch
|
Front panel for turn on /Main power supply switch for turn off
|
|
|
|
DIP switch
|
Selection for input modes and sensitivity
|
|
|
|
Preipheral connection
|
4-CH power sockets
|
|
|
|
Input connector
|
Balanced XLR male socket
|
|
|
|
Output connector
|
4pcs x SPEAKON（Pro-audio interface）
|
|
|
|
Cooling system
|
Dual variable-speed fans, from front to rear exhaust
|
|
|
|
Power Source
|
110V ~ 120V or 170V ~ 260V
|
|
|
|
Weight ( Net / Gross) :
|
13 KGS / 15 KGS
|
13 KGS / 15 KGS
|
|
|
Dimensions(W x D x H) :
|
483x 377 x 88.9mm
|
|
|
Application Cases
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks,
stage performances, dance halls, live audio recording, music screening rooms and other places
.......
