Quick Details
-
Rated Voltage:
-
1500VDC
-
Reverse Current:
-
30A
-
Ambient Temperature:
-
-40℃~+80℃
-
Degree of Protection:
-
IP68(1m,1h)
-
Rated Current:
-
30A
-
Application Class:
-
A
-
Protection Class:
-
II
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
BAYM
-
Model Number:
-
BM-12C
-
Rated Voltage:
-
1500VDC
-
Reverse Current:
-
30A
-
Ambient Temperature:
-
-40℃~+80℃
-
Degree of Protection:
-
IP68(1m,1h)
-
Rated Current:
-
30A
-
Application Class:
-
A
-
Protection Class:
-
II
BM-12C
photovoltaic junction box adopts thin-film metal terminal tin soldering mode, which has better heat dissipation, stability,excellent high and low temperature resistance, aging resistance and ultraviolet resistance. It can meet the long-term use requirements in outdoor harsh environment. Excellent waterproof and dustproof effect, sealing by potting. Small size and ultra-thin design structure is simple and practical. The connection between busbar and cable is welded and crimped, and the electrical performance is safe and reliable.
Main Technical Parameters:
Rated voltage:1500VDC
Rated current: 16A
Use temperature:-40~+85℃
Connection resistance: ≤3mΩ
Protection class: class A
Pollution degree： IP68
Impulse voltage：12000V
Working voltage: 1500V
Connection wire specification： 12AWG/1x4mm2
Busbar size:6.0~8.5mm(width)x 0.2~0.4mm thick
Terminal linking method
1、Cable wire and internal metal terminal using mechanical riveting method
2、The diode and the internal metal terminal use the welding method
3、Soldering method is adopted between the busbar and the internal metal
terminal
terminal
Main features:
1. Excellent resistance to high temperature, low temperature,fireproof,waterproof,UV protection performance, to meet the
customers' long-term harsh environment use. 2. Excellent sealing performance, waterproof and dustproof grade up to IP68. 3. High
current and high voltage carrying capacity to meet the requirements of a variety of high-power components.
customers' long-term harsh environment use. 2. Excellent sealing performance, waterproof and dustproof grade up to IP68. 3. High
current and high voltage carrying capacity to meet the requirements of a variety of high-power components.

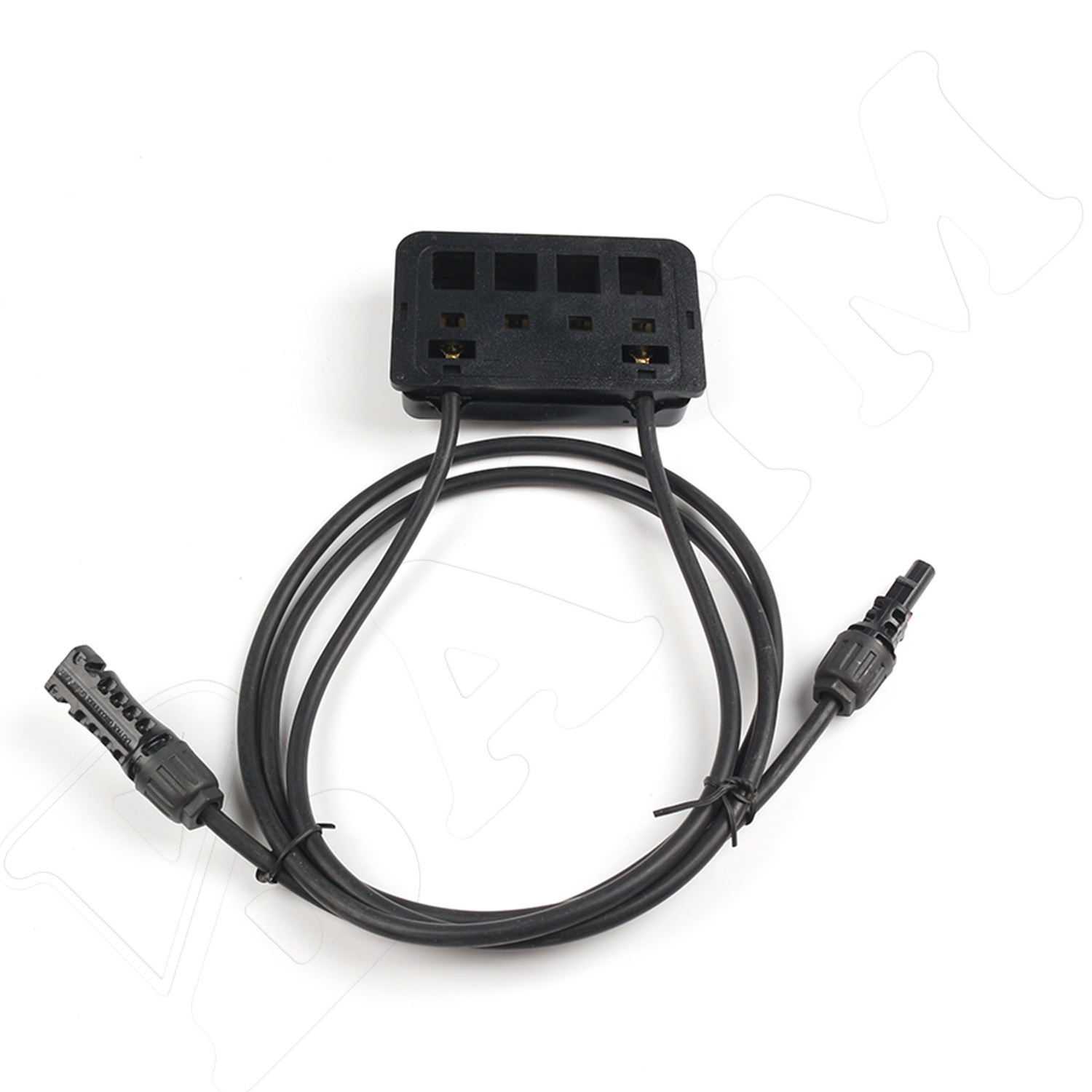

Product view:
Product dimensional drawings:
Q: Is OEM available?
A: Yes, OEM and customization are available. Also, we can provide label printing service.
Q: Are samples available?
A: Free samples are available while freight is chargeable.
Q: What is your payment terms?
A: T/T,L/C,D/A,D/P,Paypal for different circumstances.
Q: What's your delivery way?
A: Express delivery, air shipping, sea shipping are available for your request.
Q: What's your delivery time?
A: Usual delivery time is 5-10days after recieving the advance payment;
For the customized product, 15-30 days after receiving the advance payment.
|
|
|
|
|
|
||||
