FRP embossed panel is the product item HIGOAL made huge investment on developing, width of which can reach up to 2800mm, with the characteristics of resistance to corrosion, mould, humidity and electricity, etc.
HIGOAL FRP panel has a significant advantage, that is easy-cleaning. Gel coated FRP panel is exceptionally resistant to scratch,
negligibly effected on by blood, detergents and bleach disinfectant. FRP gel coat panel is the ideal hygienic panel.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Place of Origin:
-
China
-
Brand Name:
-
higoal
-
Model Number:
-
h1
-
Ceiling Tile Type:
-
FRP
-
colour:
-
white, grey, custom made
-
thickness:
-
1.2mm to 3mm
-
max width:
-
2750mm
-
Material:
-
FRP
-
Product name:
-
FRP waterproof bathroom wall panel
-
Surface treatment:
-
gel-coating
-
Installation:
-
Install Easily
-
Certificate:
-
ISO,ROHS, SGS
Quick Details
-
Warranty:
-
NONE
-
After-sale Service:
-
Online technical support, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard
-
Place of Origin:
-
China
-
Brand Name:
-
higoal
-
Model Number:
-
h1
-
Ceiling Tile Type:
-
FRP
-
colour:
-
white, grey, custom made
-
thickness:
-
1.2mm to 3mm
-
max width:
-
2750mm
-
Material:
-
FRP
-
Product name:
-
FRP waterproof bathroom wall panel
-
Surface treatment:
-
gel-coating
-
Installation:
-
Install Easily
-
Certificate:
-
ISO,ROHS, SGS
FRP waterproof bathroom wall panel
Products Description
There are different embossed pattern for your customers, it can be customized upon requirement.

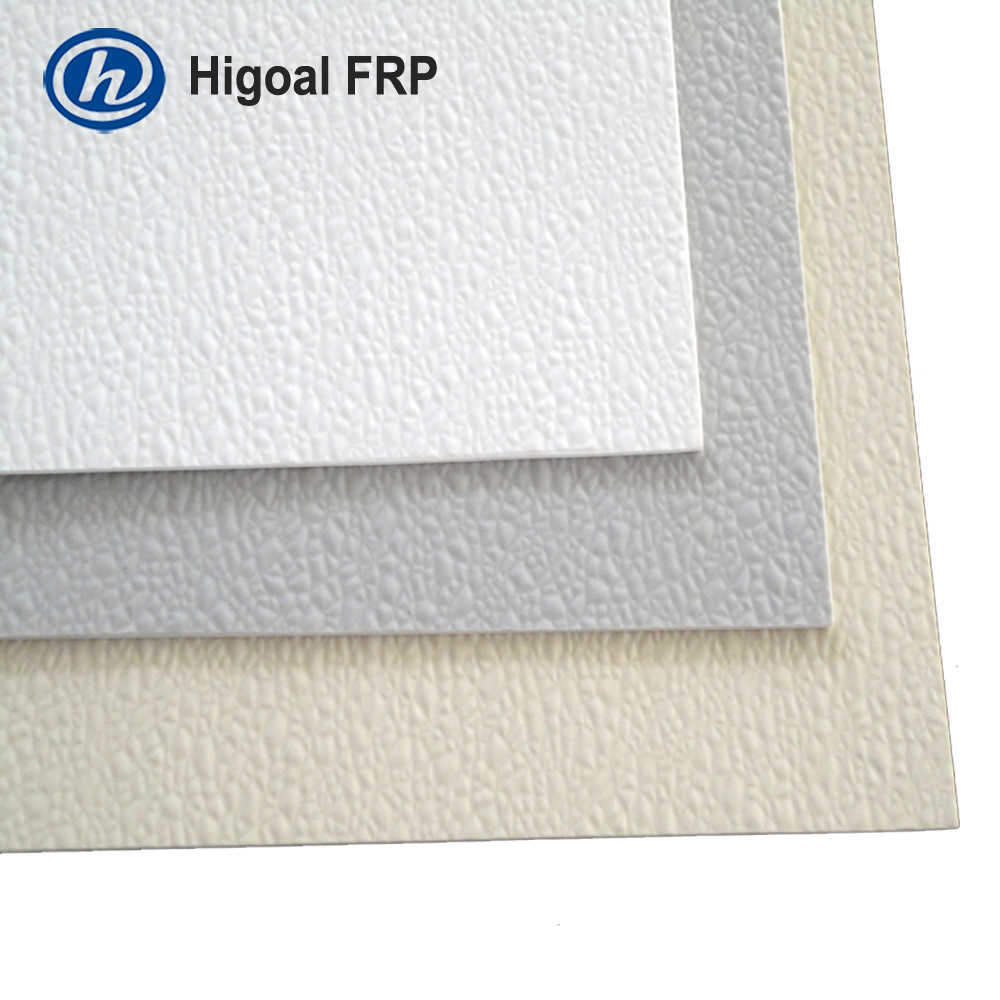

1. HIGOAL pebbled panel
Standard thickness: 1.2mm/1.5mm/2.0mm/2.5mm/3.0mm
Customized thickness: 1.0mm/ 4.0mm/ 5.0mm
Standard color: white，creamy，grey etc.
Customized color: RAL color.
2. HIGOAL chequered plate, as following, with width of 1200mm:
Max width: 1200mm
Standard thickness: 1.5mm/2.0mm/2.5mm/3.0mm
Standard color: white, grey
Customized thickness: 3.5mm/4.0mm/5.0mm
Customized color: All RAL
Max width: 1200mm
Standard thickness: 1.5mm/2.0mm/2.5mm/3.0mm
Standard color: white, grey
Customized thickness: 3.5mm/4.0mm/5.0mm
Customized color: All RAL
Above FRP panel can be combined as sandwich panel, with XPS core, gypsum, plywood, PP and aluminum honeycomb, etc. ,the sandwich panels is a more strengthen, better rigidity panel, sandwich panels will be easier to install, the installation efficiency will be improved greatly, furthermore, the requirement of wall coarseness will be reduced also.
Product Paramenters
|
Items
|
Performance
|
|
|
||
|
Material
|
Gel coating: 300um ISO-phthalic polyester gel coat
Matrix resin: unsaturated polyester resin Reinforce fiber: E-glass |
|
|
||
|
FRP panel size
|
Thickness: 1.0mm-3.0mm
Width: ≤2750mm ; Length: customer length |
|
|
||
|
Tensile strength
|
≥75MPa
|
|
|
||
|
Tensile modulus
|
≥4800MPa
|
|
|
||
|
Bending strength
|
≥120MPa
|
|
|
||
|
Bending modulus
|
≥5GPa
|
|
|
||
|
Impact strength
|
≥35KJ/m2
|
|
|
||
|
Compression strength
|
≥35MPa
|
|
|
||
|
Distortion temperature(1.8MPa)
|
>230℃
|
|
|
||
|
Thermal expansivity
|
2.4×10-5℃-1
|
|
|
||
|
Gravity
|
1.6-1.7g/cm3
|
|
|
||
|
Water Absorption
|
0.16%/24hrs, 25C
|
|
|
||
|
Stickiness
|
≥42dyne
|
|
|
||
|
Approval test standards:
|
ASTM-E84, RoHS 2002/95/EC
|
|
|
||
|
Chemical resistance
|
Can be used in foggy environment of 10% HCl and 3% NaOH solvent for long. For usage in other solvent, please contact our engineer.
|
|
|
||
FRP flat panel is continuously made, can be produced into sheets or rolls according to the specific requirement. The standard sheet size is 1220x2440mm, and panel rolls is 100-400m per roll ( the thinner panel will be packed with longer length as roll, the thicker panel will be packed with large roll core, and less length)
Packing & Delivery
|
FRP waterproof bathroom wall panel
|
|
|
|
|||
|
Packing
|
1. Protected by stretch film;
|
|
|
|||
|
|
2. Fasten by packing banding and packed on pallet;
|
|
|
|||
|
|
3. Grating corners are protected by FRP angle or thick papercard.
|
|
|
|||
|
Delivery
|
1. Stock grating: 3-5 working days.
|
|
|
|||
|
|
2. Manufacturing: 1-2 weeks, or depends on the order quantity.
|
|
|
|||
Higoal FRP Panel Options
Pebbled Texture Panel
Thickness:1.2mm-3.0mm
Max width: 2750mm
Feature: anti-aging, good decorative surface, impact resistant.
Standard color: white, creamy, yellow etc.
Smooth Panel
Panel type: Gel coat flat panel & Non-gel coating flat panel
Thickness:1.0-3.0mm
Feature: anti-aging, smooth glossy surface.
Standard color: White, Creamy, Black, etc.
FRP Chequered Plate
With 300μm gel coating on surface, anti-skid
Max width: 1200mm
Thickness:1.2-3.0mm
Standard color: White, Grey, Blue etc.
About Higoal FRP
Since the day Higoal established in Dongguan City in May 1995, Higoal have been dedicated to manufacturing and developing top-quality fiberglass products. Higoal FRP has been always expounding its philosophy -
U&I cooperate to reach high goal.
With decates of experience in manufacturing and supplying in composite application field, Higoal has strengthen its belife, that is "History Belongs to Durable Products".
With decates of experience in manufacturing and supplying in composite application field, Higoal has strengthen its belife, that is "History Belongs to Durable Products".
