Quick Details
-
Structure:
-
8# C steel
-
Certification:
-
CE/FSC/ISO9001
-
Window:
-
Aluminium Alloy Window or customized
-
Door:
-
steel structure with sandwich panel or customized
-
Advantage:
-
Fire Proof.water Proof
-
Wall panel:
-
50mm/75mm/100mm/150mm Sandwich Panel
-
Shippment:
-
20-25 Days
-
MOQ:
-
20 Square Meters
-
Roof:
-
Color Sandwich Panel
Quick Details
-
Place of Origin:
-
China(Mainland)
-
Brand Name:
-
yaoda
-
material:
-
steel structure +sandwich panel
-
Structure:
-
8# C steel
-
Certification:
-
CE/FSC/ISO9001
-
Window:
-
Aluminium Alloy Window or customized
-
Door:
-
steel structure with sandwich panel or customized
-
Advantage:
-
Fire Proof.water Proof
-
Wall panel:
-
50mm/75mm/100mm/150mm Sandwich Panel
-
Shippment:
-
20-25 Days
-
MOQ:
-
20 Square Meters
-
Roof:
-
Color Sandwich Panel

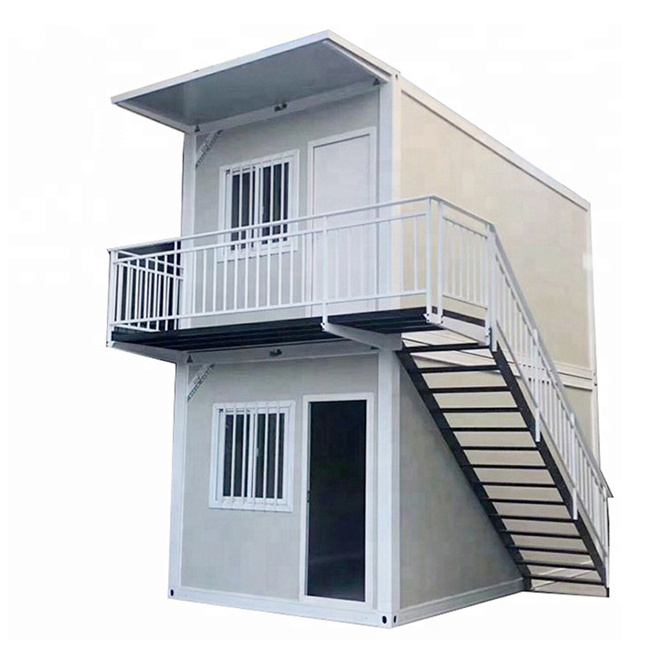

Low Cost Prefab Flat Pack Container Modular Prefabricated Apartment Building
tics
|
Product Information |
|
|
Type
|
Flat Pack Container House :6055*2990*2896mm/6055*2438*2896mm |
|
Detachable Container House:3000mm*5950mm*2800mm |
|
| Folding Containers House:5800*2480*2560mm | |
|
Expandable Container House:7160*6000*2700*2360mm |
|
|
Base |
External wainscot is 0.3mm galvanized steel sheet metal, and insulation is glass wool. The supporting material is 16mm cement board. the inside decoration is 2mm rubber plastic flooring. |
|
|
Permitted loading: 3.0KN/m2 |
|
Roof |
steel frame, steel board, warm proof fiber glass and decoration board |
|
Wall |
sandwich panel, could be EPS sandwich panel, rock wool sandwich panel, glass fiber sandwich panel, or PU sandwich panel according to different requests. The thickness could be 50mm, 75mm, 100mm or 150mm |
|
Floor
|
20mm cement board for floor |
|
PVC /Plywood or Customized |
|
|
Door |
Steel door, 50mm/75mm/100mm EPS/PU/Rock wool sandwich panel /wood |
|
Window |
Aluminum sliding window with security bar |
|
Electric system |
Light/Socket etc. |
|
Wind resistance |
Grade 1 1 wind speed <120km/h |
|
Earthquake resistance |
Grade 8 |
|
Resistant Temperature |
-20°Cto 50°C |
|
Snow load capacity of roofing |
0.6kn/ square meter |
|
Heat Conductivity coefficient |
0.32kcal/m2hc |
|
Container QTY |
8SETS/HQ |
|
Delivery Time |
20-30days after get deposite |
|
MOQ |
1set |
Prominent advantages
Inexpensive but multifunctional
Can be used as temporary living room/dormitory/home/office/meetingroom/classroom/kitchen/canteen.
Strength and durability:
Shock-resistant & wind-resistant q235(yield strength)steel frame.
Good quality eps sandwich panel brings heat insulation and damp proof make
Comfortable living. The prefab house is designed as water proof, so extra waterproof treatment is unnecessary
Movable and recyclable
Can be moved by any kind of vehicle after convenient disassembly construction site/ campsite/mine lot/mountain area/disaster area)
Prefab houses can be recycled more than 5 times in it`s 20 years long service lifetime.
100% of the steel structure and 90% of the eps panel can be recycled in next assembly.
Convenient installation and Labor-saving:
All the parts of steel frame and eps panel are done in factory, all need to do in the construction field is to connect and stack
100 sqm prefab house will just cost 2 days by only 4 workers.
The welding and cutting of steel is considered to be specialized labor and can increase construction expenses, yet overall it is still lower than conventional construction.
Transport:
Prefabricated modules can also be easily transported by ship, truck or rail, because they already conform to standard shipping sizes.
