Quick Details
-
Output Speed:
-
25-300RPM
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Batten
-
Certification:
-
ISO9001
-
Color:
-
Customized
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
19-2371N.M
-
Input Speed:
-
1500RPM
-
Output Speed:
-
25-300RPM
-
Weight (KG):
-
300 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Batten
-
Certification:
-
ISO9001
-
Color:
-
Customized
Product Description
|
No.
|
gearbox model
|
Ratio range
|
recommend screw diameter/mm
|
recommend power/HP
|
rating load torque/N.m
|
size(L*W*H)/mm
|
neight weight/KG
|
|
1
|
ZLYJ133
|
8/12.5/16/20
|
35/45/50
|
6~15
|
764
|
478*170*260
|
144
|
|
2
|
ZLYJ146
|
10/12.5/16/20
|
45/55
|
10~20
|
1165
|
560*250*320
|
205
|
|
3
|
ZLYJ173
|
10/16/20
|
55/65
|
15~30
|
1962
|
576*256*340
|
256
|
|
4
|
ZLYJ180
|
|
65
|
15~40
|
2764
|
650*256*400
|
350
|
|
5
|
ZLYJ200
|
12.5/16/20
|
65/75
|
30~60
|
3583
|
750*340*480
|
350
|
|
6
|
ZLYJ225
|
12.5/16/20
|
90
|
40~75
|
5334
|
800*360*500
|
650
|
|
7
|
ZLYJ250
|
16/12.5/20
|
100
|
50~100
|
6306
|
930*380*560
|
815
|
|
8
|
ZLYJ280
|
16/12.5/20
|
105/110
|
75~122
|
7643
|
970*410*600
|
1020
|
|
9
|
ZLYJ315
|
16/12.5/20
|
120
|
100~175
|
11822
|
1160*450*700
|
1410
|
|
10
|
ZLYJ330
|
16/12.5/20
|
150/160
|
150~217
|
21000
|
1160*450*700
|
1520
|
|
11
|
ZLYJ375
|
16/12.5/20
|
150/160
|
217~312
|
21096
|
1280*466*800
|
1800
|
|
12
|
ZLYJ420
|
16/12.5/20
|
150/165
|
272~428
|
25478
|
1420*550*920
|
1800
|
|
13
|
ZLYJ450
|
16/12.5/20
|
165
|
380~544
|
33885
|
1550*1200*1000
|
3560
|

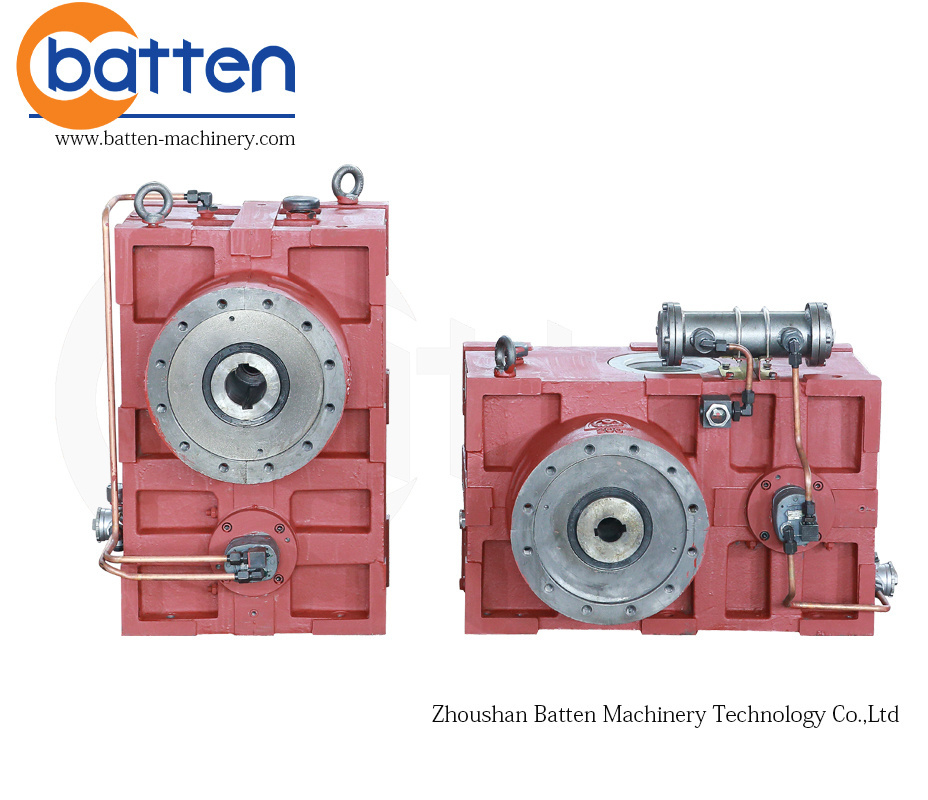

Product photos
Video Description
The production process
2.The gears are made of top-quality high-strength low carbon alloy steel after carbon penetrating,quench and teeth grinding.It has high hardness on teeth surface.large bearing ability,small noise,smooth operation and high driving efficiency.
3.The material of the distribution box is nodular graphite casting iron and the gears have high-strength ground teeth,in whichsnake-shaped cooling water pipes are distributed.
4.The maximum input speed of the gearbox is normally not larger than 1500 rpm.
5.The temperature in work environment is -10-45,when temperature is lower than 0,the lubricant oil should be preheated to +10before starting.
