Quick Details
-
Voltage (V):
-
220
-
Place of Origin:
-
China
-
Brand Name:
-
manlig
-
Model Number:
-
ml-a-039
-
Energy:
-
Economic system for saving gas
-
Gas type::
-
LPG / N.G
-
Function::
-
Heating and Bathing
-
Rated heat input:
-
24kw
-
Minimum heat input:
-
7.2
-
Rated heating output:
-
20.5kw
-
Heating water cycle way:
-
Configuration water tank inside
-
Hot water temperature adjust:
-
40~80 Heating water(°C)
-
Exhaust type:
-
Forced Exhaust
-
Product Weight:
-
40Kg
Quick Details
-
Warranty:
-
1 Year
-
Application:
-
Household
-
Power (W):
-
20
-
Voltage (V):
-
220
-
Place of Origin:
-
China
-
Brand Name:
-
manlig
-
Model Number:
-
ml-a-039
-
Energy:
-
Economic system for saving gas
-
Gas type::
-
LPG / N.G
-
Function::
-
Heating and Bathing
-
Rated heat input:
-
24kw
-
Minimum heat input:
-
7.2
-
Rated heating output:
-
20.5kw
-
Heating water cycle way:
-
Configuration water tank inside
-
Hot water temperature adjust:
-
40~80 Heating water(°C)
-
Exhaust type:
-
Forced Exhaust
-
Product Weight:
-
40Kg

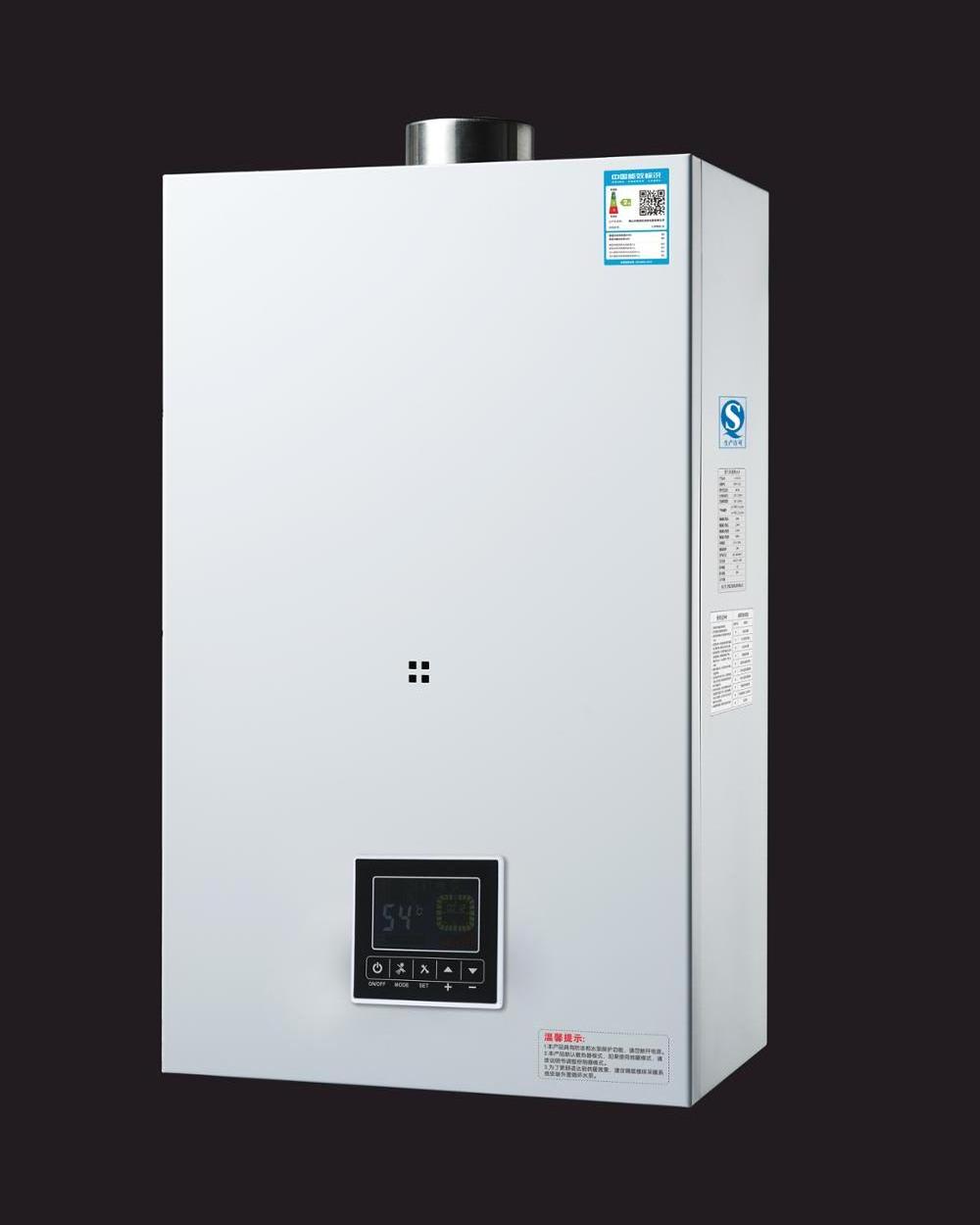

24Kw Wall Hung Gas Boiler for room heating and provide hot water
Technical information:
|
Rated heat input |
KW |
24 |
||
|
Minimum heat input |
KW |
7.2 |
||
|
Rated heating output |
KW |
20.5 |
||
|
Min heating heat output |
KW |
5.8 |
||
|
Rated Production hot water energy(30 K hot temperature rise out of water) |
Kg/min |
9.4 |
||
|
Rated gas pressure (N.G) |
Pa |
(12T)2000Pa |
||
|
Heating system applies to the pressure |
Mpa |
0.05-0.3 |
||
|
Shower hot water system applies to the pressure |
Mpa |
0.05-0.6 |
||
|
Heating water cycle way |
Configuration water tank inside |
|||
|
Hot water temperature adjust |
Heating water(°C) |
40~80 |
||
|
Bath water (°C) |
30~60 |
|||
|
Thermal efficiency(Ideal working conditions) |
>88~95% |
|||
|
Electrical parameters(Electrical rating108W) |
AC220V/50Hz |
|||
|
Exhaust pipe |
Outside diameter(mm) |
90 |
||
|
Inner diameter(mm) |
60 |
|||
|
Piping specifications |
Shower nozzle inlet and outlet water |
G1/2'' |
||
|
Intake pipe |
G3/4'' |
|||
|
Heating conduit for back |
G3/4'' |
|||
|
Reference heating area |
<160m 2 |
|||
|
Product Weight |
40Kg |
|||
|
Product size(mm) |
750×440×330 |
|||
INSIDE PICUTRE FOR BOILER
DETAIL:
PARTS:
