Quick Details
-
Brand Name:
-
TUNKIA
-
Model Number:
-
TM4100B
-
Accuracy:
-
Class 1/Class 2
-
Measurement Range:
-
0~2000 μT
-
Frequency Range:
-
DC~400 Hz
-
Unit switch:
-
μT, mG
-
Resolution:
-
10 nT
-
Temperature Coefficient:
-
± 0.1 %/°C
-
Display:
-
LCD, 5 Digit
-
Power Supply:
-
3 AA batteries or USB charging
-
Weight:
-
About 350 g
-
Communication Interface:
-
USB Interface
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TUNKIA
-
Model Number:
-
TM4100B
-
Accuracy:
-
Class 1/Class 2
-
Measurement Range:
-
0~2000 μT
-
Frequency Range:
-
DC~400 Hz
-
Unit switch:
-
μT, mG
-
Resolution:
-
10 nT
-
Temperature Coefficient:
-
± 0.1 %/°C
-
Display:
-
LCD, 5 Digit
-
Power Supply:
-
3 AA batteries or USB charging
-
Weight:
-
About 350 g
-
Communication Interface:
-
USB Interface

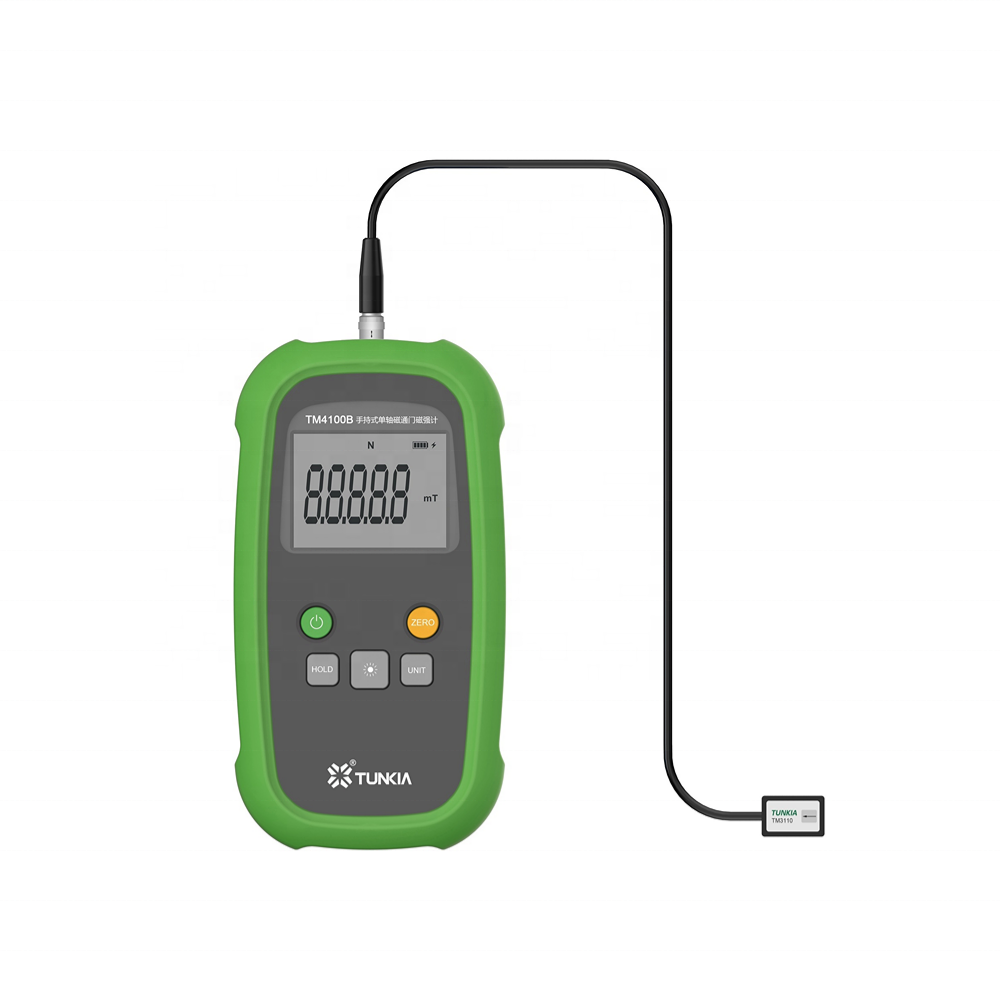

TM4100B Handheld Fluxgate Magnetometer
The TM4100B is a portable meter that measures low magnetic field, equipped with high sensitivity, high linearity, low drift fluxgate sensor, which can measure low magnetic accurately.
- Range: 0~2000 μT.
- Various of probes are optional.
- Accuracy: class 1 or 2.
- Unit switch: μT, mG.
- Relative measurement mode.
- Max. hold function.
- N/S polarity display.
- USB interface.
- Small size, light weight.
- Measuring low magnetic field.
- Geological prospecting.
- Fragmentation processing, security check.
- Fault location, research experiment.
- Magnetic shielding evaluation.
- Calibrating low magnetic field sources.
- Detecting magnetic resonance meter.
- Detecting electron microscope.
- Detecting Magnetic field drift.
|
Probe [1] ( μ T ) |
Resolution ( n T ) |
Accuracy |
Noise @1Hz |
Temperature Coefficient ( %/°C ) |
|
|
Class 2 |
Class 1 |
||||
|
100 |
10 |
±2% |
±1% |
< 20 nT rms |
± 0.1 |
|
500 |
10 |
±2% |
±1% |
< 20 nT rms |
± 0.1 |
|
1000 |
100 |
±2% |
±1% |
< 20 nT rms |
± 0.1 |
|
2000 |
100 |
±2% |
±1% |
< 20 nT rms |
± 0.1 |
|
Note [1]: The corresponding probe is selected according to the measurement of range. |
|||||
- Measuring range :0~ ± 2000 μT, 5-digits display.
- Frequency Range: DC ~ 400 Hz.
- Linearity : ± 0.5%.
|
Power Supply |
3 AA batteries or USB charging |
|
Temperature Performance |
Operating temperature:0°C~ 45°C Storage temperature:-20°C~ 70°C |
|
Humidity Performance |
Working humidity:20%~ 80% R·H, Non-condensing Storage humidity:< 85% R·H, Non-condensing |
|
Weight |
About 350 g |
|
Interface |
Fluxgate probe input interface, USB interface |
|
Dimensions |
90 mm (W) × 40 mm(D) × 165 mm(H) |
|
Probe Dimensions |
20 mm (L) × 13 mm (W) × 6.3 mm (H) |
Probe Selection
|
Number |
Picture |
Name |
Specification |
Quantity |
Remark |
|
1 |
|
TM1200-100μT Miniature Fluxgate Probe |
100μT range / uniaxial / 1.5m / Lemo plug |
1 |
Optional Accessory |
|
2 |
|
TM1200-500μT Miniature Fluxgate Probe |
500μT range / uniaxial / 1.5m / Lemo plug |
1 |
Optional Accessory |
|
3 |
|
TM1200-1000μT Miniature Fluxgate Probe |
1000μT range / uniaxial / 1.5m / Lemo plug |
1 |
Optional Accessory |
|
4 |
|
TM1200-2000μT Miniature Fluxgate Probe |
2000μT range / uniaxial / 1.5m / Lemo plug |
1 |
Optional Accessory |
|
Note: User indicates the range in the order contract, and the probe is provided by range. |
|||||
