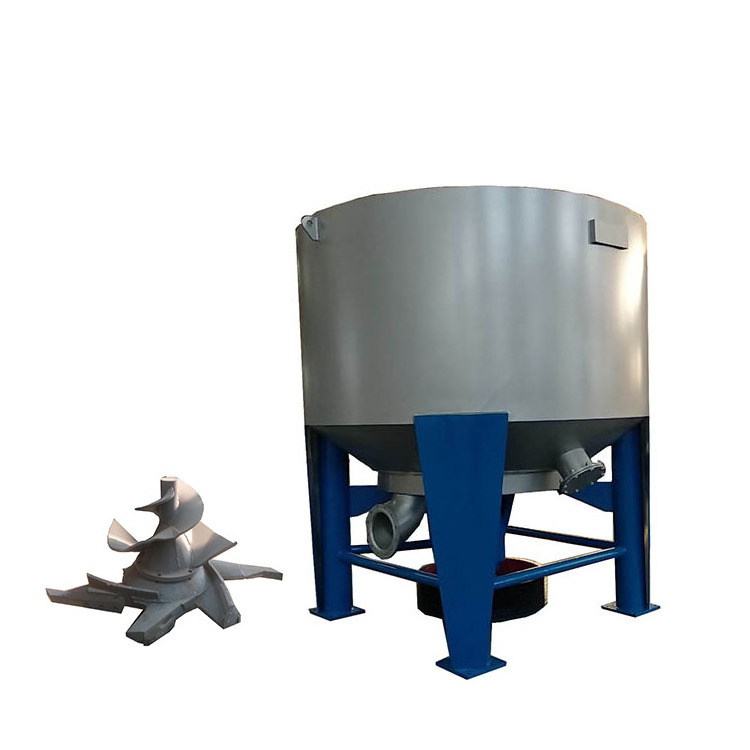

bagasse sugarance bamboo paper pulp molding making pulper / tableware hydrapulper machine

bagasse sugarance bamboo paper pulp molding making pulper / tableware hydrapulper machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $3200

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Applicable Industries:: paper making mill, tableware making mill, egg tray making mill

Place of Origin:: Shandong, China

Brand Name:: XURIDONG

Voltage:: 380V 50Hz

Dimension(L*W*H):: Configuration

Weight:: 3000 kg

Product name:: paper pulp molded pulper / hydrapulper machine

Function:: break waste pulp

Application:: Recycled waste paper

Color:: Blue

Raw material:: waste paper, virgin pulp,etc

Bearing::: NSK,FAG,INA available

Business type:: Manufcturer

Working consistency:: 10-14%

Sieve plate:: SS 304

Rotor:: SS 304

Quick Details

Type:: Pulping Equipment

Production Capacity:: 99%

Max. workable width:: 1300mm

Applicable Industries:: paper making mill, tableware making mill, egg tray making mill

Place of Origin:: Shandong, China

Brand Name:: XURIDONG

Voltage:: 380V 50Hz

Dimension(L*W*H):: Configuration

Weight:: 3000 kg

Product name:: paper pulp molded pulper / hydrapulper machine

Function:: break waste pulp

Application:: Recycled waste paper

Color:: Blue

Raw material:: waste paper, virgin pulp,etc

Bearing::: NSK,FAG,INA available

Business type:: Manufcturer

Working consistency:: 10-14%

Sieve plate:: SS 304

Rotor:: SS 304

Product Overview

_{Paper pulp making hydrapulper}

The paper pulp making hydrapulper is uesd in paper making mill, tableware making mill, egg tray making mill.

It can produce the accept paper pulp from waste paper, occ, or pulp sheet.

FEATURES AT A GLANCE

01. the working consistency: 2.5-15%

02. material quality: stainless steel 304 and carbon steel

03. rotor material quality: 2Cr13

04. raw material: waste paper, occ, pulp sheet

05. application:

a. paper making mill

b. paper pulp making mill

c. paper and plastic separating mill

d. tableware making mill

e. egg tray making mill

f. fruit tray making mill

g. other pulp molding mill

PRODUCT SPECIFICATIONS

HIGH CONSISTENCY HYDRAPULPER

The working consistency is 10-14%, called high consistency paper pulp hydrapulper.

It is used to deinking paper pulp or paper making mill, and pulp molding mill.

Model	ZGS1	ZGS2	ZGS3	ZGS5	ZGS8	ZGS10	ZGS15	ZGS20	ZGS25
Nominal volume (m3)	1	2	3	5	8	10	15	20	25
Capacity (t/d) (22.5hours/day)	3-4	6-8	9-12	15-20	24-32	30-45	40-80	50-90	100-120
Consistency (%)	10-14
Tank diameter (mm)	1200	1500	1800	2200	2500	2800	3100	3350	3700
Power of motor (kw)	22	37	55	75	90	132	200	280	315

LOW CONSISTENCY HYDRAPULPER

The working consistency is 2.5-4.5%, called low consistency paper pulp hydrapulper. It is used to waste paper pulp or paper making mill, and pulp molding mill. The machine can work c ontinuously.

Model	ZDS1	ZDS2	ZDS3	ZDS5	ZDS8	ZDS10	ZDS15	ZGS30
Nominal volume (m3)	1	2	3	5	8	10	15	30
Capacity (t/d)22.5hours/day)	6-10	12-16	18-26	26-34	45-60	60-80	80-100	50-200
Consistency (%)	2.5-4.5
Tank diameter (mm)	1200	1550	1800	2200	2500	2800	3100	4000
Power of motor (kw)	22	37	55	75	90	110	185	250

Product packaging

After service

1. We are responsible for correctly guiding the installation, commissioning and trial production of equipment for free, to ensure
that we reach the design capacity within the planned time.
2. We are responsible for the technical training of the buyer. The training content includes equipment structure and maintenance,
equipment control and operation.
3. After receiving the service call, the supplier will respond within 8 hours and provide 24-hour service to solve any problems
raised by the buyer at any time.
4. Cooperate with the maintenance service at any time and provide accessories in time. Provide accessories.
5. Commitment to lifetime service only charge for parts and materials, not any manual trav
