Quick Details
-
Sample holder size:
-
140mm dia. for. 4" wafer max
-
Keywords:
-
PVD coating machine
-
Product name:
-
pvd vacuum coating machine
-
Coating film:
-
TiCN
-
Control mode:
-
Full-automatic
-
Application:
-
Metal Material
-
Vacuum system:
-
vacuum pump
-
Coating material:
-
Metal Strips
-
Weight:
-
160KG
-
Certification:
-
CE/ISO
Quick Details
-
Place of Origin:
-
China
-
After-sales Service Provided:
-
Online support, Engineers available to service machinery overseas
-
vacuum chamber:
-
stainless steel
-
Sample holder size:
-
140mm dia. for. 4" wafer max
-
Keywords:
-
PVD coating machine
-
Product name:
-
pvd vacuum coating machine
-
Coating film:
-
TiCN
-
Control mode:
-
Full-automatic
-
Application:
-
Metal Material
-
Vacuum system:
-
vacuum pump
-
Coating material:
-
Metal Strips
-
Weight:
-
160KG
-
Certification:
-
CE/ISO
lab small Magnetron Plasma Sputtering Coater machine small pvd vacuum coating machine gold, chrome and black oxide
Introduction of magnetron sputtering machine magnetron sputtering machine
VTC-16-SM is a High Power Desktop Magnetron Plasma Sputtering Coater with a water cold 2" target head , water chiller and rotatable sample holder, which is designed for coating all metallic films, including Zn, Al, Ti light metallic film at affordable cost. One Aluminium target is included for immediate use.
Technical parameters of magnetron sputtering machine
|
Input Voltage |
110/220VAC switchable |
|
Output Power |
1600VDC 250W 150mA max. Built-in over current (>150mA) protection |
|
Specimen chamber |
Quartz glass tube, 167mm OD. x 152mm ID x 260mm Height |
|
Sputtering Head & Specimen stage |
2“ magnetron sputtering head with water cooling jaket is included ( click PIC below-left to see specs ) One 50 mm Dia stainless steel .sample stage is built in, which is rotable from 0 - 5 RPM One manually operated shutter is build in to achieve better coating ( click PIC below -right to see detail ) Built in a fixture to place sputtering head when open chamber Distance between sputtering head and sample stage is adjustable from 60 - 100 mm. One Air Cold Recirculating Water Chiller 10L / min Flow is included for cooling sputtering head.
|
|
Control Panel |
6" color touch-screen control panel with PLC integration for easy operation One panel controls all parameters, including vacuum, current, target position and substrate heating temperature |
|
Ultimate Vacuum Pressure |
Built in KF25 vacuum port The system requires a Ar gas tank with pressure regulator, which is not included <10E-2 mbar by vane vacuum pump (not included) for Au, Ag, Pt, Cu, Mo targets (not sensitive to air) 7.5E-5 mbar by Turbo molecular pump (not included) for Al, Mg, Li, Lr, Ti, Zn targets (sensitive to air) |
|
Gas Atmosphere |
One needle valve installed to allow Ar gas inlet to achieve better plasma coating The system requires an Ar gas tank with pressure regulator which is not included |
|
Target |
Target size: 50 mm dia. x (0.1 - 3) mm,thickness One 2" Aluminium target is included Also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Mg, etc. These targets are available upon request. Aluminum Target Recommend Coating Method |
|
Optional Film Thickness Monitor |
Film thickness monitor is optional at extra cost ( click PIC below-left to see specsand order ) Heatable sample stage upto 500oC is available upon request at extra cost |
|
Overall Dimensions |
( L 440mm×W 330mm × H 290mm without sputtering head ) |
|
Warranty & Certificate |
One year limited with lifetime support CE certified |
Thickness monitor for magentron sputtering machine
Overall dimensions of magentron sputtering machine/system

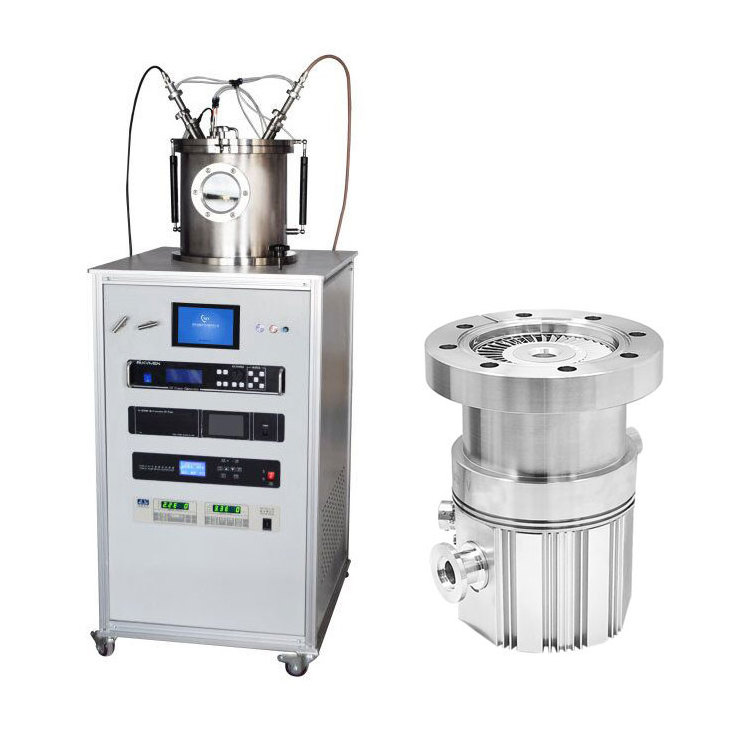

Other types of magnetron sputtering machine
