Quick Details
-
Center Height (mm):
-
1200 mm
-
Max.Transformer Capacity(kVA):
-
1250 kVA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ODMT
-
Motor Power (kw):
-
7.5
-
Weight (KG):
-
1500
-
Dimension(L*W*H):
-
4000*700*1600
-
Wire Diameter Range (mm):
-
0.5 - 3 mm
-
Function:
-
transformer winding
-
Certification:
-
CE ISO
-
Delivery time:
-
30 Days
-
Winding speed:
-
150r/min
-
Material:
-
Steel
-
COLOR:
-
Green
-
Wire material:
-
Copper
-
Power:
-
380V
-
Keyword:
-
Winding machine
Quick Details
-
Max. Load (KG):
-
5000 KG
-
Coil Type:
-
copper
-
Length of Axis (mm):
-
180 mm
-
Center Height (mm):
-
1200 mm
-
Max.Transformer Capacity(kVA):
-
1250 kVA
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ODMT
-
Motor Power (kw):
-
7.5
-
Weight (KG):
-
1500
-
Dimension(L*W*H):
-
4000*700*1600
-
Wire Diameter Range (mm):
-
0.5 - 3 mm
-
Function:
-
transformer winding
-
Certification:
-
CE ISO
-
Delivery time:
-
30 Days
-
Winding speed:
-
150r/min
-
Material:
-
Steel
-
COLOR:
-
Green
-
Wire material:
-
Copper
-
Power:
-
380V
-
Keyword:
-
Winding machine
Product Description
Factory hot sale wire coil winding machine for transformer visiting welcome
PLC control transformer coil winding machine
Product details
| Function | transformer winding |
| Certification | CE ISO |
| Warranty | 1-Year |
| Delivery time | 30 Days |
| Winding speed | 150r/min |
| Material | Steel |
| COLOR | Green |
| Wire material | Copper |
| Power | 380V |
| Keyword | Winding machine |

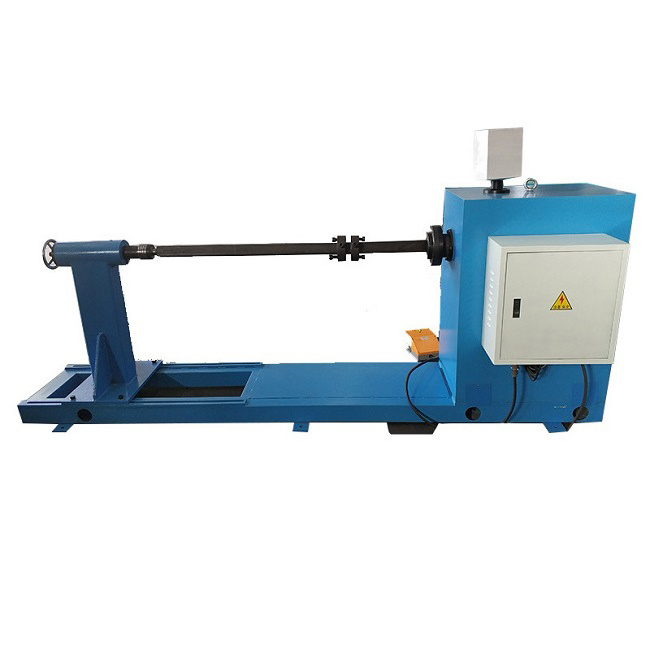

This machine is suitable for the power transformer coil and coil winding equipment
Main characteristics:
1- Adopting the brake motor, energy saving.
2- The low speed big torque force, power-off brake.
3- Frequency speed+manual gear transmission.
4- Electronic counting of six digits
5- The foot switch positive control, simple operation, stable starting.
images
Product Description
This machine is suitable for the power transformer coil and coil winding equipment. the main feature as below:
-Adopting the brake motor, energy saving.
-The low speed big torque force, power-off brake.
-Frequency speed + manual gear transmission.
-Electronic counting of six digits.
-The foot switch positive control, simple operation, stable starting.
Product Paramenters
|
Model
|
RX-1 (0.5T)
|
RX-2 (1T)
|
RX-3 (2T)
|
RX-03
|
RX-05
|
||||
|
Center high (mm)
|
1000
|
1000
|
1000
|
1200
|
1200
|
||||
|
Faceplate diameter (mm)
|
200
|
260
|
300
|
300
|
400
|
||||
|
The main (mm)
|
1100
|
1100
|
1300
|
1300
|
1300
|
||||
|
Spindle speed (r/min)
|
0-180
|
0-100
|
0-80
|
0-50
|
0-30
|
||||
|
Line length (mm)
|
1000
|
1200
|
1250
|
1300
|
1300
|
||||
|
Max load (kg)
|
500
|
1000
|
2000
|
3000
|
5000
|
||||
|
Motor power (kw)
|
3
|
4
|
5.5
|
5.5
|
7.5
|
||||
|
Dimensions (mm)
|
2500*600*1400
|
2800*600*1400
|
2800*600*1400
|
3600*690*1500
|
4000*700*1600
|
||||
|
Weight (kg)
|
350
|
500
|
800
|
1200
|
1500
|
||||
|
Speed control mode
|
Frequency control
|
||||||||
|
Counting mode
|
Six digital
|
||||||||
