Quick Details
-
Made in China:
-
Made in Liujing Group
-
outline:
-
Capsule Version
-
thyrsitor:
-
Triac Thyristor
-
Model:
-
KS100A KS200A KS300A KS600A KS800A KS1000A
-
Voltage:
-
200~2000
-
Current:
-
100~1000
Quick Details
-
Model Number:
-
KS100A KS200A
-
Brand Name:
-
Liujing
-
Place of Origin:
-
Zhejiang, China
-
Made in China:
-
Made in Liujing Group
-
outline:
-
Capsule Version
-
thyrsitor:
-
Triac Thyristor
-
Model:
-
KS100A KS200A KS300A KS600A KS800A KS1000A
-
Voltage:
-
200~2000
-
Current:
-
100~1000

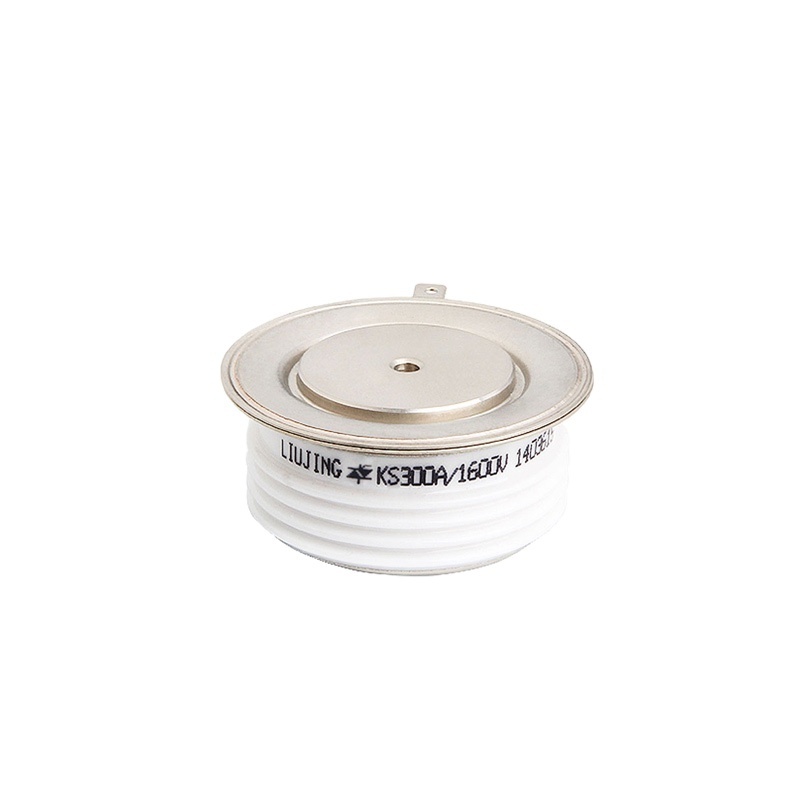

T
riac Thyristor(Capsule Type)
KS100A KS200A KS300A KS600A KS800A KS1000A
Features
All diffuse techinics
Ceramic disc type seal
Middle trigger
Bifacial cooled
Same as two thyristor anti-abreast
Use proper trigger current, anti &
forward all could ducting
Typical Applications
AC switch
Fast motor control
T
riac Thyristor
KS100A KS200A KS300A KS600A KS800A KS1000A
|
Type |
VDRM VRRM |
IT(RMS) |
ITSM |
dV/dt |
di/dt |
IDRM IRRM |
IGT |
VGT |
IH |
VTM/ITM |
RTH(j-hs) |
Tjm |
M2 |
Outline |
|
|
|
THS 55°C |
10ms |
|
|
|
|
|
25°C |
|
|
|
|
|
|
|
V |
A |
KA |
V/μs |
A/μs |
mA |
mA |
V |
mA |
V/A |
°C/W |
°C |
KN |
|
|
KS100A |
|
200~2000 |
100 |
1.7 |
500 |
50 |
20 |
20~200 |
≤2.5 |
|
20~200 |
2.4/300 |
0.120 |
|
|
KS200A |
200~2000 |
200 |
1.7 |
500 |
50 |
20 |
20~200 |
≤2.5 |
20~200 |
2.4/300 |
0.120 |
125 |
3.3~5.5 |
F2E1 |
|
KS300A |
200~2000 |
300 |
2.5 |
500 |
50 |
30 |
20~200 |
≤2.5 |
20~200 |
2.4/500 |
0.065 |
125 |
3.3~5.5 |
F2E1 |
|
KS500A |
200~2000 |
500 |
4 |
500 |
50 |
40 |
20~300 |
≤2.5 |
20~300 |
2.4/700 |
0.040 |
125 |
5.3~10 |
F3E2E4 |
|
KS600A |
200~2000 |
600 |
4.2 |
500 |
50 |
40 |
20~300 |
≤2.5 |
20~300 |
2.4/900 |
0.035 |
125 |
10~20 |
F3F4E5 |
|
KS800A |
200~2000 |
800 |
6.8 |
500 |
50 |
50 |
20~350 |
≤2.5 |
20~400 |
2.4/1200 |
0.035 |
125 |
10~20 |
F4E5 |
|
KS1000A |
200~2000 |
1000 |
6.8 |
500 |
50 |
50 |
20~350 |
≤2.5 |
20~400 |
2.4/1500 |
0.035 |
125 |
15~20 |
F5E6 |
