Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CSOT
-
Product Name:
-
LCD Dispaly Screen
-
Panel Type:
-
a-Si TFT-LCD , CELL
-
Pixel Format:
-
3840(RGB)*2160, UHD, 80PPI
-
Dot Pitch:
-
0.105*0.315 mm (H*V)
-
Active Area:
-
1209.6(W)*680.4(H) mm
-
Outline Dim.:
-
1221.4(H)*694.8(V) *1.34(D) mm
-
Glass Depth:
-
0.50+0.50 mm
-
Contrast Ratio:
-
5000:1 (Typ.) (TM)
-
Panel Weight:
-
2.65±0.13Kgs
-
Transmittance:
-
6.8% (Typ.)(with Polarizer)
Quick Details
-
Type:
-
lcd display screens
-
Display Size:
-
55 Inch
-
Supplier Type:
-
Agency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CSOT
-
Product Name:
-
LCD Dispaly Screen
-
Panel Type:
-
a-Si TFT-LCD , CELL
-
Pixel Format:
-
3840(RGB)*2160, UHD, 80PPI
-
Dot Pitch:
-
0.105*0.315 mm (H*V)
-
Active Area:
-
1209.6(W)*680.4(H) mm
-
Outline Dim.:
-
1221.4(H)*694.8(V) *1.34(D) mm
-
Glass Depth:
-
0.50+0.50 mm
-
Contrast Ratio:
-
5000:1 (Typ.) (TM)
-
Panel Weight:
-
2.65±0.13Kgs
-
Transmittance:
-
6.8% (Typ.)(with Polarizer)

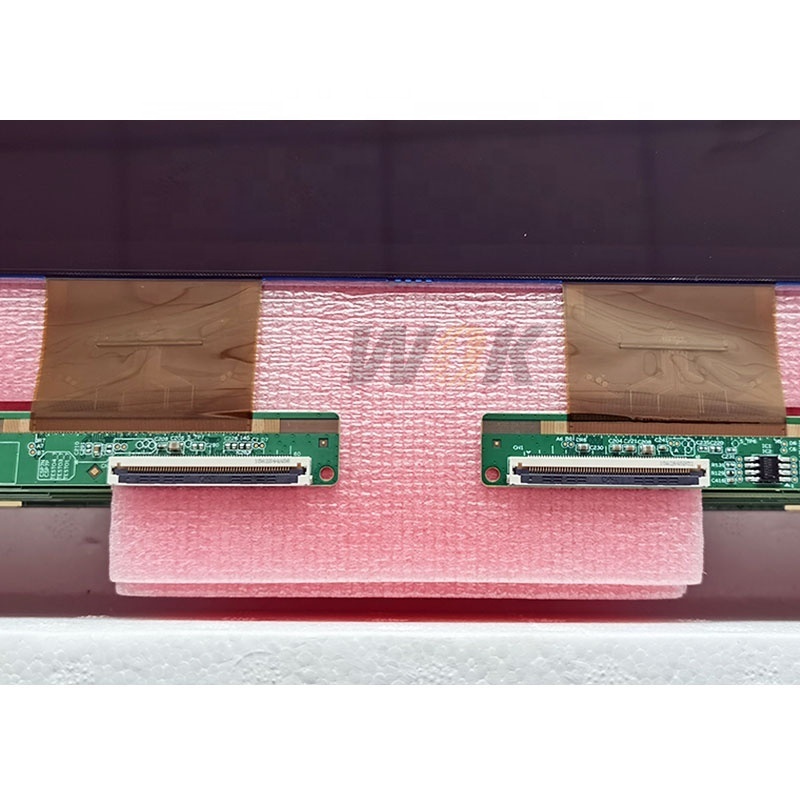

CSOT 4K Lcd Panel Tv Panel 55 Inch Lcd Tv Screen Spare Part For ST5461D09-3
Product Description
|
Product Specification
|
|
|
|
|
||||
|
Basic Information :
|
Brand
|
CSOT
|
Model
|
ST5461D09-3
|
||||
|
|
Type
|
a-Si TFT-LCD , CELL
|
Screen Size
|
55 inch
|
||||
|
Environment :
|
Storage Temp.
|
-20 ~ 60 °C
|
Operating Temp.
|
0 ~ 50 °C
|
||||
|
Pixel
Features :
|
Pixel Format
|
3840(RGB)×2160, UHD
|
Dot Pitch(mm)
|
0.105×0.315 mm (H×V)
|
||||
|
|
Configuration
|
RGB Vertical Stripe
|
Pixel Pitch(mm)
|
0.315×0.315 mm (H×V) [80PPI]
|
||||
|
Mechanical Size :
|
Active Area(mm)
|
1209.6×680.4 mm (H×V)
|
Bezel Area(mm)
|
-
|
||||
|
|
Outline Dim.(mm)
|
1221.4×694.8 mm (H×V)
|
Depth(mm)
|
1.34 (Typ.) mm
|
||||
|
Outline Features :
|
Form Style
|
Flat Rectangle
|
Plate Thickness
|
0.50+0.50 mm
|
||||
|
|
Aspect Ratio
|
16:9 (H:V)
|
Orientation
|
Landscape type
|
||||
|
Other Spec :
|
Weight
|
2.65±0.13Kgs
|
Surface
|
Antiglare (Haze 2%), Hard coating (3H)
|
||||
|
Basic
Information :
|
Luminance(cd/m²)
|
0
|
Contrast Ratio
|
5500:1 (Typ.) (Transmissive)
|
||||
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Display Mode
|
HVA, Normally Black, Transmissive
|
||||
|
|
Best View on
|
Symmetry
|
Response(ms)
|
6.5 (Typ.)(G to G) ms
|
||||
|
Color Performance :
|
Color Numbers
|
1.07B (8-bit + Hi-FRC)
|
Uniformity
|
-
|
||||
|
|
Chromaticity
|
Wx:0.281; Wy:0.310
|
Color Temperature
|
8999K
|
||||
|
1931
Color Gamlt :
|
NTSC Ratio
|
68%
|
sRGB
|
95% coverage
|
||||
|
|
Adobe RGB
|
71% coverage
|
DCI-P3
|
71% coverage
|
||||
|
|
Rec.2020
|
51% coverage
|
Remarks
|
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
||||
|
Dispaly Performance :
|
Outdoor Visibility
|
No
|
Transmissivity
|
6.8% (Typ.)(with Polarizer)
|
||||
|
Signal
Electrical :
|
Voltage Supply
|
12.0V (Typ.)
|
Current Supply
|
0.7/0.91A (Typ./Max.)
|
||||
|
|
Signal Systerm
|
V-by-One 8 lane
|
Frame Rate :
|
60Hz
|
||||
|
Package Box :
|
Quantity
|
119 pcs / box
|
Box Size
|
1420×1120×1012 mm
|
||||
