The ball mill is one of our classic machines. The new type ball mill has advantages over final product fineness, driving force saving and power grinding efficient and creates more benefit for customers. So it has been widely used in beneficiation, building material and chemistry industries.
The ball mill is applied to grind and process chalk, gypsum, brick, etc.
Max.feeding size ＜25mm, Finished product size: 20-200mesh, capacity: 0.65-90t/h
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
21000 KG
-
Product name:
-
Gold Ore Grinding Machine
-
Application:
-
Stone Powder Grinding
-
Keywords:
-
Grinding Miller Ball Mill
-
Usage:
-
Grinding Mining Stone
-
Processed Materials:
-
Chrome Iron Ore
-
Spare parts supplying:
-
Life Long Provide
-
Installation:
-
Engineer's Guide
-
After sale service:
-
Life-long Service
-
Material:
-
Carbon Steel
-
Factory Visit:
-
Welcomed Warmly
Quick Details
-
Capacity(t/h):
-
3-6
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TYM
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
21000 KG
-
Product name:
-
Gold Ore Grinding Machine
-
Application:
-
Stone Powder Grinding
-
Keywords:
-
Grinding Miller Ball Mill
-
Usage:
-
Grinding Mining Stone
-
Processed Materials:
-
Chrome Iron Ore
-
Spare parts supplying:
-
Life Long Provide
-
Installation:
-
Engineer's Guide
-
After sale service:
-
Life-long Service
-
Material:
-
Carbon Steel
-
Factory Visit:
-
Welcomed Warmly
Product Introduction

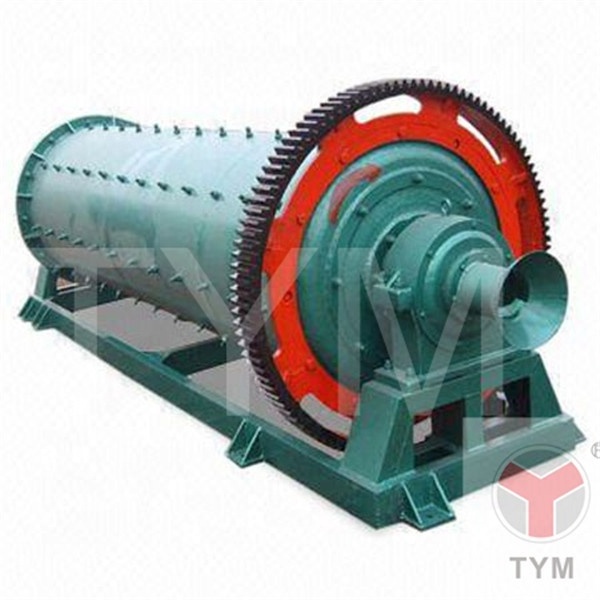

Ball mill
Technical advantages of our ball mill
1. Double bearing and low energy consumption
The main shaft adopts large diameter double row self-aligning roller bearing to replace sliding bearing, which reduces fabrication and energy consumption and makes the mill easy startup.
2. Convenient installation and high capacity
The feeder,with simple structure and separate installation, has two types, union feeder and drum feeder, and the mill also remains cover structure of common mills and has large diameter inlet and outlet bringing about large capacity.
3. Steady operation and high yield
With no inertial impact, the ball mill runs steadily and needs less time for maintenance, which improves efficiency.
With no inertial impact, the ball mill runs steadily and needs less time for maintenance, which improves efficiency.
Working Principles
The ball mill is a horizontal type and tubular running device which has two warehouses. This machine is grid type and its outside runs along gear. Materials uniformly through feeding trunnion spiral enter into the first hopper where has stepped lining plates or corrugated lining plates and various specification steel balls; when the cylinder rotating, the steel balls are lifted by centrifugal force and then fall by gravity, which brings impact and grinding to the materials. After coarse grinding in the first hopper, the materials through monolayer partition panel enter into the second hopper which has plane scale board with steel ball inside to be ground again. Finally, ground materials come out through the discharge grate and the grinding is completed.
Technical Parameter
|
Model
|
shell rotation speed
(r/min)
|
Ball load
(t)
|
Max. Feeding size(mm)
|
Discharging size(mm)
|
Capacity(t/h)
|
Motor power(KW)
|
Weight
(t)
|
|||||||
|
φ900x1800
|
36
|
1.5
|
20
|
0.075-0.89
|
0.65-2
|
18.5
|
4.6
|
|||||||
|
φ900x3000
|
36
|
2.7
|
20
|
0.075-0.89
|
1.1-3.5
|
22
|
5.6
|
|||||||
|
φ1200x2400
|
36
|
3
|
25
|
0.075-0.6
|
1.5-4.8
|
30
|
12
|
|||||||
|
φ1200x3000
|
36
|
3.5
|
25
|
0.074-0.4
|
1.6-5
|
37
|
12.8
|
|||||||
|
φ1200x4500
|
32.4
|
5
|
25
|
0.074-0.4
|
1.6-5.8
|
55
|
13.8
|
|||||||
|
φ1500x3000
|
29.7
|
7.5
|
25
|
0.074-0.4
|
2-5
|
75
|
15.6
|
|||||||
|
φ1500x4500
|
27
|
11
|
25
|
0.074-0.4
|
3-6
|
110
|
21
|
|||||||
|
φ1500x5700
|
28
|
12
|
25
|
0.074-0.4
|
3.5-6
|
130
|
24.7
|
|||||||
|
φ1830x3000
|
25.4
|
11
|
25
|
0.074-0.4
|
4-10
|
130
|
24.7
|
|||||||
|
φ1830x4500
|
25.4
|
15
|
25
|
0.074-0.4
|
4.5-12
|
155
|
32
|
|||||||
|
φ1830x6400
|
24.1
|
21
|
25
|
0.074-0.4
|
6.5-15
|
210
|
34
|
|||||||
|
φ1830x7000
|
24.1
|
23
|
25
|
0.074-0.4
|
7.5-17
|
245
|
36
|
|||||||
|
φ2100x3000
|
23.7
|
15
|
25
|
0.074-0.4
|
6.5-36
|
155
|
34
|
|||||||
|
φ2100x4500
|
23.7
|
24
|
25
|
0.074-0.4
|
8-43
|
245
|
42
|
|||||||
|
φ2100x7000
|
23.7
|
26
|
25
|
0.074-0.4
|
8-48
|
280
|
50
|
|||||||
|
φ2200x4500
|
21.5
|
27
|
25
|
0.074-0.4
|
9-45
|
280
|
48.5
|
|||||||
|
φ2200x6500
|
21.7
|
35
|
25
|
0.074-0.4
|
14-26
|
380
|
52.8
|
|||||||
|
φ2200x7000
|
21.7
|
35
|
25
|
0.074-0.4
|
15-28
|
380
|
54
|
|||||||
|
φ2200x7500
|
21.7
|
35
|
25
|
0.074-0.4
|
15-30
|
380
|
56
|
|||||||
|
φ2400x3000
|
21
|
23
|
25
|
0.074-0.4
|
7-50
|
245
|
54
|
|||||||
|
φ2400x4500
|
21
|
30
|
25
|
0.074-0.4
|
8.5-60
|
320
|
65
|
|||||||
|
φ2700x4000
|
20.7
|
40
|
25
|
0.074-0.4
|
12-80
|
400
|
94
|
|||||||
|
φ2700x4500
|
20.7
|
48
|
25
|
0.074-0.4
|
12-90
|
430
|
102
|
|||||||
|
φ3200x4500
|
18
|
65
|
25
|
0.074-0.4
|
12-100
|
800
|
137
|
|||||||
|
|
|
|
|
|
|
|
||||||||
Our Customers Site
Packing & Shipping
The package of all equipment is accord with the standard protective measures.The packing is suitable for short and long distance transportation. The moisture proof, quake proof, protected against dampness, and rustproof protection measures were taken to ensure the machine shipping to customers safely. All the machine will be packaged by plastic film.
Plastic film packaging
Large items will be wrapped in plastic film, such as jaw crusher, impact crusher, cone crusher, main mill, pipe, etc.
Box wooden packing
Small parts will be packed in wooden box, such as bolts, rubber sleeves, springs, etc
