Quick Details
-
Model Number:
-
overload protection switch
-
Rated Voltage:
-
125VAC/250VAC/32VDC, 125VAC/250VAC/32VDC
-
Product Name:
-
Overload Protection circuit breaker
-
Application:
-
Overload Protection
-
Rated Current:
-
2A to 30A
-
Waterproof Cap:
-
IB-WPC-2
-
Button Color:
-
Black(or Red)
-
Housing:
-
Plastic(or Bakelite)
-
Reset time:
-
In 60 seconds
-
Operating Temperature:
-
-25°C~+85 °C
-
Product Type:
-
overload circuit breaker
Quick Details
-
Poles Number:
-
2
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
overload protection switch
-
Rated Voltage:
-
125VAC/250VAC/32VDC, 125VAC/250VAC/32VDC
-
Product Name:
-
Overload Protection circuit breaker
-
Application:
-
Overload Protection
-
Rated Current:
-
2A to 30A
-
Waterproof Cap:
-
IB-WPC-2
-
Button Color:
-
Black(or Red)
-
Housing:
-
Plastic(or Bakelite)
-
Reset time:
-
In 60 seconds
-
Operating Temperature:
-
-25°C~+85 °C
-
Product Type:
-
overload circuit breaker

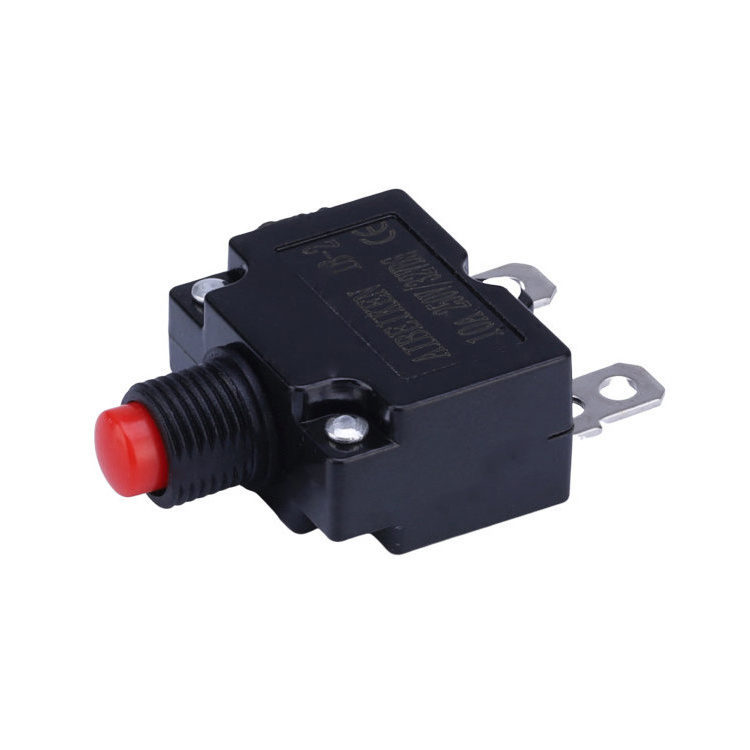

Circuit Breakers Protector Push Button Over Current Protection Reset Miniature 15 Amp Thermal Overload Switch
1. Rated Current : 2A~30A
2. Rated Voltage : 12VDC 250VAC 32VDC 50~60Hz
3. Open Capacity: 1,000A×125VAC 20A×250VAC
4. Hi-pot Test: 1,500V/min
5. Overload current : 10 times of rated current
6. Min voltage: less than 0.25V
7. Reset time : in 60 seconds
8. Insulation resistance : more than 500VDC × 100MΩ
9. Terminal temp : 100 % test under 25°C temperature rise less than 25°C
10. Life test: 125VAC × 150 % current, over 500 cycles
Application of IB series overload protector/circuit breaker:
1. UPS power supply; 2. Electric tools;
3. Power supply outlet; 4. Other electrical equipments
