Quick Details
-
Ice storage capacity:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBFI
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Bitzer/Coapland
-
Refrigerant:
-
R22/R404a
-
Cooling way:
-
Water Cooling /Air cooling
-
Expansion valve:
-
Denmark Brand Danfoss
-
Electrical components:
-
Korea - LG Brand
-
Solenoid valve:
-
Castal
-
Ice can material:
-
stainless steel 304
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
ce
Quick Details
-
Ice Shape:
-
ICE BLOCK
-
Voltage:
-
380v/ 220v
-
Power:
-
depends on temperature
-
Ice storage capacity:
-
customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CBFI
-
Dimension(L*W*H):
-
customized
-
Weight:
-
1000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Bitzer/Coapland
-
Refrigerant:
-
R22/R404a
-
Cooling way:
-
Water Cooling /Air cooling
-
Expansion valve:
-
Denmark Brand Danfoss
-
Electrical components:
-
Korea - LG Brand
-
Solenoid valve:
-
Castal
-
Ice can material:
-
stainless steel 304
-
After Warranty Service:
-
Field maintenance and repair service
-
Certification:
-
ce
Product Description
The ice block machine is one of the ice -making machine. The ice block produced are the largest size in the ice products. The area of contact with the outside world is small and it is not easy to melt. The application field of ice block machine: ice factories, food processing, food processing, water preservation, cooling, aquatic products, food preservation, ice sculpture in the field of aquatic products, and the field of edible ice sculpture can be customized according to demand. Form of ice block.
The working principle of the salt water ice system

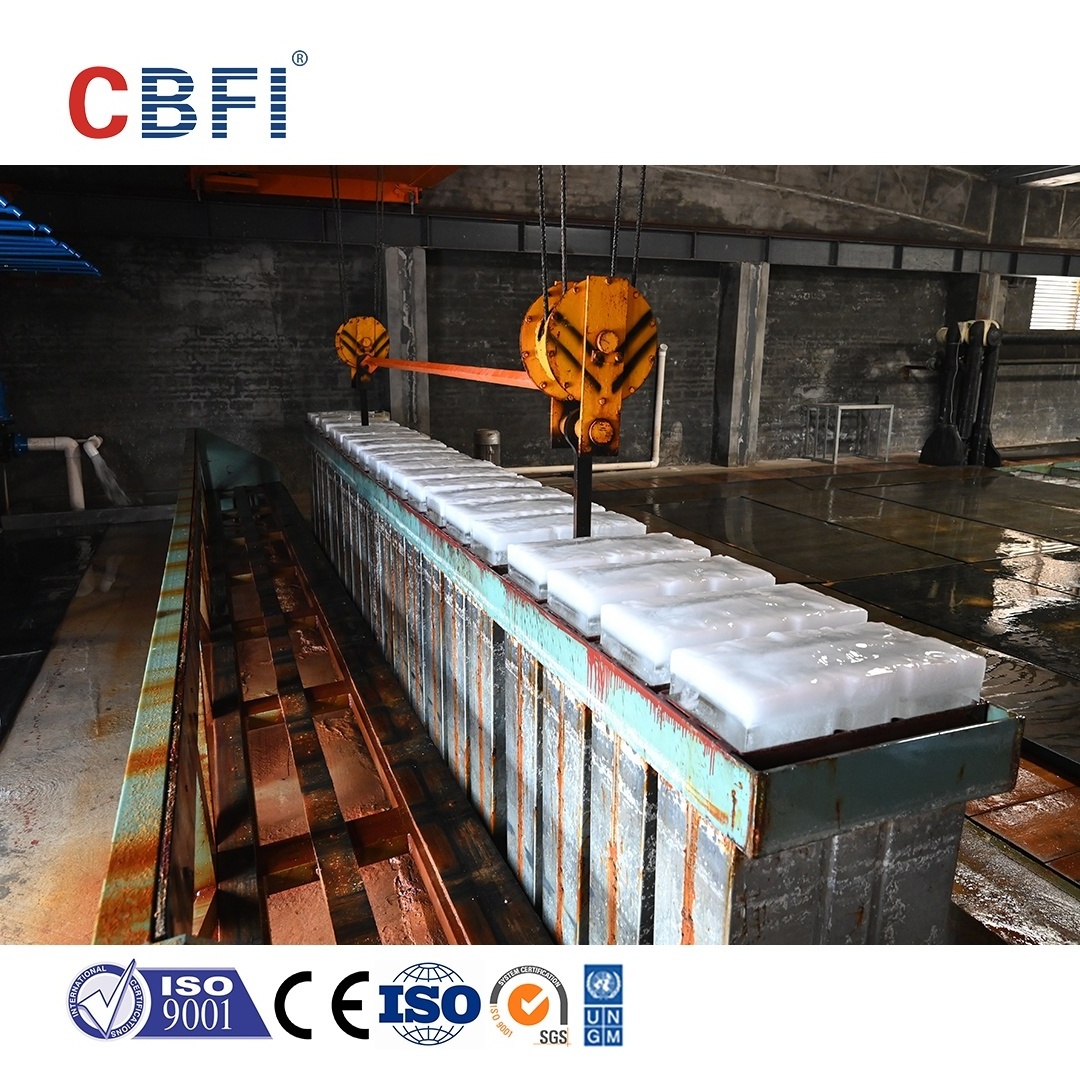

The ice pool is filled with saline, and the saline temperature is cooled by the evaporator. Add an appropriate amount of water in the ice mold and put it in an ice -making pool. Use low temperature salt water to freeze the water in the barrel to freeze into ice. When the ice is out of the ice, the M ice mold is fixed into a row, arranged in a total of n rows, and uses steel frames to fix it. In order to speed up the frozen speed of the ice, the salt water is evenly circulated between the ice mold, and the water in the ice bucket is frozen into ice into ice into ice into ice into ice. Later, the ice bucket shelf was poured into the icing tank with a driving device, soaked in the pool for 2-3 minutes, and melted the surface of the ice in the ice bucket. Leave the ice bucket and pour on the skating tract with slope, so that the ice cubes slide to the ice car. Then put the ice bucket in water and put it in the salt pool to continue the recycling of ice.
Product Details
Product Parameters
|
Model
|
Daily output(T/24h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Block ice weight(kw)
|
Unit size(L*W*Hmm)(Split Type)
|
|
Unit N.W.(kg)
|
||||||||
|
|
|
|
|
|
|
Main Host
|
Brine Tank
|
|
||||||||
|
BBI200
|
20
|
68.6
|
2.2
|
5.5
|
25
|
3500*1500*2200
|
11560*4200*1565
|
5500
|
||||||||
|
BBI300
|
30
|
104.3
|
8
|
3
|
50
|
3000*1500*2000
|
Consulting manufacturer
|
|
||||||||
|
BBI400
|
40
|
137.2
|
11
|
4
|
50
|
3950*1750*2310
|
|
|
||||||||
|
BBI500
|
50
|
181.2
|
12
|
4
|
50
|
3950*1750*2310
|
|
|
||||||||
|
BBI1000
|
100
|
362.4
|
24
|
8
|
100
|
3950*1750*2310*2
|
|
|
||||||||
|
1.Compressor Brand:Bitzer / Hanbell, Refrigerant: R22/R404A; Cooling Method:Water Cooling / Air Cooling;
2.Power Supply:Voltage 380V/3P/50Hz (For non-standard voltage,unit configuration needs to be calculated separately).
3.Operating Conditions: T(water supply): 20° C, T(ambient) : 32 C, T(condensing) : 38° C,T(evaporating):-18℃C.
4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
5.(The final interpretation of the above metioned parameters is in lcesource,there will be no further notice if there is any technical change)
|
|
|
|
|
|
|
|
|
||||||||
Successful Project
Packing process
Ice maker machine
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine. 4. All required components for install the machine will be provide.
Contact us
About us
FAQ
Q1. Whether can adjust the tube ice size?
Q 3. What shall we do if there is any machine's malfunction？
A3: You could see any malfunction reason from the touch screen and we could supply you the solution accordingly.
Q 4. Could you send your engineer from China to install the machines?
A4: Yes, we could send you enigneer from China to install your machine, you will be responsible for the accommodation and the installation cost.
Q5. Whats the deliver time of your machine?
A5: 1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer)
Q6. Whats the payment method you accept?
A6: Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram. 30% deposit, balance should by paid before shipping.
Q7. How long the warranty for machine I buy?
A7: 12 months since the deliver date.
Q8. How to install the machine ?
A8: a. manual book and video will be provided to guide you how to install the machine, and also our service online
b. technician can be sent to customer's site too, while the round ticket, visa, accommodation is at customer cost, Installation fee 100 USD/day/person. Local labors are necessary to support our technician's work.
A1:
Tube ice Diameter:22mm, 28mm.35mm
Tube ice lenght: 24-45mm Tube ice inner size: 3-5mm
Q2. Do you have engineer in our country to install the machine ?
A2: We could introduce the local engineer to you install the machines.
Tube ice lenght: 24-45mm Tube ice inner size: 3-5mm
Q2. Do you have engineer in our country to install the machine ?
A2: We could introduce the local engineer to you install the machines.
Q 3. What shall we do if there is any machine's malfunction？
A3: You could see any malfunction reason from the touch screen and we could supply you the solution accordingly.
Q 4. Could you send your engineer from China to install the machines?
A4: Yes, we could send you enigneer from China to install your machine, you will be responsible for the accommodation and the installation cost.
Q5. Whats the deliver time of your machine?
A5: 1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer)
Q6. Whats the payment method you accept?
A6: Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram. 30% deposit, balance should by paid before shipping.
Q7. How long the warranty for machine I buy?
A7: 12 months since the deliver date.
Q8. How to install the machine ?
A8: a. manual book and video will be provided to guide you how to install the machine, and also our service online
b. technician can be sent to customer's site too, while the round ticket, visa, accommodation is at customer cost, Installation fee 100 USD/day/person. Local labors are necessary to support our technician's work.
