Quick Details
-
Model Number:
-
GK-M1-7 Smart Whiteboard
-
Weight:
-
95 kg
-
Aspect Ratio:
-
2000:1
-
Panel Type:
-
LCD
-
Packing Dimension:
-
1846*1180*215 mm
-
Product Dimension:
-
1708.24*1026.49*89 mm
-
Product name:
-

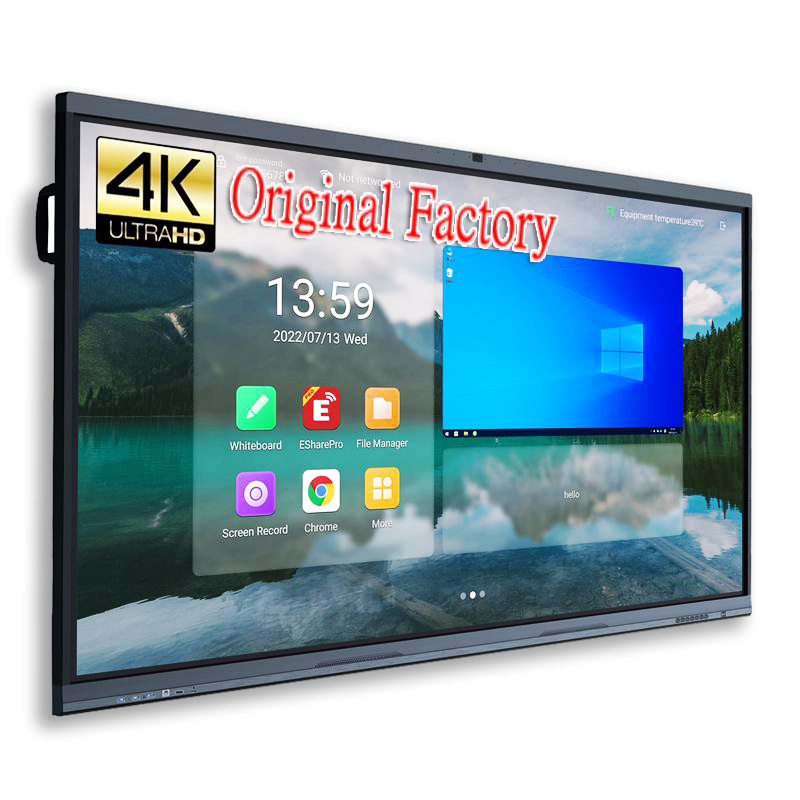

75 Inch Touch Screen Interactive Flat Panel Smart White board
-
Surface:
-
Wiredrawing Aluminum+Tempered glass
-
Touch screen:
-
20 Point IR Touch panel
-
Brightness:
-
450cd/m2
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel brand:
-
Brand New BOE / CSOT / LG Optional
-
Operating system:
-
Android 8.0 and above+Win7/10/11 Optional
-
Certificate:
-
CE/FCC/ROHS
-
Application:
-
Classroom, Training Room, Meeting Room, Home etc..
-
Warranty:
-
1 Year
Quick Details
-
Panel Size:
-
75inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GeeKing / OEM ODM
-
Model Number:
-
GK-M1-7 Smart Whiteboard
-
Weight:
-
95 kg
-
Aspect Ratio:
-
2000:1
-
Panel Type:
-
LCD
-
Packing Dimension:
-
1846*1180*215 mm
-
Product Dimension:
-
1708.24*1026.49*89 mm
-
Product name:
-
75 Inch Touch Screen Interactive Flat Panel Smart White board
-
Surface:
-
Wiredrawing Aluminum+Tempered glass
-
Touch screen:
-
20 Point IR Touch panel
-
Brightness:
-
450cd/m2
-
Installation Way:
-
Wall mounted (Floor stand Optional)
-
Panel brand:
-
Brand New BOE / CSOT / LG Optional
-
Operating system:
-
Android 8.0 and above+Win7/10/11 Optional
-
Certificate:
-
CE/FCC/ROHS
-
Application:
-
Classroom, Training Room, Meeting Room, Home etc..
-
Warranty:
-
1 Year
Why Choose Us
- Our Advantages -
1.
Strong OEM/ODM manufacturing capability:
8 Years Focus On Commercial Display One-stop Solutions,
14,000㎡ Factory Floorspace; Production capacity of 500 products per day;
2
.
Customized
MOQ=1
pcs:
From simple logo and packaging customization to complex product hardware and software solution design;
3.
Top 1
in large size shipments in China:
For products with the size of 100 inches and above, we have great advantages, and the shipment volume is among the top three in China;
4.
Two times
aging test:
During the production process, aging at 40 ℃ for 2 hour, and aging at room temperature for 4-8 hours after
offline.
We are very professional in system solutions for OEM/ODM 100 inch and above size smart interactive boards.
Product Description
Professional Ultra Big Size 100 105 110 Inch Digital Interactive Flat Panel Smart Whiteboard 4K Infrared Touch Interactive Board
2023 New Customized 65 75 86 98 Inch 4K Smart White Board Interactive Flat Panel Board Digital Smartboard Smart Whiteboard
Interactive board:
Ultra high 4K resolution，Sensitive 20 points IR touch，Built in professional whiteboard software，Professional Anti-Glare glass.
OEM ODM Ultra HD 4K Android OPS 55 Interactive Display Smart board 65 75 86 98 Inch Touch Screen Infrared Interactive Whiteboard
/
All In One Meeting Classroom Teaching UHD 20 Points Dual System Clever Touch screen interactive whiteboard Smart Board With Usb
Dual System:
Open ecosystem allows you to choose whichever apps are best for you and your organization. Interactive board have dual systems, Android 11 and windows 10, you can use existing Zoom, Google Meet, Microsoft Teams, Webex and other popular 3rd party video conferencing meetings .
Wireless Share:
Smart board supports phone pc tablet up to 4 users to screencast simultaneously via Airplay and Eshare, or by connecting in via H-DMI. With your screen cast, you can annotate as needed, share via video conferencing, or screenshots.Supports multi-person and multi-device editing and sharing on the 4K UHD interactive board in real-time.
|
Size (inch)
|
Area (
㎡
)
|
Persons
|
L*W*H (mm)
|
|
65
|
20-30
|
20
|
1486.08*901.26*88.9
|
|
75
|
30-40
|
35
|
1708*1026*89.1
|
|
86
|
50-80
|
50
|
1954.44*1165.21*89.1
|
|
100
|
60-120
|
100
|
22.18.24*1318.1*100.81
|
|
105
|
100-150
|
120
|
2508.84*1156.36*74.5
|
|
110
|
≥150
|
≥150
|
2502.04*1498.66*69.5
|
Specification
|
Product Name
|
All In One Interactive Smart Whiteboard For Conference & Education
|
|
|
Dual System
|
|
|
|
Windows 10 OS
|
Intel core i3/i5/i7 option,
|
|
|
|
Memory 4G/8G/16G option
|
|
|
|
Hard Disk: 128G/256G/512G/1T option
|
|
|
Android OS
|
Quad core, 3G RAM, 32G ROM, Android 8.0/9.0 version
|
|
|
LCD Panel
|
|
|
|
Size
|
65 inch / 75 inch / 86 inch / 98 inch Available
|
|
|
Panel Brand
|
LG、BOE、AU (gauge A screen)
|
|
|
type
|
TFT-LCD S-PVA
|
|
|
Resolution
|
3840 × 2160 (UHD) @60hz, 4K UHD screen
|
|
|
Brightness
|
450 cd/m²
|
|
|
Ratio contrast
|
2000:1
|
|
|
Visual Angle (horizontal/vertical)
|
178°/178°
|
|
|
Response time
|
8ms
|
|
|
Visual area(mm)
|
1645.96(W)×925.52(H) mm
|
|
|
Color gamut (NTSC)
|
72%
|
|
|
Backlight
|
WLED
|
|
|
display scale
|
16:9
|
|
|
Response time
|
＜8ms
|
|
|
Life
|
>60000H
|
|
|
Infrared touch characteristic
|
|
|
|
Touch the specifications
|
Infrared touch frame
|
|
|
glass
|
4mm tempered glass
|
|
|
Glass transmittance
|
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
|
|
|
Object induction number (IR)
|
Touch at 20
|
|
|
Number of infrared induction lines (W D)
|
32767 × 32767
|
|
|
Positional accuracy
|
More than 90% of the touch area is 2mm
|
|
|
The interface definition
|
USB 2.0(Full speed)
|
|
|
Touch the strength
|
Zero pressure touch
|
|
|
The light resistance
|
It has light resistance
|
|
|
Induction life
|
6 million times
|
|
|
The response time
|
＜8ms
|
|
|
The power supply mode
|
Full duplex usb-powered DC +5V up to 500mA
|
|
|
Switching power supply
|
|
|
|
Power consumption (typical value)
|
AC100-240V~(+/-10%),50/60Hz
|
|
|
Standby power consumption
|
270W
|
|
|
The power interface
|
1W
|
|
|
Switching power supply
|
European standard 220V two - phase three - wire system
|
|
|
Mechanical specification parameters
|
|
|
|
The net weight
|
88 kg
|
|
|
Gross weight
|
95.5 kg
|
|
|
Bare machine outline size (W x D x H)
|
1708.24×1026.49×89 mm
|
|
|
Package size (W x D x H)
|
1846×1220×215 mm
|
|
|
Shell material (face frame/back shell)
|
Plastic/Sheet metal
|
|
|
Shell color (face frame/back shell)
|
black
|
|
|
To protect the glass
|
4mm toughened glass/level 7 earthquake resistant
|
|
|
Type of installation
|
Supports Floor Stand / wall mount
|
|
|
The cooling way
|
Temperature-controlled fan dissipates heat
|
|
|
The environment
|
|
|
|
Working temperature
|
0℃~50℃
|
|
|
Working humidity
|
20%~80%(No condensation)
|
|
|
Storage temperature
|
-20℃~60℃
|
|
|
Store humidity
|
10%~90%(No condensation)
|
|
|
Display mode
|
S-ips, often black display, transmission
|
|
|
Maximum service time (hours/day)
|
24 hours
|
|
|
Features
|
|
|
|
The speaker
|
2×8Ω/5W(built in)
|
|
|
Support for input mode
|
Stylus writes keyboard
|
|
|
The attachment
|
|
|
|
The user manual
|
Manual, warranty card, certificate of conformity
|
|
|
cable
|
The power cord
|
|
|
Others (optional accessories)
|
Remote control, base/bracket, WiFi
|
|
