- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
AIK
-
Model Number:
-
WT
-
Product name:
-

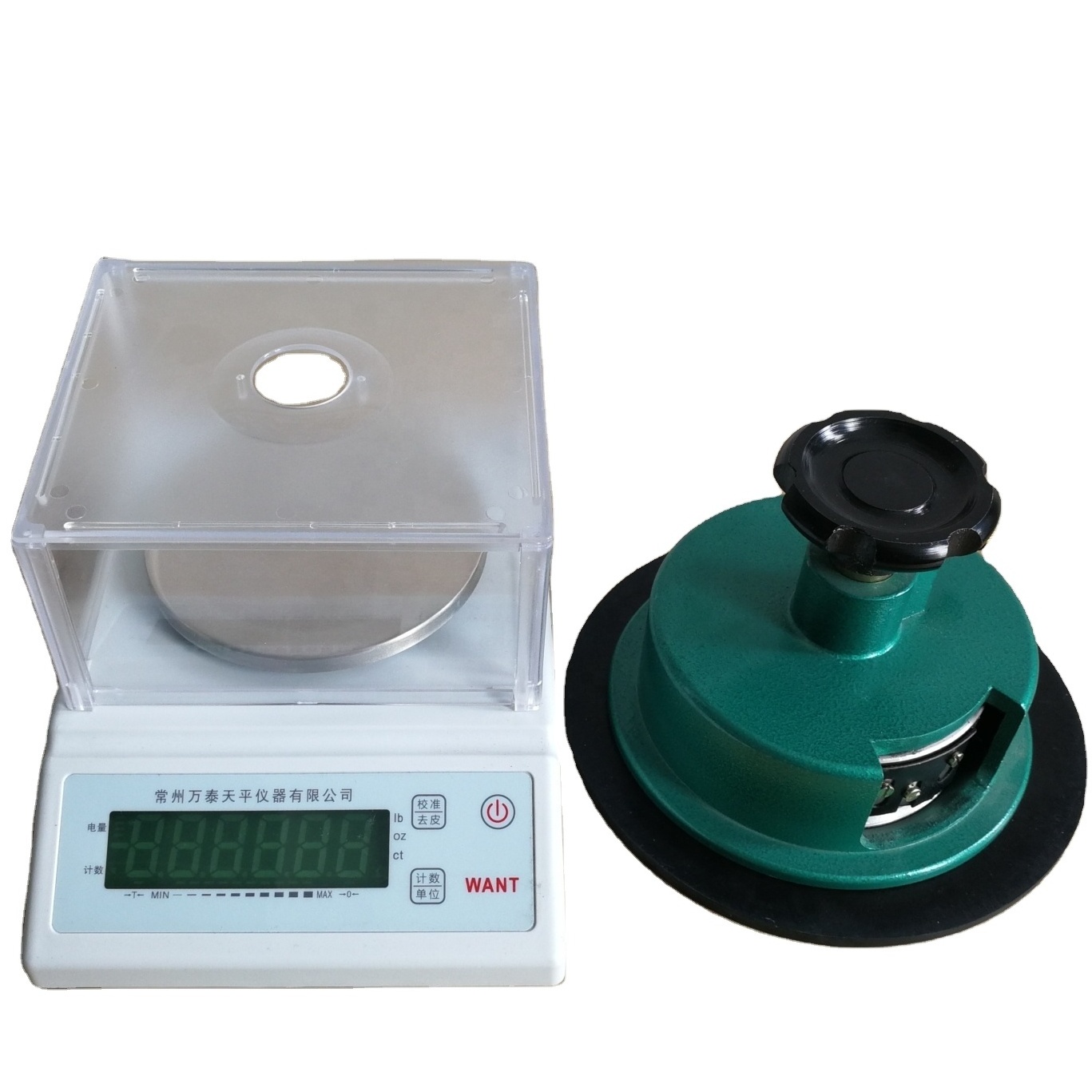

Digital weighing GSM scale for Meltblown cloth test
-
Pan size::
-
130mm or 160mm
-
Interface:
-
RS232 (optional)
-
Optional:
-
Rechargeable Battery
-
More Functions:
-
Counting, last remember, %, full range tare, over-load protection et
-
Units:
-
g, oz, ct, lb, GN, etc.
-
Certificate:
-
RoHS, ISO, CE, C-tick etc.
-
Warranty:
-
1 Year
Quick Details
-
Power Supply:
-
220v, AC(220-240V 50HZ / 110-120V 60HZ)
-
Display Type:
-
LCD (white back-light), LCD (white back-light)
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AIK
-
Model Number:
-
WT
-
Product name:
-
Digital weighing GSM scale for Meltblown cloth test
-
Pan size::
-
130mm or 160mm
-
Interface:
-
RS232 (optional)
-
Optional:
-
Rechargeable Battery
-
More Functions:
-
Counting, last remember, %, full range tare, over-load protection et
-
Units:
-
g, oz, ct, lb, GN, etc.
-
Certificate:
-
RoHS, ISO, CE, C-tick etc.
-
Warranty:
-
1 Year
Product Description
Textile Circle Cutter/Sampler
three colors: blue, gray, green, Durable and Robust
Net Weight: 2kg/pc
Color: gray, blue, green
Attachments: Cutter, rubber mat
Diameter: 100 CM2
packing: 12 pcs/carton (57×39×35cm)
Gross Weight: 25kg
three colors: blue, gray, green, Durable and Robust
Net Weight: 2kg/pc
Color: gray, blue, green
Attachments: Cutter, rubber mat
Diameter: 100 CM2
packing: 12 pcs/carton (57×39×35cm)
Gross Weight: 25kg
|
WT2002K
|
200g/0.01g
|
45usd/pc
|
|
Textile Circle Cutter/Sampler
|
|
30usd/pc
|
|
|
|
|
Operation Manual of Textile Circle Cutter/Sampler
1. Purpose:
A kind of circular sampler which is used to cut and get sample
from various of wool, cotton, fiber, knitting and so on.
2. How to use:
1）- Putting sample to be cut on rubber matting, then put sampler on the sample,too. Taking the locking device out, and turning around about 90º. One hand controls the sampler, and the other hand holds the handwheel, pressing and rotating the handwheel clockwise. (Rotation> 90º)
2）- Taking the locking device back. Do not let blades outside in order to avoid cutting your hands or something else.
1. Purpose:
A kind of circular sampler which is used to cut and get sample
from various of wool, cotton, fiber, knitting and so on.
2. How to use:
1）- Putting sample to be cut on rubber matting, then put sampler on the sample,too. Taking the locking device out, and turning around about 90º. One hand controls the sampler, and the other hand holds the handwheel, pressing and rotating the handwheel clockwise. (Rotation> 90º)
2）- Taking the locking device back. Do not let blades outside in order to avoid cutting your hands or something else.
3. Structure and Adjustment:
1）-There are four blades, you can replace new blades as you wish. Our blades are ordinary razor blades.
Operations: Loosening all cross screws, removing the pressure plate and blade carefully, fixing new blades and tightening screws again.
Please note: Making sure to keep these four blades in the same level.
2）-There are many snicks on the bottom of sampler to avoid skidding and cut easily.
4. Notes:
1）- Be careful,blades are very sharp. Do not put your hands under sampler
2）- Please using sampler on rubber matting. If not, cleaning it and putting back it in the box.
3）- After a period of using, if the blade is blunt, please fix new blade as above 4.1 item. You can buy blades in any store
easily.
1）-There are four blades, you can replace new blades as you wish. Our blades are ordinary razor blades.
Operations: Loosening all cross screws, removing the pressure plate and blade carefully, fixing new blades and tightening screws again.
Please note: Making sure to keep these four blades in the same level.
2）-There are many snicks on the bottom of sampler to avoid skidding and cut easily.
4. Notes:
1）- Be careful,blades are very sharp. Do not put your hands under sampler
2）- Please using sampler on rubber matting. If not, cleaning it and putting back it in the box.
3）- After a period of using, if the blade is blunt, please fix new blade as above 4.1 item. You can buy blades in any store
easily.
Packing & Delivery
FAQ
1. Q: Are you a factory or trading company?
A: We are a factory.
2. Q: MOQ?
A: 1 piece.
3. Q: OEM service?
A: We can produce scales with your logo, brand, packing.MOQ is 100pcs/model. If your trail order is less than
100pcs, please pay us USD100 for OEM, we will refund you once your order quantity is over 100pcs.
A: We are a factory.
2. Q: MOQ?
A: 1 piece.
3. Q: OEM service?
A: We can produce scales with your logo, brand, packing.MOQ is 100pcs/model. If your trail order is less than
100pcs, please pay us USD100 for OEM, we will refund you once your order quantity is over 100pcs.
4. Q: Delivery date?
A: 1-3 days for sample, 15-20 days for 100pcs.
A: 1-3 days for sample, 15-20 days for 100pcs.
5. Q: Payment Method?
A: L/C at sight,T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
A: L/C at sight,T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
6. Q: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days),port of loading: Shanghai
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days),port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)
7. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Changzhou City, Jiangsu Province, China,near Shanghai.You can fly to Shanghai Hongqiao airport.Welcome to visit us!
A: Our factory is located in Changzhou City, Jiangsu Province, China,near Shanghai.You can fly to Shanghai Hongqiao airport.Welcome to visit us!
