Quick Details
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Flux(lm):
-
1000LM
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Place of Origin:
-
China
-
Model Number:
-
AM-US230X12 AM-US300X18
-
Product name:
-
Flat LED Panel Light
-
Type:
-
staircase lamp with motion sensor
-
Power:
-
12W / 18W
-
Size:
-
230mm/300mm*25mm
-
Material:
-
ABS
-
Voltage:
-
85-265Vac
-
Sensor Mode:
-
Dim 20% or ON OFF
-
Installation:
-
Ceiling Surface Mounted
-
MOQ:
-
100pcs
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Application:
-
Hotel, apartment, office building, Mall, Corridor, stairs, office, building
-
Lamp Body Material:
-
ABS
-
Warranty(Year):
-
2-Year
-
Lamp Luminous Flux(lm):
-
1000LM
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 45
-
Place of Origin:
-
China
-
Model Number:
-
AM-US230X12 AM-US300X18
-
Product name:
-
Flat LED Panel Light
-
Type:
-
staircase lamp with motion sensor
-
Power:
-
12W / 18W
-
Size:
-
230mm/300mm*25mm
-
Material:
-
ABS
-
Voltage:
-
85-265Vac
-
Sensor Mode:
-
Dim 20% or ON OFF
-
Installation:
-
Ceiling Surface Mounted
-
MOQ:
-
100pcs
IP42 Built in motion sensor Flush Mount Round Flat LED Panel Light for corridor porch staircase
The Panel Lamp is equipped with a Microwave Motion Sensor. It has an induction angle of 140 degrees with up to 6-8 meters radius range. The sensor can be activated by a person or any moving objects toward the light source.
Once motion is detected, the light will automatically be switched on 100% brightness, and it will be off after no movement for 20 seconds.
With its high performance and easy installation as standard, it can be used in a wide range of applications, including retail and office space, hotels, conference rooms, kitchens, Hallway and corridors.
Feature

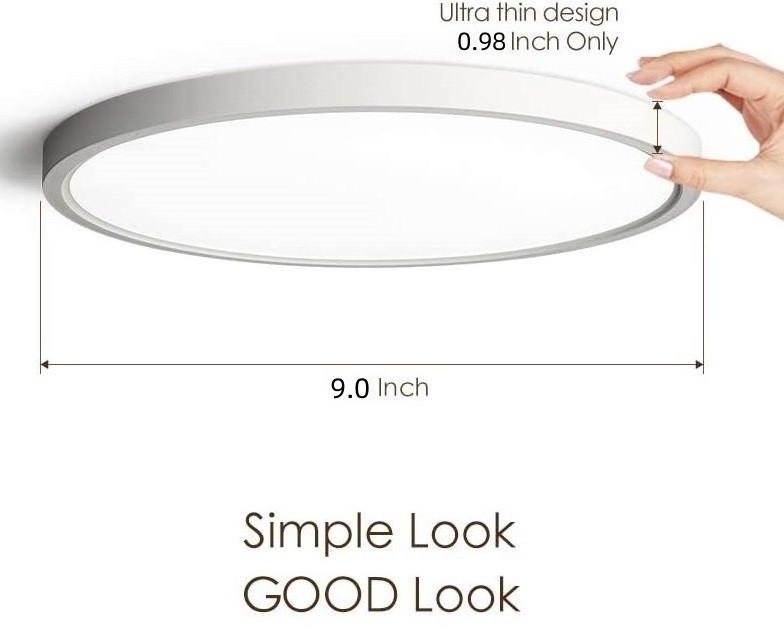

- [Elegant Design ] Ultra slim (less than 1 in.) made it perfect for any low ceiling area
- [ Sensor optional ] no motion, it keep off or dim. motion activated, it turn to full power.
- [IP Rating IP42] Dust-proof, anti-mosquito, moisture proof.
- [Wide application ]Ideal for Closet Stairway Balcony Foyer Basement Utility Room
- [Easy to install ] Directly connected to 110V-220V mains,just 2 steps to complete the installation
|
Parameter : |
||
|
Model No. |
AM-230US12 |
AM-300US18 |
|
Full / Dim Power(W) |
12W |
18W |
|
Base Size(mm) |
φ230 |
φ300 |
|
Height(mm) |
25mm |
|
|
Operation Voltage |
AC85-265V/50Hz |
|
|
CRI |
>Ra 80 |
|
|
CCT |
2700K / 6500K |
|
|
LED Qty |
72pcs |
96pcs |
|
Light Source |
SMD2835 |
SMD2835 |
|
Output Lumen (LM) |
>1000 |
>1600 |
|
Lumen Efficiency |
>85lm/W |
|
|
IP Rating |
IP20 |
|
|
Lifespan (hrs) |
30000 |
|
|
Power Factor |
0.9 |
|
|
Sensor Mode |
Full/Dim (20% standby) or On/Off |
|
|
Detection Angle |
180°*360° |
|
|
Detection Distance |
6-8m Radius |
|
|
Delay Time |
18-20 sec (To be customized) |
|
|
Material |
ABS |
|
|
Installation Type |
Surface Mounted Type |
|
|
Warranty |
2 Years |
|
