Quick Details
-
Voltage:
-
110/220/380/415/480 V
-
Power:
-
20000w
-
Dimension(L*W*H):
-
2700X1450X2210
-
Weight (KG):
-
400
-
Marketing Type:
-
New product 2023
-
Evaporation Capacity(kg/h):
-
5-85
-
Refrigerant:
-
R134A
-
Machine Body Material:
-
SS 304
-
Temperature Range:
-
30-75℃
-
Ambient Temperature:
-
-10-43 ℃
-
Compressor:
-
Copeland/Scroll
-
Noise:
-
Low Noise
-
After Warranty Service:
-
Online support
-
Advantage:
-
saving energy 60% ,environment protection
-
Name:
-
Dryer For Fruit And Vegetable/Dryer Food
-
Drying method:
-
new type air energy heating way
Quick Details
-
Type:
-
Heat Pump Dryer Equipment
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TianJie
-
Voltage:
-
110/220/380/415/480 V
-
Power:
-
20000w
-
Dimension(L*W*H):
-
2700X1450X2210
-
Weight (KG):
-
400
-
Marketing Type:
-
New product 2023
-
Evaporation Capacity(kg/h):
-
5-85
-
Refrigerant:
-
R134A
-
Machine Body Material:
-
SS 304
-
Temperature Range:
-
30-75℃
-
Ambient Temperature:
-
-10-43 ℃
-
Compressor:
-
Copeland/Scroll
-
Noise:
-
Low Noise
-
After Warranty Service:
-
Online support
-
Advantage:
-
saving energy 60% ,environment protection
-
Name:
-
Dryer For Fruit And Vegetable/Dryer Food
-
Drying method:
-
new type air energy heating way

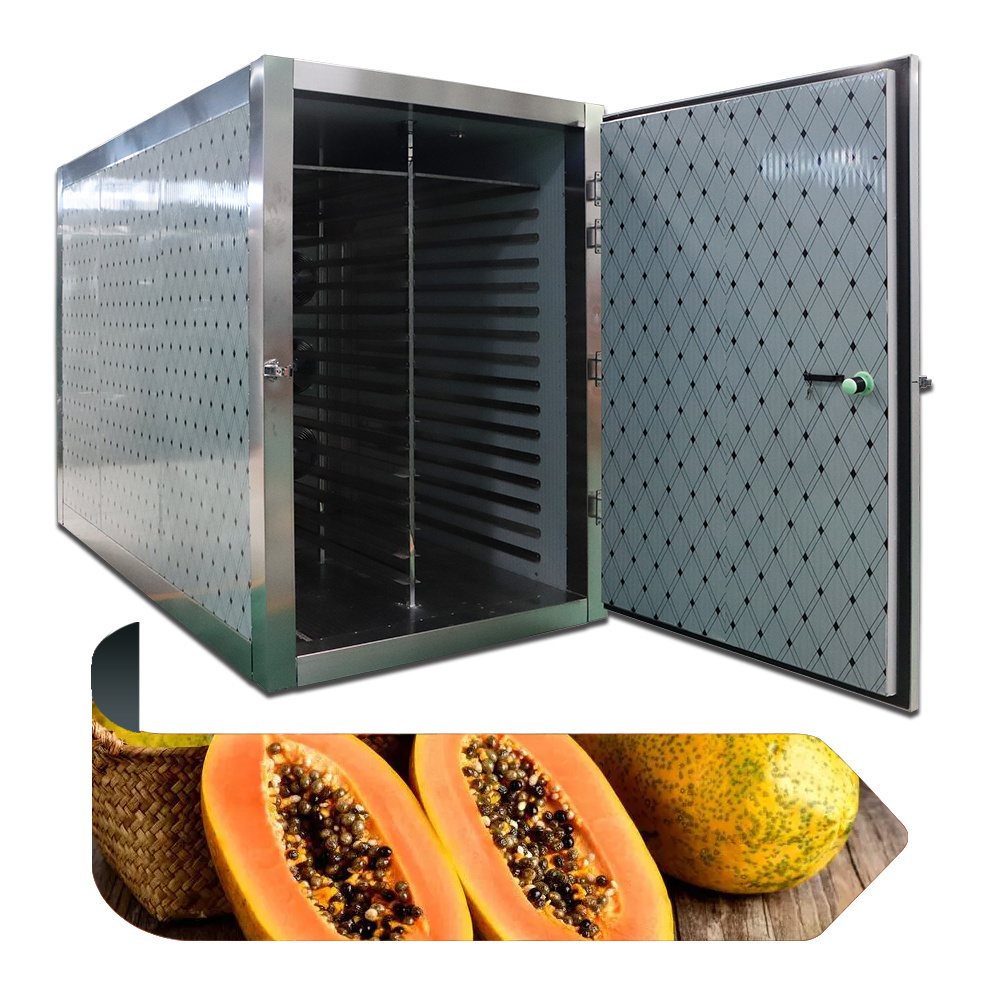

Machinery heat pump dryer incense stick drying room drying machine
Tianshun Heat pump dryer takes advantage of the reversed Carnot principle, absorbing the heat from around and sending the heat to the materials which will be dried.
This kind of dryer is mainly composed of heat pump dryer and drying chamber.
This dryer will be controlled by touch screen controller, and the temperature can be adjusted.
Three-dimensional circulation wind design Smaller temperature fluctuations and more uniform drying.
How Does It Work?
1, Dryer evaporator of refrigerant absorb the air from outside.
2, then compressor works that make the air temperature rise.
3, heat exchanger change the hot air into drying chamber.
4, final fruits will be dried by the hot air circulating in drying chamber.
| Item Name | Drying room all-in-one machine | |||
| PUR Panel | mm | 10 | 10 | 10 |
| Unit Type | 3P | 3P | 5P | |
| Drying temperature range | ℃ | 30-75 | ||
| Ambient temperature range | ℃ | -5-43 | ||
| Power type | 220V 50HZ | 380V 3N 50HZ | ||
| Compressor type | High temperature fully enclosed scroll compressor | |||
| Number of compressors | N | 1 | 1 | 1 |
| Refrigerant | R134A | |||
| Rated heating capacity | kW | 10.2 | 10.2 | 17.1 |
| Rated input power | kW | 4.3 | 4.3 | 6.4 |
| Rated current | A | 21.6 | 10.9 | 14.4 |
| Electric heating power | kW | 6 | 6 | 12 |
| Maximum input power | kW | 10.8 | 10.8 | 19.1 |
| Input current | A | 54.1 | 21.4 | 36.6 |
| Circulation fan power | kW | 1.5 | 1.5 | 1.5 |
| Rated air volume | m³/h | 12000 | 12000 | 12000 |
| Dehumidification fan power | kW | 0.25 | 0.25 | 0.25 |
| Fresh air volume | m³/h | 2000 | 2000 | 2000 |
| Moisture displacement | kg/h | 15 | 15 | 20 |
| Size | mm | 2700×1450×2210 | 2700×1450×2210 | 3400×1850×2210 |
| Weight | KG | 720 | 720 | 890 |
