Quick Details
-
Model Number:
-

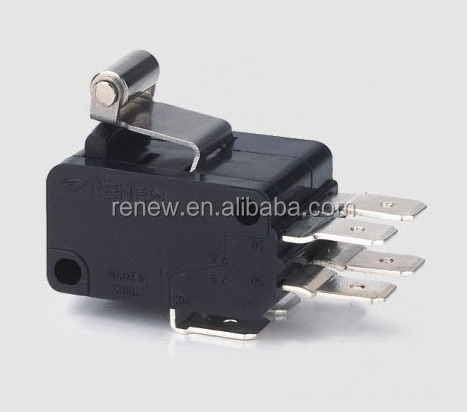

RV-165S-1C5/2
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25~+80℃ , 85%RH max.
-
Protection Level:
-
IP40
-
Contact:
-
silver
-
Color:
-
red & black
-
Rating:
-
16A, 250VAC
-
Contact form:
-
SPDT
-
Actuator:
-
lever, roller lever, push button micro switch
-
Contact gap:
-
0.5mm
-
Terminal:
-
187/250 England made
-
Material:
-
stainless steel lever type micro switch
-
Certification:
-
CE CCC
Quick Details
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
China
-
Brand Name:
-
RENEW
-
Model Number:
-
RV-165S-1C5/2
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25~+80℃ , 85%RH max.
-
Protection Level:
-
IP40
-
Contact:
-
silver
-
Color:
-
red & black
-
Rating:
-
16A, 250VAC
-
Contact form:
-
SPDT
-
Actuator:
-
lever, roller lever, push button micro switch
-
Contact gap:
-
0.5mm
-
Terminal:
-
187/250 England made
-
Material:
-
stainless steel lever type micro switch
-
Certification:
-
CE CCC
P/N: RV series micro switch/snap action switch/miniature micro switch
Model No.: RV-165S-1C5/2
Rated data and performance of micro switch RV type
|
Item Type |
RV-21 RV-16 RV-15 RV-11 RV-10 |
|
|
Allowable operating speed |
0.1mm~1m/s (pin plunge type) |
|
|
Allowable operating frequency |
Mechanical 600 operations/min Electrical 30 operations/min |
|
|
Insulation resistance |
100 mΩ min. (at 500V DC) |
|
|
Contact resistance (initial value ) |
Max 15mΩ |
|
|
Dielectric strength |
Between the non-continious terminals |
AC 1000V 50/60HZ for 1min |
|
Between non voltage metal parts and each terminal |
AC 2000V 50/60HZ for 1min |
|
|
Between the grounding and the each terminal |
||
|
Vibration resistance |
Malfunction |
10 to 55HZ, 1.5mm double amplitude (contact gap is less than 1ms ) |
|
Shock resistance |
OF 0.49N type: less 98m/s2 OF 1.96N,3.29N type :less 294m/s2 OF 0.98 N type : 196m/s2 |
|
|
Expected Life |
Mechanical life (order OT) |
50,000,000 operations min. (frequency is 60 operations/min) |
|
Electrical life(resistive load ) |
100,000 operations min. (frequency is 20 operations/min) |
|
|
Ambient operation temperature & Ambient humidity |
-25~+80(with no icing ), 85%RH max.(+5~35) |
|
|
Contact material |
AgNi alloy ; AgCdO alloy (not in the ROHS order ) |
|
|
Weight |
Approx. 6.2g(pin plunger type ) |
|
Remark : micro switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life of micro switch and the capability of micro switch may be decreased because of the load capacity , so please consultation us freely .
Other information of micro switch RV type
| Rating: | 21A/16A/11A/6A, AC250V |
| Contact form | SPDT/SPST-NC/SPST-NO |
| Terminals: | #187/#250 England made/ Screw fixed terminal/Solder terminal |
| Maximum Operating Force | 50gf-400gf |
Ratings
| Model | Rated voltage | No-inductive load | Inductive load | ||||||
| Resistive load | Lamp load | Inductive load | Motor load | ||||||
| NC | NO | NC | NO | NC | NO | NC | NO | ||
| RV-21 | 250VAC | 21A | 3A | 12A | 4A | ||||
|
8VDC 30VDC 125VDC 250VDC |
21A 14A 0.6A 0.3A |
5A 5A 0.1A 0.05A |
12A 12A 0.6A 0.3A |
7A 5A 0.1A 0.05A |
|||||
| RV-16 | 250VAC | 16A | 2A | 10A | 3A | ||||
|
8VDC 30VDC 125VDC 250VDC |
16A 10A 0.6A 0.3A |
4A 4A 0.1A 0.05A |
10A 10A 0.6A 0.3A |
6A 4A 0.1A 0.05A |
|||||
| RV-11 | 250VAC | 11A | 1.5A | 6A | 2A | ||||
|
8VDC 30VDC 125VDC 250VDC |
11A 6A 0.6A 0.3A |
3A 3A 0.1A 0.05A |
6A 6A 0.6A 0.3A |
3A 3A 0.1A 0.05A |
|||||
| RV-6 | 250VAC | 6A | 3A | 4A | -- | ||||
|
8VDC 30VDC 125VDC 250VDC |
6A 6A 0.4A 0.3A |
3A 3A 0.1A 0.05A |
4A 4A 0.4A 0.2A |
-- | |||||
outside dimension of micro switch RV type:
Warranty period: 12 months.
