Quick Details
-
Model Number:
-
SC90
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
4.4KW
-
Dimension(L*W*H):
-
580*470*650MM
-
Weight:
-
90 kg, 90KG
-
Engine:
-
6HP
-
Product name:
-

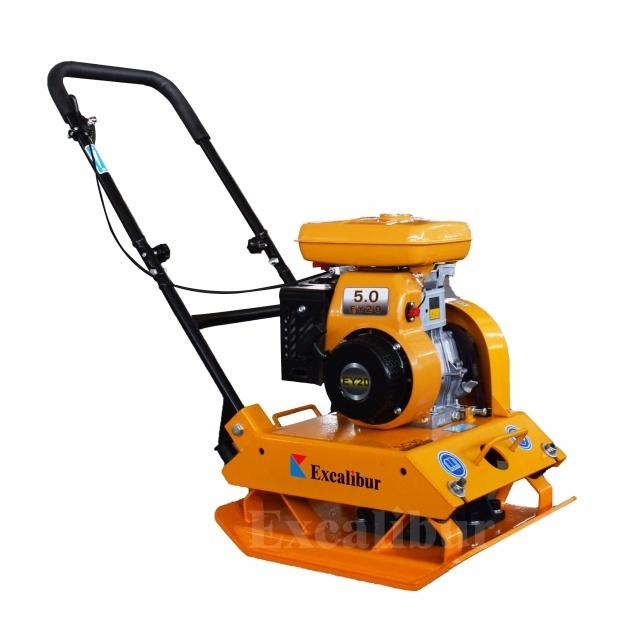

Vibratory Plate Compactor
-
Centrifugal force:
-
13KN
-
Walking Mode:
-
forward
-
Frequency:
-
5600pm
-
Travel Speed:
-
15-20m/min
-
Plate Size(LXW):
-
580*470mm
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
INTERTEK/CE/ISO9001/BV/SABER
Quick Details
-
Marketing Type:
-
2023 Hot Product
-
Application:
-
Construction Site
-
Brand Name:
-
Excalibur
-
Model Number:
-
SC90
-
Place of Origin:
-
Jiangsu, China
-
Power:
-
4.4KW
-
Dimension(L*W*H):
-
580*470*650MM
-
Weight:
-
90 kg, 90KG
-
Engine:
-
6HP
-
Product name:
-
Vibratory Plate Compactor
-
Centrifugal force:
-
13KN
-
Walking Mode:
-
forward
-
Frequency:
-
5600pm
-
Travel Speed:
-
15-20m/min
-
Plate Size(LXW):
-
580*470mm
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Free spare parts
-
Certification:
-
INTERTEK/CE/ISO9001/BV/SABER
Application
plate compactor 90kg best selling China
The plate compactor is widely used in the compaction of soil, asphalt roads, sidewalks, bridges, and narrow fields.
Product Overview
Optional Device
Product Specifications
|
Plate Compactor Model
|
SC-50
|
SC-60
|
SC-77
|
SC-77W
|
SC-90
|
SC-100
|
SC-140
|
||||||
|
Plate size L*W(mm)
|
535*290
|
570*370
|
570*370
|
560*475
|
570*450
|
708*450
|
630*500
|
||||||
|
Travel speed(m/min)
|
15-20
|
20-25
|
15-20
|
15-20
|
15-20
|
15-20
|
15-20
|
||||||
|
Limited grade ability
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
||||||
|
Vibration Frequency vpm(Hz)
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
5600
|
||||||
|
Centrifugal force(KN)
|
10
|
10
|
10.5
|
13.5
|
13
|
20
|
30
|
||||||
|
Engine model Option
|
Lifan154F@1.4kw(3HP)4 cycle Gasoline Engine
|
Honda GX160@4.1kW(5.5HP) 4 cycle Gasoline Engine
Robin EY20-3C @3.7kW(5HP) 4 cycle Gasoline Engine
Lifan G160F @4.1kW (5.5HP) 4 cycle Gasoline Engine
Diesel Engine D173F@ 4.4kW(6.0HP)
|
|
|
|
|
|
||||||
|
Starting system
|
Recoil Start
|
|
|
|
|
|
|
||||||
|
Packing size(L*W*H)mm
|
740*360*550
|
890*430*660
|
850*530*670
|
880*530*670
|
580*470*650
|
700*480*580
|
670*500*800
|
||||||
|
Net weight(KG)
|
51
|
69
|
75
|
80
|
80
|
97
|
110
|
||||||
Recommend Products
Packing & Shipping
All Excalibur Plate Compactors are packed in strong 7-layer cartons. For reversible plate compactors, we use iron frame packing together with 7-layer cartons.
