Quick Details
-
Brand Name:
-
Big Cubic
-
Voltage:
-
No power
-
Electric Current Type:
-
wind
Quick Details
-
Mounting:
-
Roof Fan
-
Power:
-
No power
-
Place of Origin:
-
China
-
Brand Name:
-
Big Cubic
-
Voltage:
-
No power
-
Electric Current Type:
-
wind
Product Description
Performance characteristics:

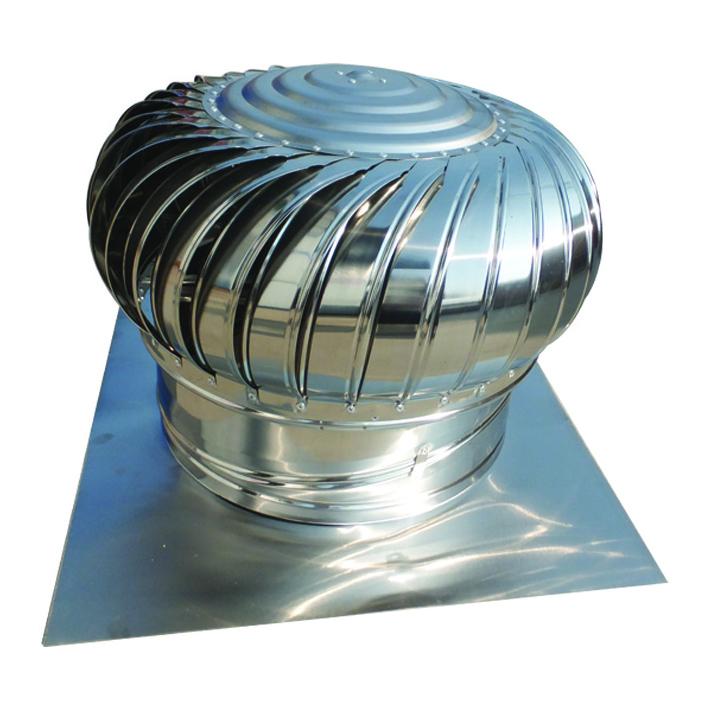

An automatic roof ventilator uses the pressure difference between the raising warmed air inside the house,and the air with wind or rain outside the house to compel the main part to rotate, with the aim of circulating the air. lt can accelerate the air circulation and create a comfortable working environment. This product is the ideal option for ventilation and dust removal of all kinds of buildings.
|
Model
|
Throat Opening
Caliber(mm)
|
Outside Diameter
of Turbine(mm)
|
Turbine
Height(mm)
|
Inlet Air
Speed(m/s)
|
Air Volume
(m/h)
|
Weight(kg)
|
Material
|
|
DLF-500
|
500
|
630
|
350
|
3.4
|
2520
|
8.5
|
Stainless steel
|
|
DLF-600
|
600
|
730
|
420
|
3.4
|
3600
|
11
|
Stainless steel
|
Details Images
1.The frames all adopt the high quality stainless steel by stretching forming , no rust , beautiful appearance .
2.The aluminum punching blade , attractive appearance , light weight , large air volume , low vibration , low noise .
3. The fixed mount with special adjustable angle design which could change air direction as per requipment . Stable operation .
2.The aluminum punching blade , attractive appearance , light weight , large air volume , low vibration , low noise .
3. The fixed mount with special adjustable angle design which could change air direction as per requipment . Stable operation .
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
