Quick Details
-
Core Components:
-
Blade
-
Product name:
-
vertical sawmill machine
-
Model:
-
KL-YC300
-
Voltage:
-
380V/50Hz/3Phase
-
Power:
-
7.5kw
-
Blade Size:
-
800 mm
-
Processing Diameter:
-
300mm Max.
-
Blade Speed:
-
30-120 pcs/h
-
Blade thickness:
-
1-1.5 mm
-
Size:
-
1300*1300*1100mm
Quick Details
-
Place of Origin:
-
China
-
Application:
-
Woodworking
-
Weight (KG):
-
380 KG
-
Core Components:
-
Blade
-
Product name:
-
vertical sawmill machine
-
Model:
-
KL-YC300
-
Voltage:
-
380V/50Hz/3Phase
-
Power:
-
7.5kw
-
Blade Size:
-
800 mm
-
Processing Diameter:
-
300mm Max.
-
Blade Speed:
-
30-120 pcs/h
-
Blade thickness:
-
1-1.5 mm
-
Size:
-
1300*1300*1100mm

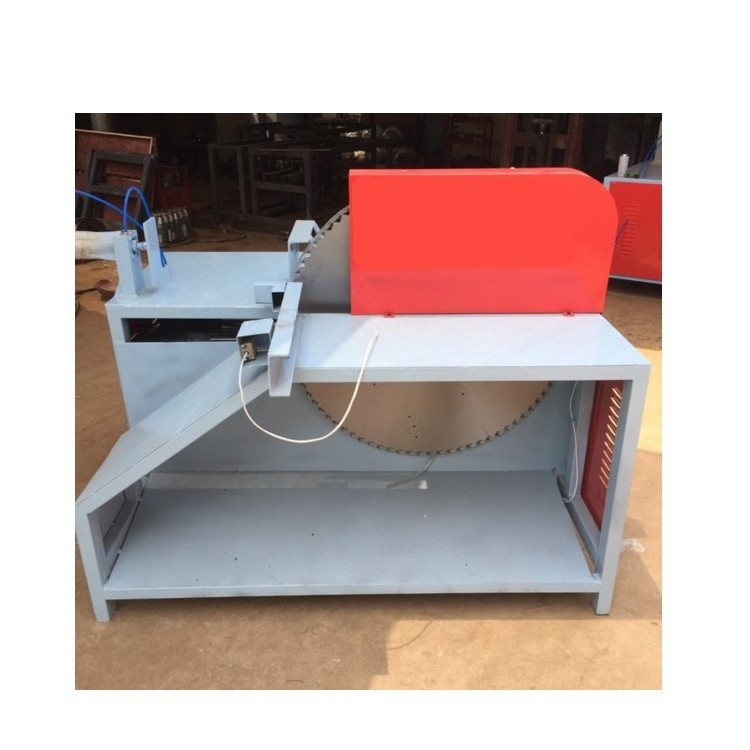

Application
Saw Wood Cutting machine
adopts side-shift pneumatic principle and induction type automatic sawing method, which pushes the wood against the fixed-length switch, and can use the foot switch or the fixed-length position stroke Switch, the cylinder automatically clamps the wood and cuts the log instantly.
--------
Freely adjusts the cutting back and forth speed, the length of the cut wood can be adjusted arbitrarily, which is ten times higher than the traditional semi-automatic cutting machine. It is efficient and can guarantee the safety of the staff. It is wood A good helper for processing companies..
--------
Freely adjusts the cutting back and forth speed, the length of the cut wood can be adjusted arbitrarily, which is ten times higher than the traditional semi-automatic cutting machine. It is efficient and can guarantee the safety of the staff. It is wood A good helper for processing companies..
Products Description
Features of Saw Wood Cutting machine
1. The principle of circular saw blade cutting with the pipe not rotating.
2. The cutting speed is controlled by frequency conversion and can be adjusted at will.
3. Cutting speed: about 30-120 pieces per minute.
4. Cutting repeat accuracy: ±0.1 MM
5. Cutting blade thickness: 1-1.5MM, according to different materials.
6. The fixture is universal in a certain range.
7. Scope of application: various pipes, bars and profiles such as copper, aluminum and plastic.
8. It has the function of no burr on the end face of the processed workpiece.
9. It has the function of not damaging the working surface.
10. It has the function of automatic shutdown and alarm when the material is not expected
Size information
|
Model
|
KL-YC300
|
KL-YC350
|
|
Voltage
|
380V/50Hz/3Phase
|
380V/50Hz/3Phase
|
|
Power
|
7.5kw
|
11Kw
|
|
Max cutting diameter
|
300mm
|
350mm
|
|
Log locking
|
Pneumatic
|
Pneumatic
|
|
Saw blade diameter
|
800mm
|
800mm
|
|
Control
|
Foot switch
|
Foot switch
|
|
Overall size(L*W*H)
|
600kg
|
700kg
|
|
Weight
|
1300*1300*1100mm
|
1400*1300*1200mm
|
Products Display
We also have other wood cutting machines as blow:
Our factory specializes in the production and customization of 1 to 4 meters round wood sliding table saws,
as well as special-shaped sliding table saws and multi-purpose saws according to customer needs.
