Quick Details
-
Brand Name:
-
IWIN
-
Model Number:
-
U960
-
Product name:
-
Cross Hole Ultrasonic Monitor 4 Channels Borehole Logging Equipment
-
Operation method:
-
Touch screen
-
Number of channels:
-
4 channels
-
One-time section number:
-
6
-
Host Size:
-
300x200x55 mm
-
Power supply mode:
-
220V-16V AC/DC
-
Communication interface:
-
USB,Bluetooth,wifi
-
Gain Accuracy (dB):
-
0.5
-
Bandwidth (kHz):
-
1-500
-
Dynamic range (dB):
-
146
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
IWIN
-
Model Number:
-
U960
-
Product name:
-
Cross Hole Ultrasonic Monitor 4 Channels Borehole Logging Equipment
-
Operation method:
-
Touch screen
-
Number of channels:
-
4 channels
-
One-time section number:
-
6
-
Host Size:
-
300x200x55 mm
-
Power supply mode:
-
220V-16V AC/DC
-
Communication interface:
-
USB,Bluetooth,wifi
-
Gain Accuracy (dB):
-
0.5
-
Bandwidth (kHz):
-
1-500
-
Dynamic range (dB):
-
146

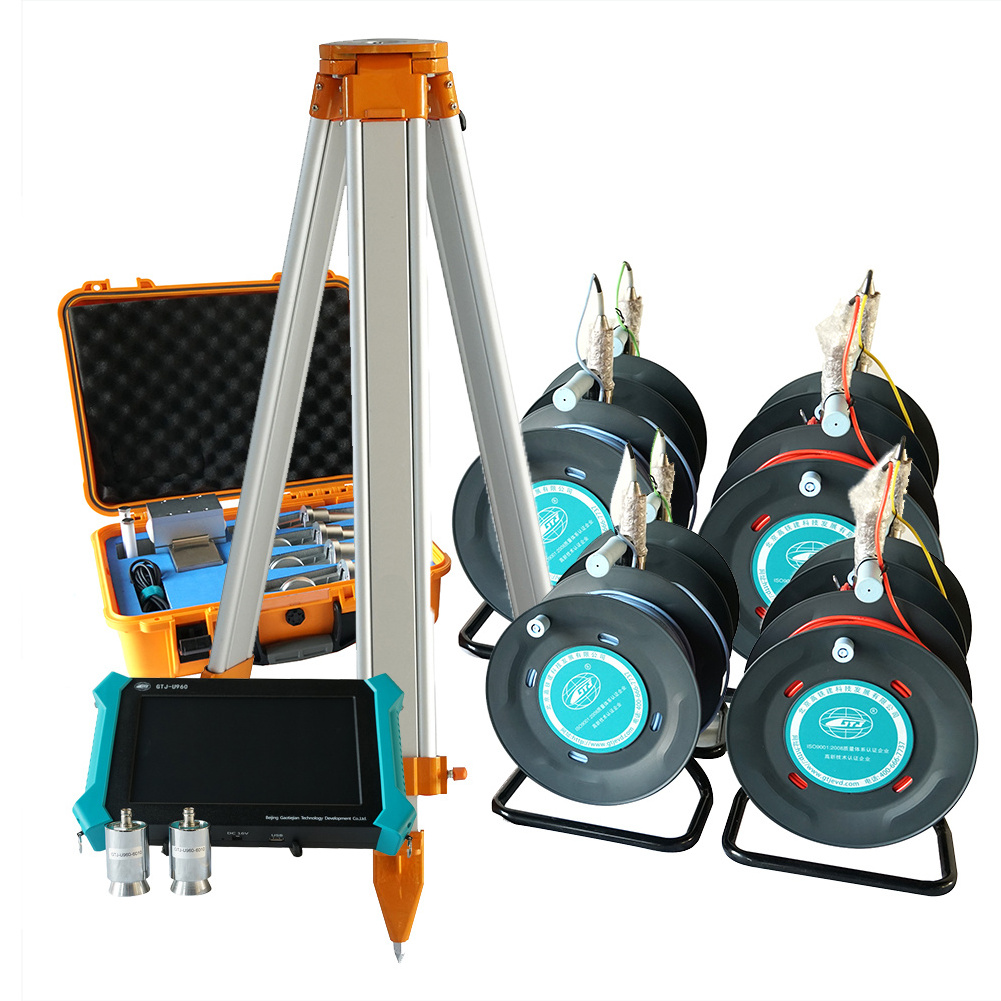

Cross Hole Ultrasonic Monitor 4 Channels Borehole Logging Equipment
U960Non-metallic ultrasonic detector (multi-tube measuring pile)Ultrasonic transmission method for pile integrity testing;Structural concrete compressive strength, crack depth, crack width and defect detection;Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
Product features
- Newly upgraded wireless cloud transmission function;
- With stable performance and powerful functions, it is the best choice for users with diverse needs such as engineering inspection, teaching and scientific research;
- It integrates five functions of pile, strength measurement, defect measurement, sounding and width measurement.
- Full touch screen operation, simple, convenient, stable and reliable;
- Multichannel automatic acquisition, automatic recording of high harmony time waveform;
- The deep recording wheel adopts dustproof and waterproof design.
- Large memory capacity, working time up to 10 hours or more
- It can directly connect the digital rebound probe to the ultrasonic rebound comprehensive method for measuring strength;
- U disk dump data, support software upgrade through U disk;
- The special analysis software has powerful functions, data analysis and processing, report generation and report printing can be easily completed.
- The transducer spool is designed with a current collecting ring, and the signal cable is retractable to prevent the cable from being twisted.
| Model | U960 | ||
| Display mode |
10.1 inch, high brightness, TFT color LCD capacitive screen |
||
| Storage mode |
Built-in electronic hard disk (≥ 8GB) + large capacity U disk |
||
| Scanning speed | ≥20 cycles/sec | ||
| Trigger method |
4 channels |
||
| Sampling interval |
0.05-409.6 Multistage Options |
||
| Transmit voltage |
65, 250 , 500 , 1000Four gears adjustable |
||
| Dynamic range | 146 | ||
| Gain accuracy | 0.5dB | ||
| Transmit pulse width | 0.05~409.6 continuously adjustable |
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
