Quick Details
-
Item:
-
Foundation Piling
-
Product name:
-
Swivel Joint
-
Model:
-
25T / 30T /35T
-
Brand:
-
JTHL
-
Rig Model:
-
Middle type rig
-
Abrasion resistance:
-
Strong
-
Drilling depth:
-
20-120m
-
Certification:
-
ISO9001 & Solo patents
-
Business type:
-
Factory direct
-
Colour:
-
yellow or other
Quick Details
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
JTHL kelly bar
-
Item:
-
Foundation Piling
-
Product name:
-
Swivel Joint
-
Model:
-
25T / 30T /35T
-
Brand:
-
JTHL
-
Rig Model:
-
Middle type rig
-
Abrasion resistance:
-
Strong
-
Drilling depth:
-
20-120m
-
Certification:
-
ISO9001 & Solo patents
-
Business type:
-
Factory direct
-
Colour:
-
yellow or other
Product Description

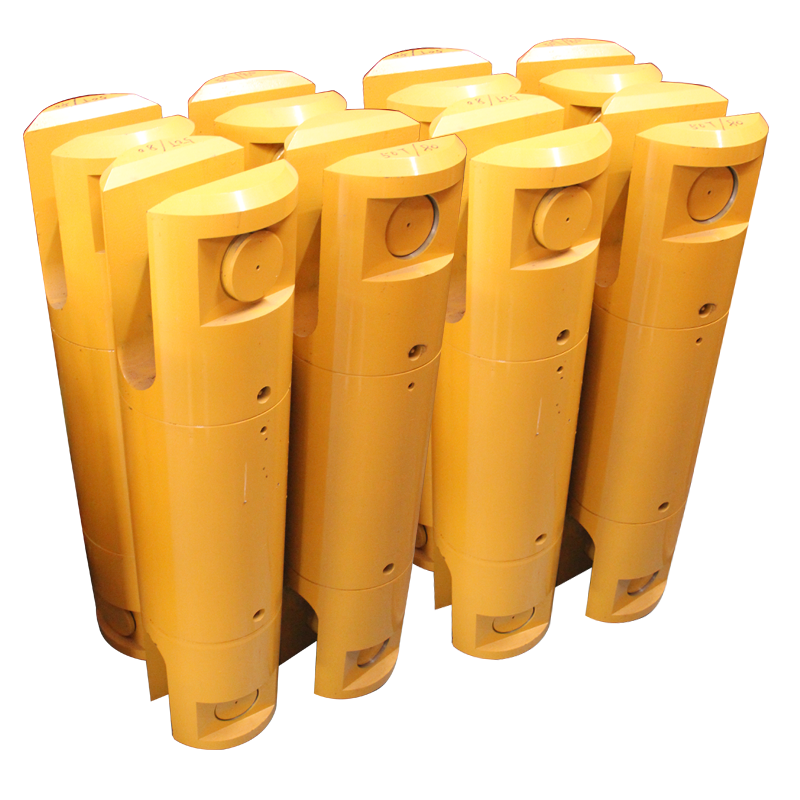

Swivel Joint Series
1. Swivel is made of metal junction structure, the upper and lower joint part, intermediates and other parts are completely made of high quality forged alloy steel. Going through strict heat treatment after roughing process, then adopts refined
processing, which make the swivel with perfect comprehensive mechanical property, strong wear-resistant and long
2. The inner bearing parts adopt imported bearings, SKF, FAG, excellent performance and long
3. The sealing elements are completely made of imported seal, NOK, which make it integrates anticorrosion, not easy aging and good sealing property，make sure the oil in the inner cavity is not easy to leak, and the peripheral mud sundries cannot enter the inner cavity of bearing easily, so as to ensure the normal operation of the bearing.
processing, which make the swivel with perfect comprehensive mechanical property, strong wear-resistant and long
2. The inner bearing parts adopt imported bearings, SKF, FAG, excellent performance and long
3. The sealing elements are completely made of imported seal, NOK, which make it integrates anticorrosion, not easy aging and good sealing property，make sure the oil in the inner cavity is not easy to leak, and the peripheral mud sundries cannot enter the inner cavity of bearing easily, so as to ensure the normal operation of the bearing.
|
|
基本尺寸 Standard Dimension
|
|
|
|
|
|
|
|
|||||||
|
型号
Model |
D1
|
D2
|
D3
|
A
|
B
|
L1
|
提升拉力 KN Pull Power
|
|
|||||||
|
JT20
|
¢120
|
¢40
|
¢40
|
43
|
43
|
460
|
15-25
|
|
|||||||
|
JT30
|
¢170
|
¢55
|
¢55
|
57
|
57
|
640
|
25-35
|
|
|||||||
|
JT40
|
¢200
|
¢60¢80
|
¢60¢80
|
67
|
67
|
780
|
35-45
|
|
|||||||
Rotary Piling Rig Spares
Piling rig sapres and kelly bar spares
Hydraulic Motor ;reducer;power shaft ;friction plate; gear ring
Kelly guide ;kelly bar bearing ; damping spring ;swivel joint;water plate;terminal joint.
