Quick Details
-
Brand Name:
-
SHANTUI
-
Dimension(Long * Breadth * High):
-
6880x4130x3840
-
After-sales Service Provided:
-
Overseas third-party support available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Engine:
-
NTA855-C360S10
-
Attachment:
-
Single Ripper/Three-shank Ripper
-
gross power(kw/rpm):
-
257/345/2000
-
Net power(kw/rpm):
-
235/320/2000
-
Blade type:
-
Straight tilt
-
Dozing capacity:
-
10m3
-
Max drop below ground of blade:
-
560/630/560
-
Lift height of blade:
-
1590
-
Number of track rollers(each side):
-
7
Quick Details
-
Machine Weight:
-
37200
-
Dozing Capacity:
-
4.5m³
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SHANTUI
-
Dimension(Long * Breadth * High):
-
6880x4130x3840
-
After-sales Service Provided:
-
Overseas third-party support available, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
-
Engine:
-
NTA855-C360S10
-
Attachment:
-
Single Ripper/Three-shank Ripper
-
gross power(kw/rpm):
-
257/345/2000
-
Net power(kw/rpm):
-
235/320/2000
-
Blade type:
-
Straight tilt
-
Dozing capacity:
-
10m3
-
Max drop below ground of blade:
-
560/630/560
-
Lift height of blade:
-
1590
-
Number of track rollers(each side):
-
7

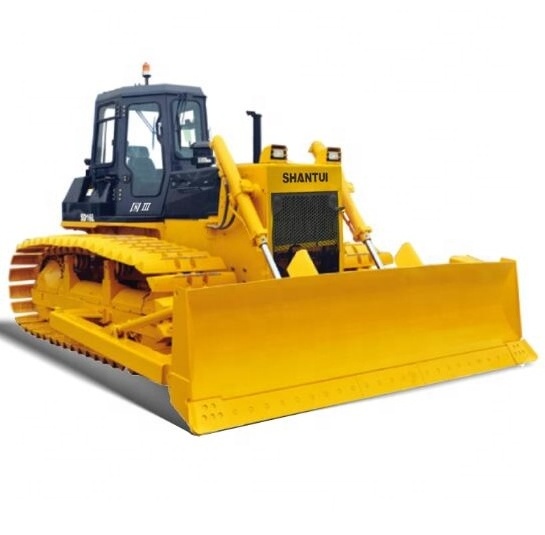

sand wind and high air temperature desert type bulldozer SD32D 320HP dozer
Features
Based on the SD32 bulldozer, the SD32D desert bulldozer was developed by Shantui for desert operation. The SD32D is equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, providing reliable performance and convenient and flexible operation. Specially fitted with a desert radiator and air filter, the SD32D is well adapted to the desert operations.
SD32D desert bulldozer is researched and developed independently on the basis of SD32 standard bulldozer in response to the demands of desert working conditions.
Engine power/speed:235kW/2000rpm
Operating weight of whole machine: 37200kg
Main Features
Chongfa NTAA855-C360S10 engine is equipped with exhaust gas turbocharger, featuring strong power and high efficiency and energy-saving, and can work normally even in the highlands as high as 3,600m. Depending on the customers' demands, the option and Weichai engines are available.
The high reliability power shift transmission, the stable hydraulic torque converter, and two-stage spur gear final drive feature high power transmission capacity and efficiency and high productivity.
The independent engine water tank, the chassis oil cooler, and the water-air intercooler integrated in the Chongfa engine provide prominent cooling performance and simple maintenance operations to guarantee the continuous working of the machine.
The full box-type main frame with application of high performance materials and high strength castings features high carrying capacity against impact load and bending moment to support the continuous high-strength working of machine under severe working condition and the high quality welds guarantee the life cycle of the main frame.
The low-drive final drive can provide powerful drive force and efficient gradeability. Shantui's crawler chassis has reached the international advanced level in process level and can adapt to various complicated working conditions, featuring high reliability and carrying capacity.
The standard straight tilting blade features powerful cutting force and the single-shank and three-shank rippers of adjustable penetrating angle can be used for the ripping of clay and frozen earth as well as the stripping of hard working faces.
Our Customers
Packaging & Shipping
Packing: The bulldozer are in nude, standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
Shipping: We will ship it through bulk carrier or RORO ship.
