Quick Details
-
Brand Name:
-
G5
-
Model Number:
-
E-012-OPS-S-E1-N
-
Warranty:
-
12 Months
-
Product Name:
-
Wall-Mounted Automatic Digital Tyre Inflator
-
Application:
-
Car Motorcycle Scooter Bicycle Bike Tire
-
Suit for:
-
Motorcycle Bicycle Bike
-
Input Voltage:
-
100-240Vac
-
work temperature:
-
-20℃~70℃
-
Material:
-
Plastic+Metal
-
Certification:
-
CE
-
air pressure:
-
0-150PSI
-
display:
-
Backlight LCD Display
Quick Details
-
Car Fitment:
-
bmw
-
Size:
-
25*23*12cm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
G5
-
Model Number:
-
E-012-OPS-S-E1-N
-
Warranty:
-
12 Months
-
Product Name:
-
Wall-Mounted Automatic Digital Tyre Inflator
-
Application:
-
Car Motorcycle Scooter Bicycle Bike Tire
-
Suit for:
-
Motorcycle Bicycle Bike
-
Input Voltage:
-
100-240Vac
-
work temperature:
-
-20℃~70℃
-
Material:
-
Plastic+Metal
-
Certification:
-
CE
-
air pressure:
-
0-150PSI
-
display:
-
Backlight LCD Display
Product Description
Specification

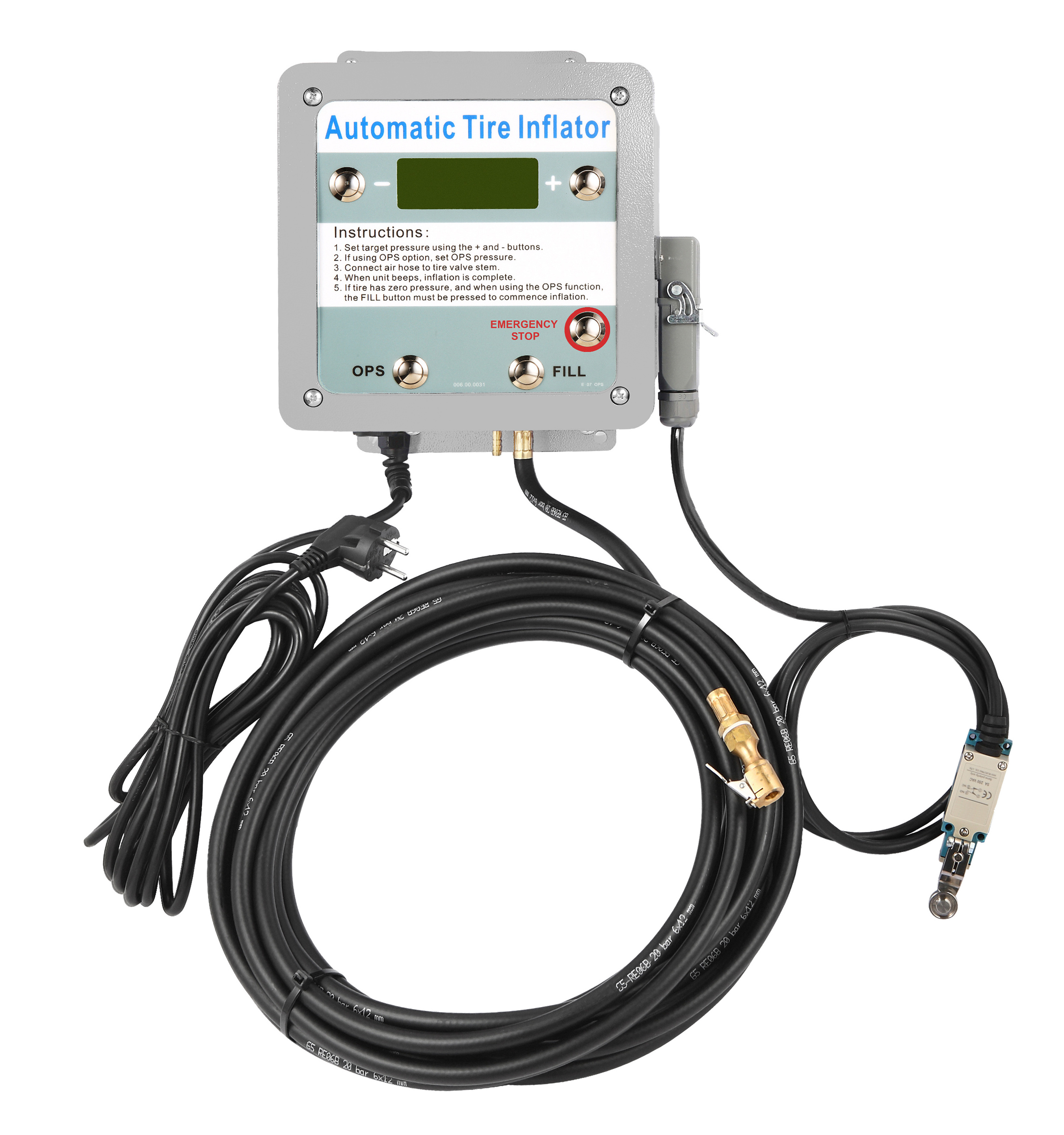

| E-012-OPS-S-E1-N Wall-Mounted Automatic Digital Tyre Inflator for Safety Inflation Cage(Indoor) | |
| Main Feature | |
| 1. 174PSI/12bar/1200kPa output pressure make the unit a fit for almost any size automotive service facility ** | |
| 2. Rugged and durable diecast aluminium enclosure for inflator head | |
| 3. With safety switch: Open the cage door, tire inflation is paused | |
| 4. With emergency stop switch: Press the switch, tire inflation is stopped and tire pressure is discharged. | |
| 5. Suit for: Car, Light Truck, Bus * | |
| Technical Data | |
| Dimensions (Height*Width*Depth) | 290mm*230mm*120mm |
| 11.4"*9.1"*4.7" | |
| Net Weight | 4kg/8.8lbs |
| Gross Weight | 7kg/15.4lbs |
| Packing Size (Height*Width*Depth) | 170mm*500mm*290mm |
| 6.7"*19.7"*11.4" | |
| Power Requirement | 100-240Vac 50/60Hz |
| Power Consumption | 23VA |
| Operating Temperature Range | -20°C/-4°F to 70°C/158°F |
| Max Inlet Air/Nitrogen Supply | 217PSI /15bar /1500kPa |
| Operating Range | 5-174PSI/0.3-12bar/35-1200kPa |
| Over Pressure Setting Range | 0-29PSI/0-2.0bar/0-200kPa |
| Accuracy | ±1PSI/0.07bar/7kPa |
| Resolution | 1PSI/0.1bar/5kPa |
| Units of Measurement | PSI/bar/kPa |
| Specification | |
| 1. Adjustable over pressure setting (OPS) | |
| 2. Auto-start inflation | |
| 3. Automatic zero drift adjustment | |
| 4. Remain at last setting | |
| 5. Comprehensive diagnostics and error reporting | |
| 6. Audible and visual end of the cycle signal indicators | |
| 7. Large backlight LCD display | |
| 8. Vandal resistant mechanical switches | |
| 9. 1 Nos.*10M/32.8ft standard hose with single clip-on open type chuck | |
